Heavy Type High Speed & Precision Reinforcement Wire Straightening and Cutting Machine
Xuchang Hongshuo Machinery Co., Ltd.- Type：Balance Roller Straightening Machine
- Usage：Wire, Bar
Base Info
- Model NO.：YGT series
- Voltage：380V
- Automatic Grade：Automatic
- Principle：Small Deformation
- Certification：ISO9001, CE
- Warranty：24 Months
- Customized：Customized
- Condition：New
- Transport Package：Wooden Case or Suitable for Sea Shipping
- Specification：To straighten and cut the wire coil rods
- Trademark：Hongshuo
- Origin：China
- HS Code：8462211000
- Production Capacity：1000 Sets Per Month
Description
Straighten Diameter 4-10mm
round steel 4-12mm
round steel 4-12mm
round steel 5-14mm
round steel 6-18mm
round steel 4-8mm
ribbed steel 4-10mm
ribbed steel 4-10mm
ribbed steel 5-12mm
ribbed steel 6-16mm
ribbed steel Cutting Length 200mm-
8000mm
300-
8000mm 300mm-
8400mm
300mm-
8400mm
1500mm-
9500m
Cutting Error ±1cm ±1cm ±1cm ±1cm ±1cm Straighten Speed 45m/min 45m/min 45m/55m
/min 55m/min 60-80m
/min Straighten
Motor 7.5kw 7.5kw 7.5kw/9kw 11kw 15kw L*W*H (mm) 1400×650×750 1900×840×900 2000×640×1300 2900×640×1300 4000×650×1200 Weight 360kg 560kg 800kg 1000kg 1500kg

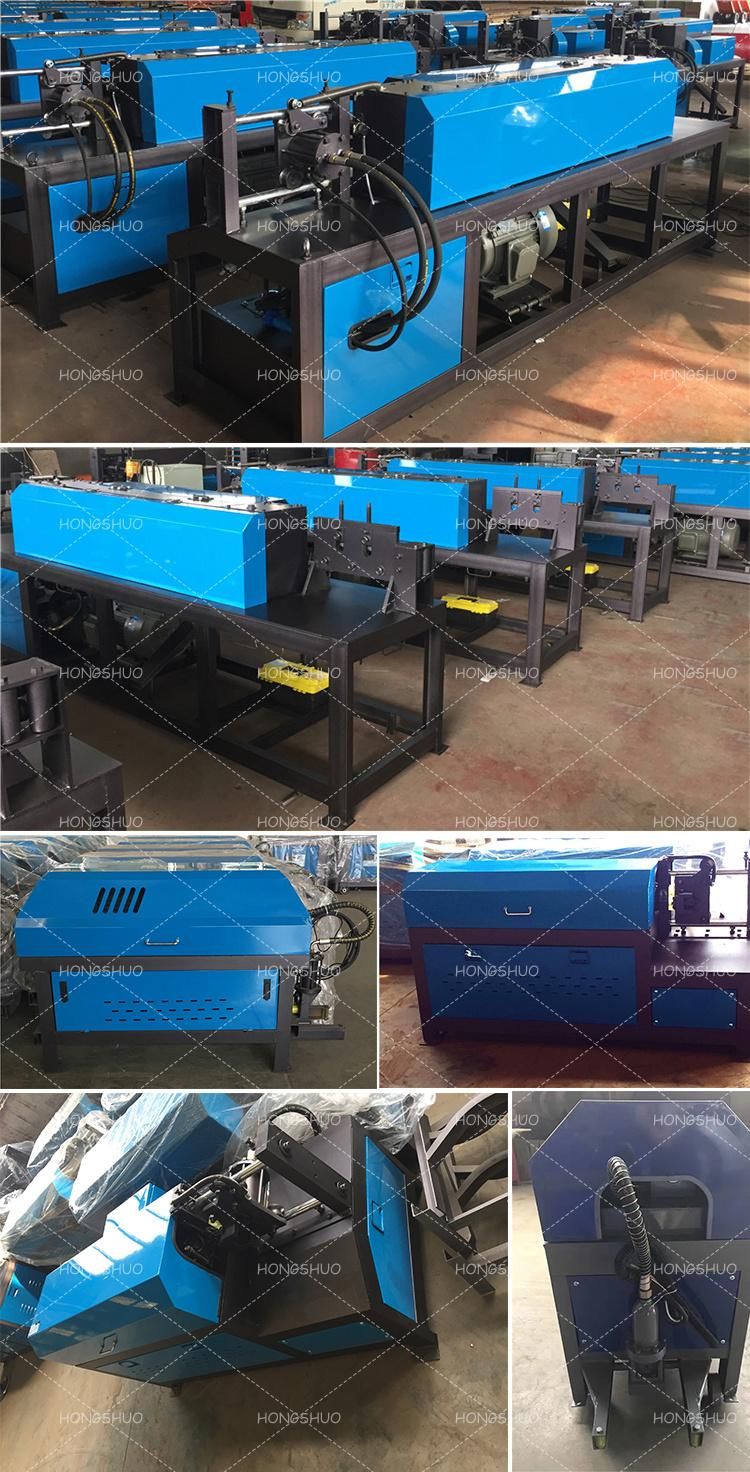

Machine Photos:
Working Principle:
First, the speed is increased by the motor through the belt drive, so that the straightening cylinder rotates at a high speed, the steel bar passing through the straightening cylinder is straightened, and the rust on the surface of the steel bar is removed by the straightening die.
Highlight Advantages:
1.Using microcomputer control, automatic straightening, automatic sizing, and automatic cut-off;
2. "Fool" easy operation, employees who understand "123" can use it immediately.
3. Enter the length and quantity of multiple batches at the same time, and the computer will store it in memory.
4. Hydraulic cut-off, much quieter.
5. It occupies a small area and easy to move and install.
6. Smooth operation, low failure rate, easy maintenance, and cheap accessories.

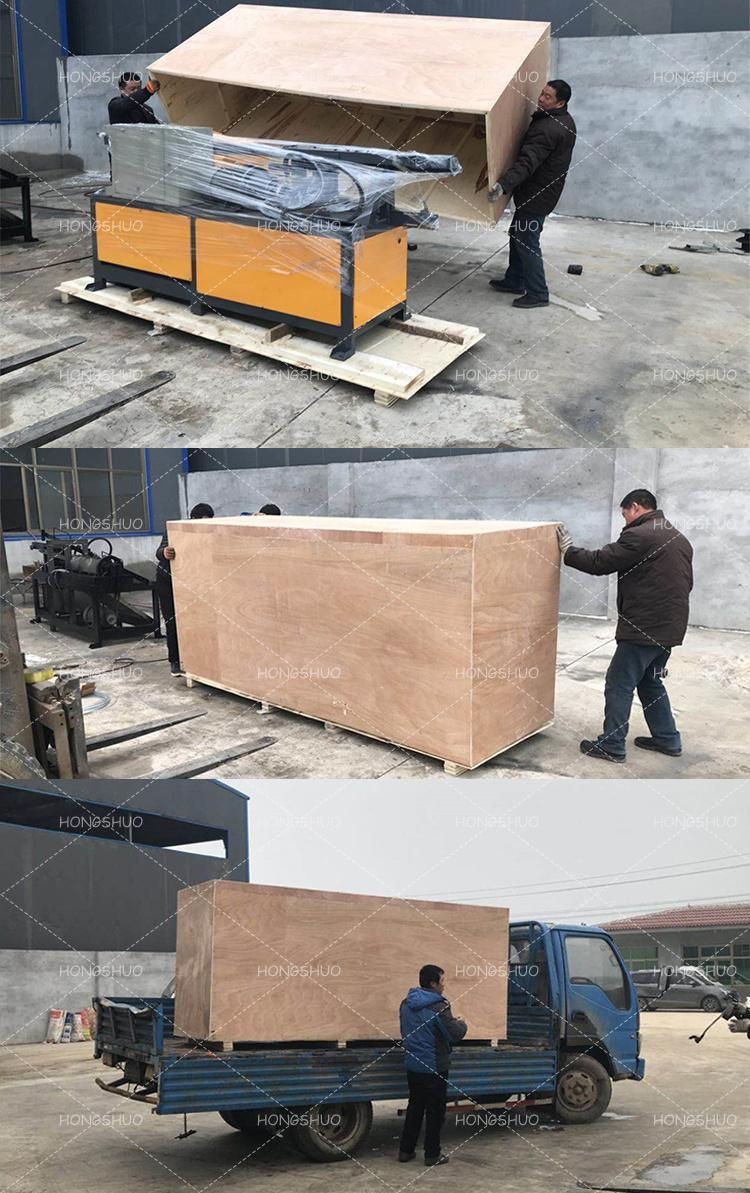

Packing & Loading:
Scope of Application:
The steel bar straightening machine has the characteristics of reasonable structure, convenient operation, safe and reliable, and suitable for the straightening of chicken cages, rabbit cages, construction mesh, various welding wires, Shule board wire cutting and special-shaped mesh wires etc.
FAQ:
--1--Q: Are you trading company or manufacturer ?
A: We are manufacturer. Xuchang Hongshuo Machinery Co.,Ltd.
--2--Q: Can i use this machine to process different size and type of steel bar?
A: Yes, both smooth and ribbed steel bar can be processed.
--3--Q: How to choose a suitable machine ?
A: Please kindly let us know which kind raw materials you want to process as well as the diameter of the material, we will recommend the suitable machine for you.
--4--Q: How long is your delivery time?
A: Generally 7 days if in stock. Or 10days if out of stock.
--5--Q: How to pack the machines?
A: For the packaging, usually use the export standard wooden box or whole container.
--6--Q: Can I visit your factory ?
A: Yes, welcome to come at any time.
--7--Q: What's the payment terms ?
A: 30% advance payment by TT, and balance should be paid before shipment.
