• Model NO.：metal roll forming machine
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Place of Origin：Zhejiang, China (Mainland)
• Brand Name：Zhongyuan
• Certificate：SGS, BV, CE
• Power：22kw
• Suitable Raw Material：Color Steel Sheet or Galvanized Steel Sheet
• Control System：Mitsubishi PLC
• Forming Speed：About 12 M,Min
• Total Weight：About 15000kg
• Whole Line′s Dimension：About 26m*1.8m* 1.6m (Depend on Final Design)
• Transport Package：1*40gp+1*20 Gp
• Specification：CE SGS BV
• Trademark：zhongyuan
• Origin：Zhejiang, China
• HS Code：84552210
• Production Capacity：5sets,Month

Basic Info.

Model NO. metal roll forming machine Customized Customized Advantage Use Widely Condition New Place of Origin Zhejiang, China (Mainland) Brand Name Zhongyuan Certificate SGS, BV, CE Power 22kw Suitable Raw Material Color Steel Sheet or Galvanized Steel Sheet Control System Mitsubishi PLC Forming Speed About 12 M/Min Total Weight About 15000kg Whole Line′s Dimension About 26m*1.8m* 1.6m (Depend on Final Design) Transport Package 1*40gp+1*20 Gp Specification CE SGS BV Trademark zhongyuan Origin Zhejiang, China HS Code 84552210 Production Capacity 5sets/Month

Product Description

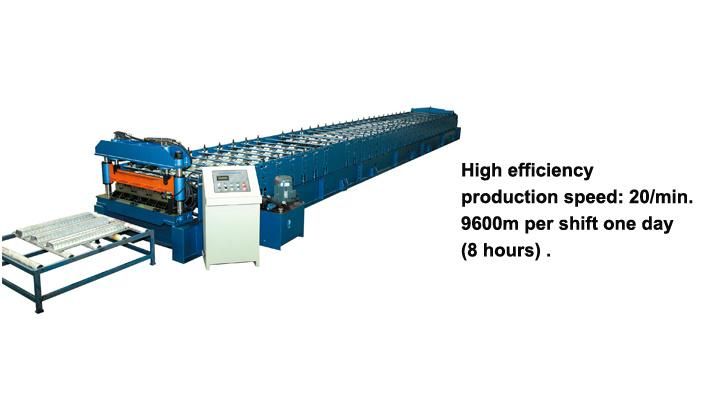

Foor Decking metal roll forming machine

Why choose this machine?
1. Certificate: ISO 9001, CE,
2. Lifetime services
3. 82mm diameter solid steel shaft. Roller cover with 0.05mm chrome; Lifetime>10years.
4. Introduced Mitsubishi PLC with touch screen to machine controll system.
5. One worker operation (minimum)
6. Heat treatment:Cutting blade.  Quenched treatment: Cr12 mould steel cutter
7. Product cut-to-length.
8.Technician overseas installing and training available








Main technical parameters:


Suitable material	Color steel sheet or galvanized steel sheet
Thickness of raw material	0.8-1.2mm
Forming speed	About 15-20m/min
Power Requirement Main motor power	18.5 Kw (Depend on final design)
Hydraulic station power	5.5Kw (Depend on final design)
Uncoilers loading capacity max. Capacity	5000kgs (can increased to10T)
Controlling system	Mitsubishi PLC & Converter
Voltage	380V/3/phase/50Hz or as per the customer's requirement
Machines size	About 16m× 1.5m× 1.6m (Depend on final design)
Net machine's weight	About 16000kgs

WHY US?
We care about QUALITY
1. ISO, CE certificate
2. Electric elements: Mitsubishi PLC & transducer from Japan.

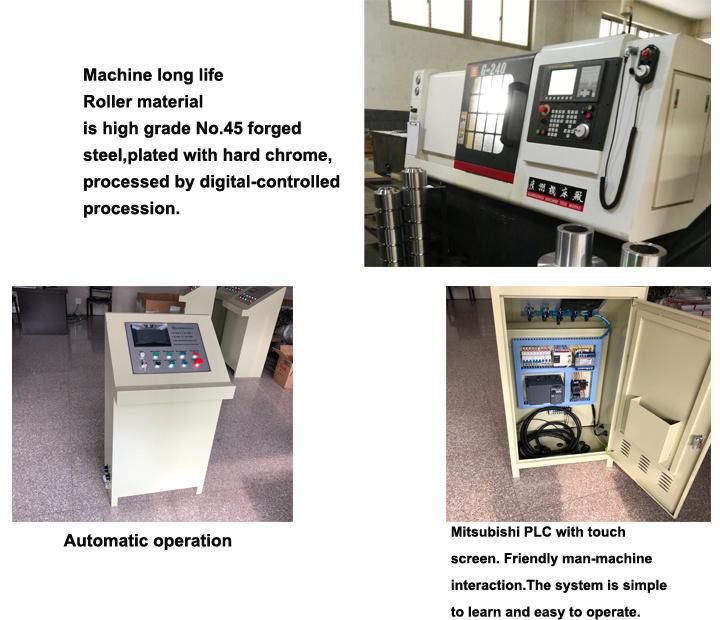

Rollers: High grade No. 45 forged steel. Plated with 0.05mm hard chrome
Active shaft: High grade No. 45 carbon wrought steel. Well resisting.
Cutter blade: Cr12 mould steel with quenched treatment

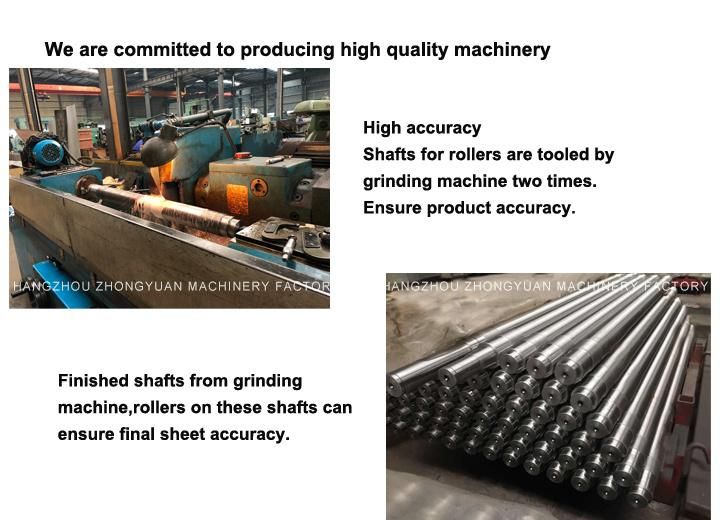

Precision: shafts are tooled by grinding machine at least twice. Rollers are CNC processed.





We care about USER EXPERIENCE
Controller is the "CPU" of forming machine. We choose Mitsubishi PLC from Japan.
With touch screen mode, let your workers enjoy the easy operation;
With auto working mode, let your workers free their hands!

We care about YOUR CONCERN
 Delivery: in only 5-8 weeks
 Container was sealed
 Machine installing and training: engineer overseas sevices
 Inspecting and testing machine: before shiping

We care about the "SPECIAL"
Can not find the machine you need? Why not customize it!
We have: 12 years experience in making roll forming machine
                    15 years experience engineers

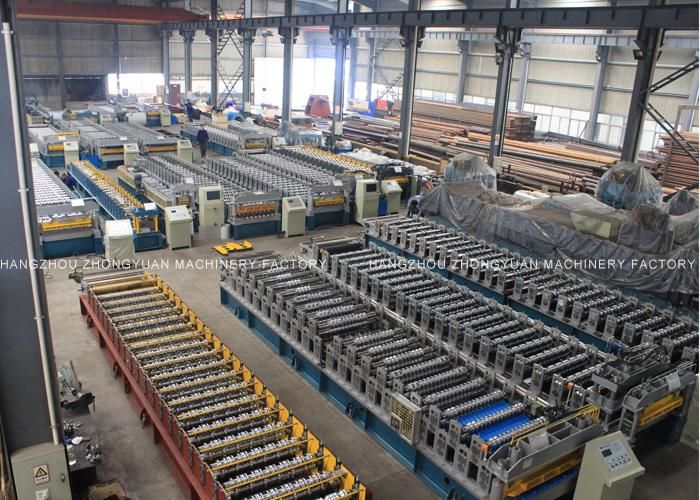

About us
We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.
1.  Capacity: 12-15 sets/month
2.  Delivery: in only 5-8 weeks for urgent order
3.  Have our own tool center. 12 sets CNC machines.

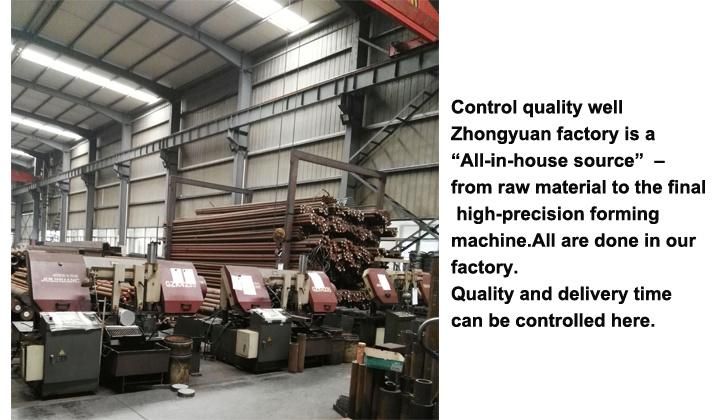

4. Zhongyuan is a "All-in-house source"
     --from raw material to the final high-precision forming machine. We have our precise tooling center.
5.  You can rely on our team!
      We have engineers with experience more than 15 years in metal forming industry.



Get Free:
"Send" below get profile drawing & design technical support by our 15 year experience technicians FOR FREE!
