• Model NO.：BC60100
• Motor Power：7.5kw
• Overall Dimensions：1390X860X1455mm
• Transport Package：Plyw,Case
• Specification：CE, ISO9001
• Trademark：UNI-TECH
• Origin：China
• HS Code：84612010
• Production Capacity：200PCS,Month

Basic Info.

Model NO. BC60100 Motor Power 7.5kw Overall Dimensions 1390X860X1455mm Transport Package Plyw/Case Specification CE, ISO9001 Trademark UNI-TECH Origin China HS Code 84612010 Production Capacity 200PCS/Month

Product Description

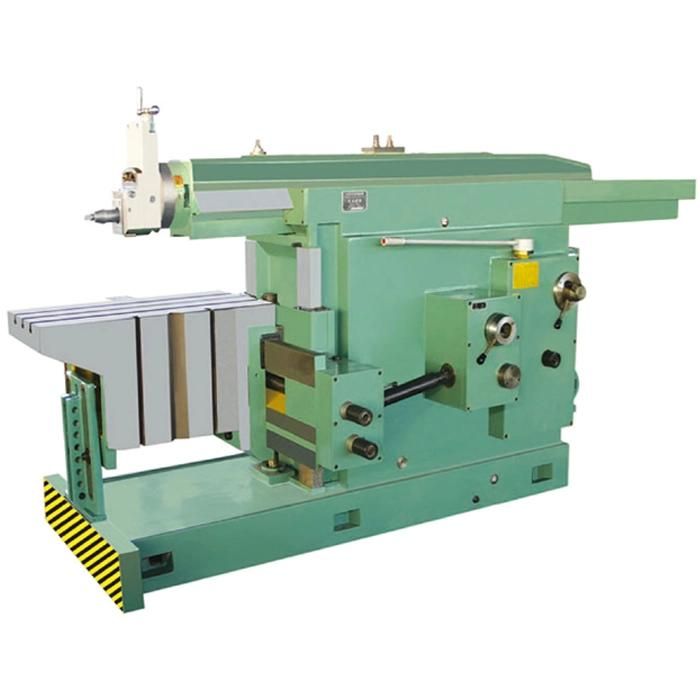

China hot sale Mechanical Shaper(BC60100)



Advantages:
1. Planner bench can rotate
2. Feed system use cam mechanism to adjust feed rate
3. With cutting system overload safety device

Features
Shaper is mainly used for planning the plane on the small and medium-size workpieces in small batch production of a single piece, forming the surface and grooves. Its five characteristics:

1. Planner bench can turing angle of the table with horizontal and lift moving mechanism; For planning the inclined plane, thereby expanding the scope of use.

2. Planner feed system uses a cam mechanism to adjust the feed rate. It is very convenient to change the feeding rate.

3. Planer equipped with cutting system overload safety angencies. Once occur careless operation, external influences or cutting overload, it will shift to self-skid, and non-sestructive the machine.

4. Gap between the ran and the bed rail, the speed gear and the main sliding guide surface, will be lubricated by the pump shot oil.

5. Planner is equipped with a clutch and parking brake device. So do not need to cut off the power when changing the speed, stard the machine or braking the machine.

Specification	B635A	B6050	BC6063	BC6070	BC60100
Max. cutting length	350mm	500mm	630mm	700mm	1000mm
Max. horizontal travel of table	400mm	500mm	630mm	630mm	800mm
Max. distance from ram bottom to table	330mm	370mm	385mm	420mm	380mm
Max. table vertical travel	270mm	300mm	360mm	320mm	320mm
Max. vertical travel of tool carrier	110mm	110mm	120mm	125mm	160mm
Number of ram strokes per minute	32,50,80,125	15,24,37,51,64, 80,102,126,158	14,20,28, 40,56,80	11,20,38, 52,72	8,11,16,23, 32,45,64,90
MOTOR POWER	1.5kw	4kw	3kw	4kw	7.5kw
Overall dimensions (LxWxH) mm	1390x860x1455	1943x1173x1533	2265x1225x1480	2550x1400x1760	3507x1455x1761
