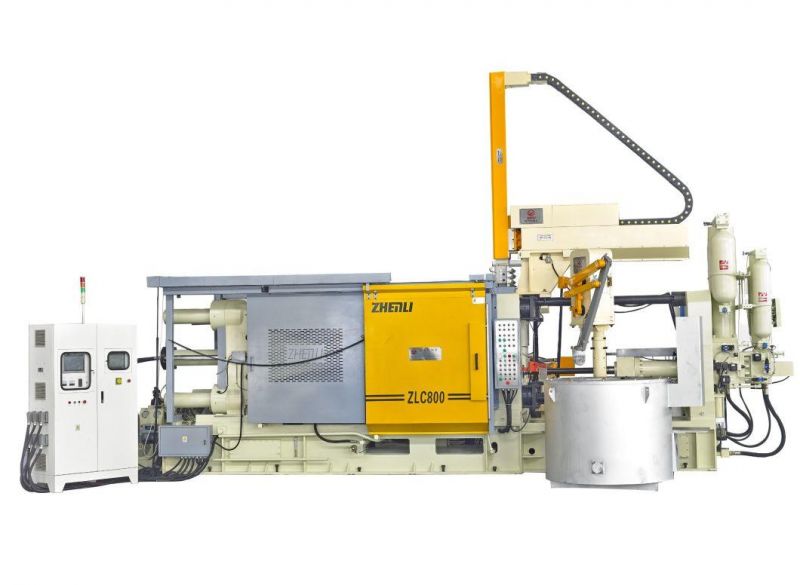

800t Cold Chamber Die Casting Machine Price

Jiangmen Zhenli Machinery Co., Ltd.
  • Type:Cold Chamber Die Casting Machine
  • Structure:PLC
  • Machine Materia:Cast Iron
  • Weight:38500kg
  • Power(W):45kw
  • Oil Tank Capacity:1300L

Base Info

  • Model NO.:ZLC-800T
  • Machine Valve:Import From Yuken, Japan
  • Running Area:a Wide Varity of Casting Products
  • Transport Package:Wooden Plate
  • Specification:8600*2600*3250mm
  • Trademark:ZHENLI
  • Origin:Guangdong, China
  • HS Code:8454301000
  • Production Capacity:100 Pieces , Year


Basic Info.

Model NO. ZLC-800T Machine Valve Import From Yuken, Japan Running Area a Wide Varity of Casting Products Transport Package Wooden Plate Specification 8600*2600*3250mm Trademark ZHENLI Origin Guangdong, China HS Code 8454301000 Production Capacity 100 Pieces / Year

Product Description

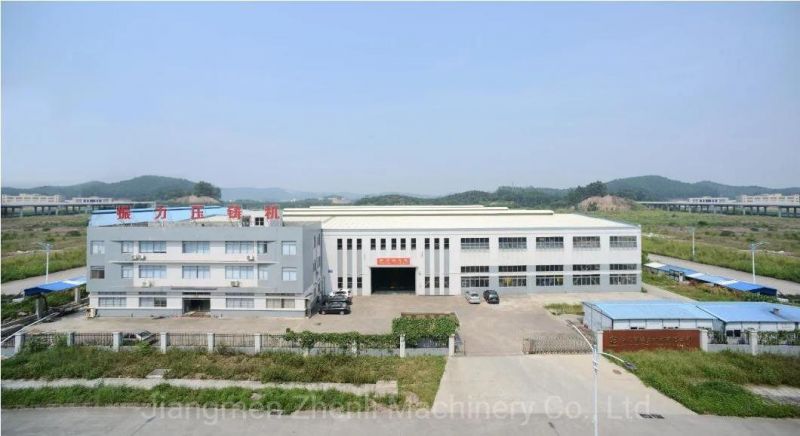

800t Cold Chamber Die Casting Machine PriceJiangmen Zhenli Machinery Co., Ltd.Located in Jiangsha Industrial District of Jiangmen City, China's famous motorcycle production base, Jiangmen Zhenli Machinery Co.,Ltd is a high-tech company specializing in R&D, design, production, and after-sale services. Since its foundation in 2002,after a decade's development and dedication, Zhenli has developed into a modern factory with imported CNC machining center, gantry milling, planer, grinder,and other advanced equipment. The main products of Zhenli include "ZL"series of hot chamber die casting machines, "ZLC"series of cold chamber die casting machines, servo die casting machines, real-time control die casting machines, magnesium alloy die casting machines, and peripherals,etc.800t Cold Chamber Die Casting Machine Price

Clamping: durable and efficient clamping mechanism
1.The hinge clamping mechanism of the double toggle machine, the high-strength ductile iron template is equipped with CNC precision processing, which is strong and durable.
2.High tensile alloy steel guide post, durable and reliable.
3.High-precision electronic ruler position detection, precise control of the clamping stroke.
4.The mechanical toggle lubricates automatically to improve wear resistance.
5.The hydraulic gear adjustment mechanism is stable.
6.Independently adjustable mold opening and pressure preparation system (need to purchase and customize).

The injection system is equipped with large diameter logic valves and precise flow control valves,improves injection
response,decreases oil pressure vibration and provides precise 4-stage shot adjustment.


Description for Electric & Hydraulic components

1.Siemens 200 control system with LED monitor(Germany).
2.Imported components are used for hydraulic units including YuKen (Japan), Rexroth(Germany) and Vickers (USA) to ensure the stability of  hydraulic system.
3.Hydraulic Pump is from Vickers (USA).

4.Sealing members are from Trelleborg(Sweden) and Fluorten (Italy).
5. Posts and columns are purchased from General Taiwan
Electric parts are purchased from France Schneider.

Standard Configuration :
Double-toggle lock mould structure, high strength spheroidal graphite iron casting plate.
Low pressure mold closing protection.
Mould adjustment device for gear train oil motor.
Concentrated automatic lubrication system.
Fast hydraulic ejector device and core pulling device.
4th level injection control system.
Independent piston 2-speed and pressure charging energy accumulator.
Hydraulic elevator sprue platform.
E-ruler control on mould opening and closing
Power saving high and low pressure twin pump hydraulic system.

Product Parameters

800t Cold Chamber Die Casting Machine Price
CLAMPING UNITLocking ForcekN8000
 Die Open Strokemm760
 Ejector ForcekN315
 Ejector Strokemm180
 Die Height(Min.-Max.)mm400-950
 Die Platen Size(H×V)mm1400×1438
 Space Between Tie Barsmm91910
INJECTION UNITShot Positionmm0,-250
 Shot Strockmm760
 Casting Force(intensify)kN680
 Plunger Diametermm80,90,100
 AI)Injection Weightkg7.1,9.0,11.2
 Casting PressureMPa135,106,86
 Casting Areacm²591,748,924
 40MPa)Casting Area Maxcm²2000
 Chamber Flange Diametermm200
 Chamber Flange Protrusionmm20
 Plunger Penetrationmm295
OTHERSMain Pump Driving MotorkW45
 Working PressureMPa14
 Oil Tank CapacityL1300
 Machine Dimensionsmm8602600×3250
 Lifting reference WeightKG38500


Q:Are you a manufacturer of a trade company?

A:We are a manufacturer and nd we have our own Export rights.


Q:If we don't know how many tons machine will be suitable for our products ,what we should do ?

A:It 's no proplem.You can send us the the weight ,size and the materials of your products and our professional master will recommend the most suitable machine with you .


Q:How is your delivery time?

A:Generally ,we can dilivery the machine within 15-30 days after receiving your advance payment.

But it also depends on the iterm and the quantity of your order.


Q:How about the payment terms?

A:Generally ,the 30% T/Tdeposite ,the balance 70% T/T before delivering the goods.


Q:How about your warranty and after-sales services?

A:We have one one year warranty for the machine .Our professional masters could overseas to help to install and debug the machine also providing free training until you have got the skill.

If any question and problems pls tell us with no hesitate.
