• Model NO.：S11
• Certification：CE
• Type：Sand Casting
• Type of Sand：Clay Sand(Green Sand)
• Use：Foundry
• Transport Package：Wooden Box
• Specification：CE ISO
• Trademark：bestech
• Origin：China
• Production Capacity：100 Sets Per Month

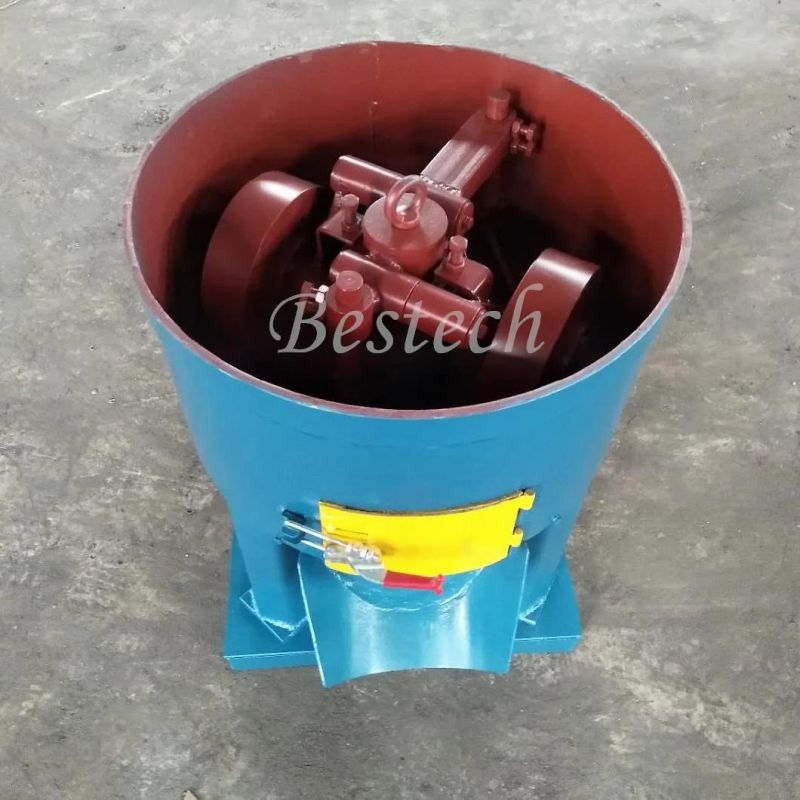

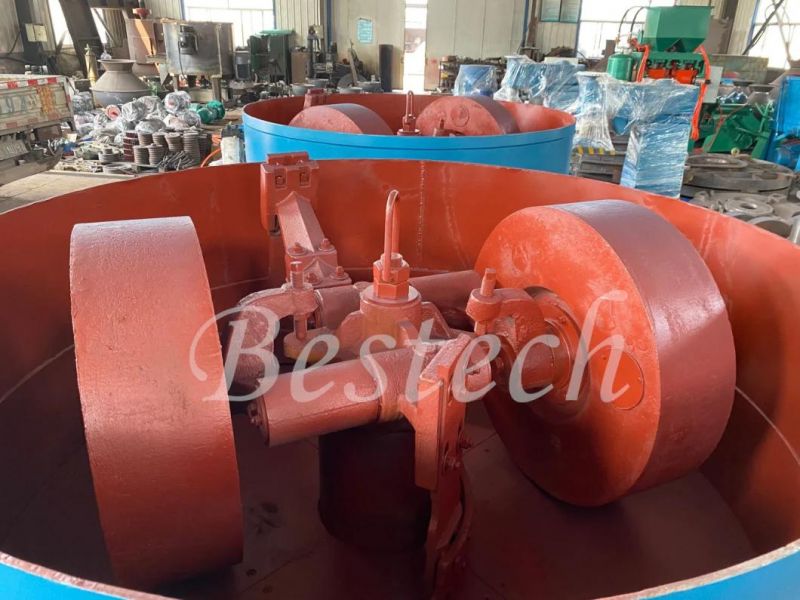

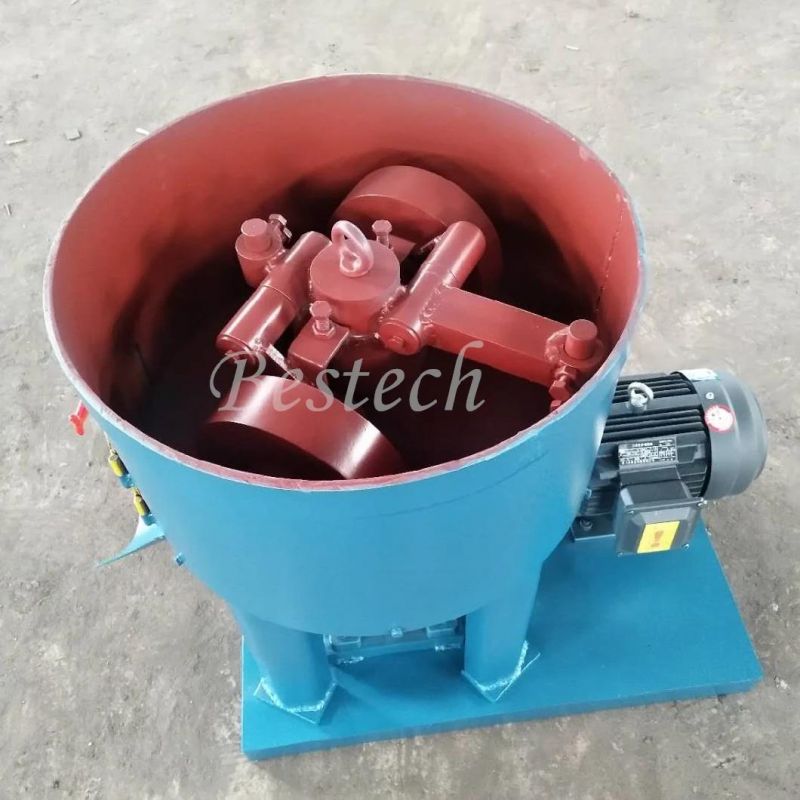

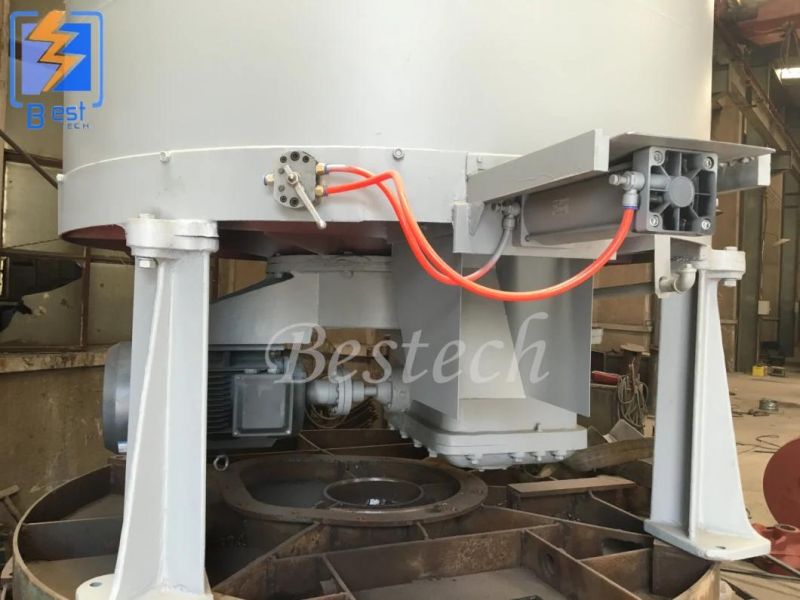

Foundry Clay Green Sand Mixer Ideally suited for:

Perfect homogenization of return sand, new sand and additives

Fast, complete distribution of the water addition to the mixer

Sufficient duration of the wet mixing phases

The bentonite is completely activated and forms a uniform coating on the sand grains

Bestech foundry bentonite sand mixers are service-friendly, low-wearing and energy-efficient:

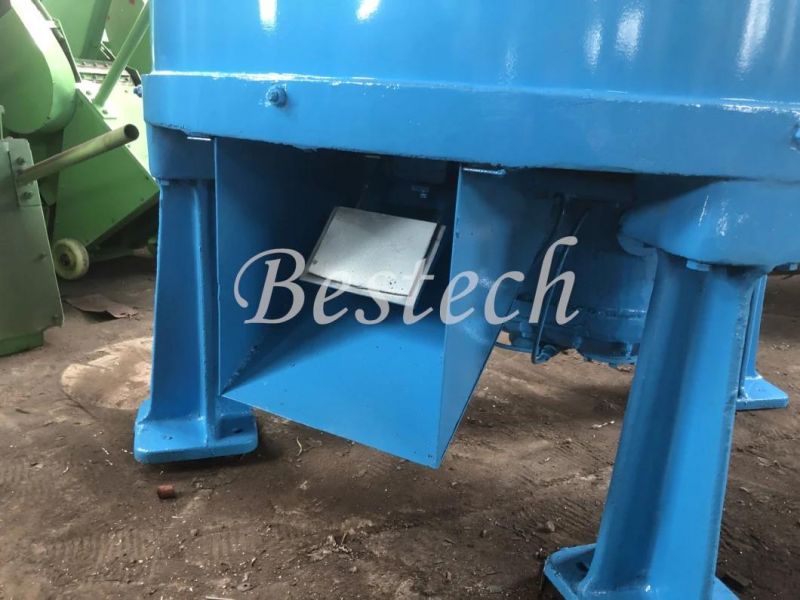

1.Large openings in the sand mixing pan provide easy access for maintenance

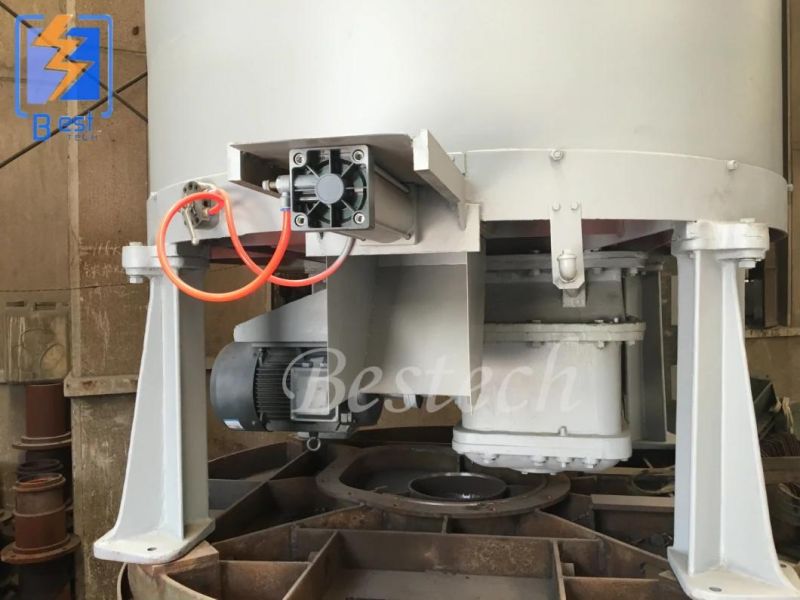

2.All of the major assemblies (drives and gear units) are located outside the sand mixing pan

3.Wear parts are easy to replace for the foundry bentonite sand mixer

4.A fully loaded foundry bentonite sand mixer can easily be restarted

5.Using a frequency inverter for motor control permits the energy input to be adjusted variably over the whole mixing cycle for shorter processing time, better molding sand properties and the potential for energy savings.

Technical Parameter Clay Green Sand Mixer

Type

Plate diameter(mm)

Plus the material(kg/s)

Productivity

(t/h)

Motor power(kw)

Spindle speed(rpm)

Single wheel pressure(N)

ApproximateWeight(kg)

S1105

500

20

0.1-0.2

1.5

35

0-10

80

S1106

600

40

0.3-0.5

2.2

35

0-10

100

S1108

800

80

0.8-1.2

3

35

0-60

350

S1110

1000

110

1.5-2.5

4

35

0-1100

900

S111A

1230

150

2-4

5.5

41

0-1100

1020

S1112

1225

150

3-5

4-6

35

0-1100

1237

S1113

1400

260

4-7

5-6

35

0-1200

1400

S1115

1500

350

5-6

11

25

0-1200

1900

S1116

1600

400

6-7

11

25

0-1200

2000

S114C

1820

500

7-8

15

25

0-5000

2600

S114D

1820

500

7-8

15

25

0-5000

2600

S1118C

1800

650

15

22

36

0-6000

5000

S1120J

2000

800

15-18

22

34

0-8000

5000

S1120D

2000

900

20

37

34

0-9000

6500

S1122

2200

1300

25

37

34

0-9000

7800

S1124

2400

1500

30

45

34

0-9000

8000
