• Model NO.：QC12K-16×3200
• Voltage：380V 50Hz 3phase
• Color：Customised

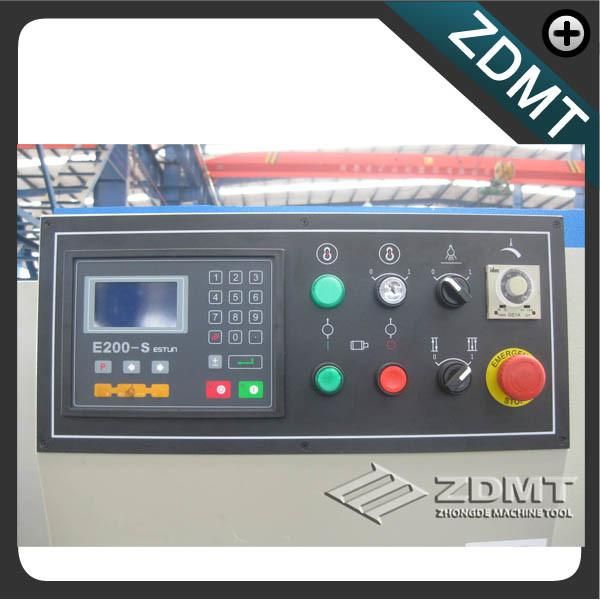

• CNC Controller：Estun E200-S
• Control Axis：Cut Times and Backgauge Position
• Programs：40 Programs 25 Step Per Program
• Backgauge Rage：20-800mm
• Weigth：13000kg

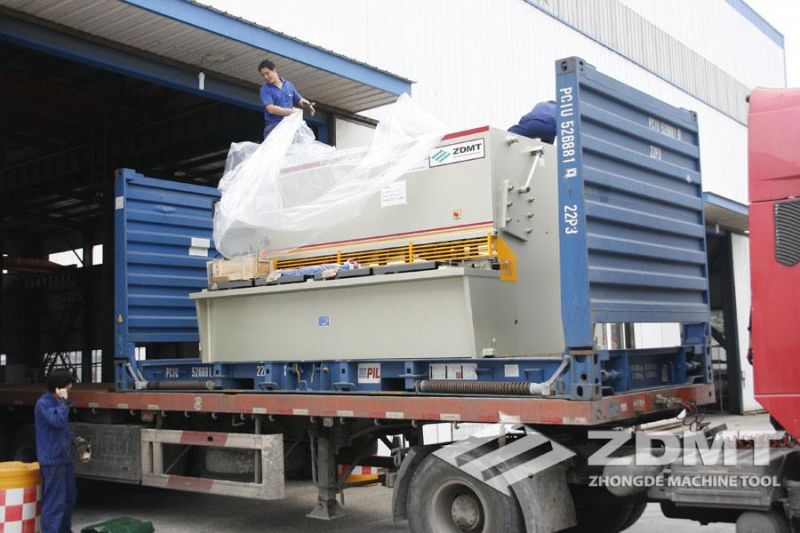

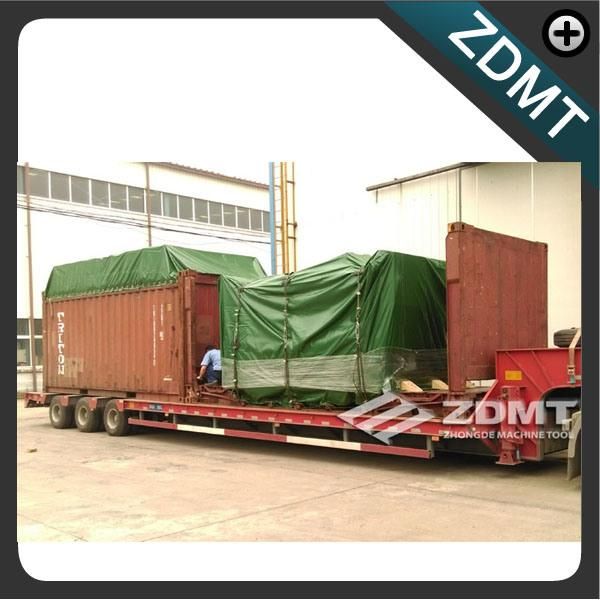

• Transport Package：Base Framed by Channel Steel and Plastic Bag
• Specification：1 Unit
• Trademark：ZDMT
• Origin：Maanshan, China
• HS Code：84623990
• Production Capacity：100units,Month

Basic Info.

Model NO. QC12K-16×3200 Voltage 380V 50Hz 3phase Color Customised CNC Controller Estun E200-S Control Axis Cut Times and Backgauge Position Programs 40 Programs 25 Step Per Program Backgauge Rage 20-800mm Weigth 13000kg Transport Package Base Framed by Channel Steel and Plastic Bag Specification 1 Unit Trademark ZDMT Origin Maanshan, China HS Code 84623990 Production Capacity 100units/Month

Product Description

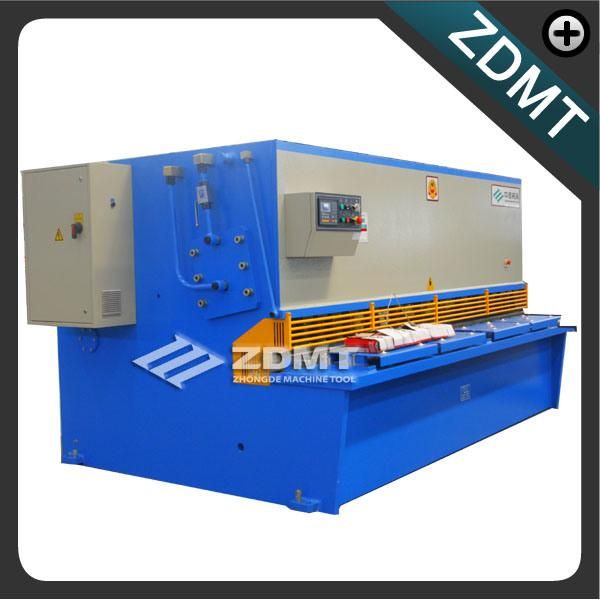

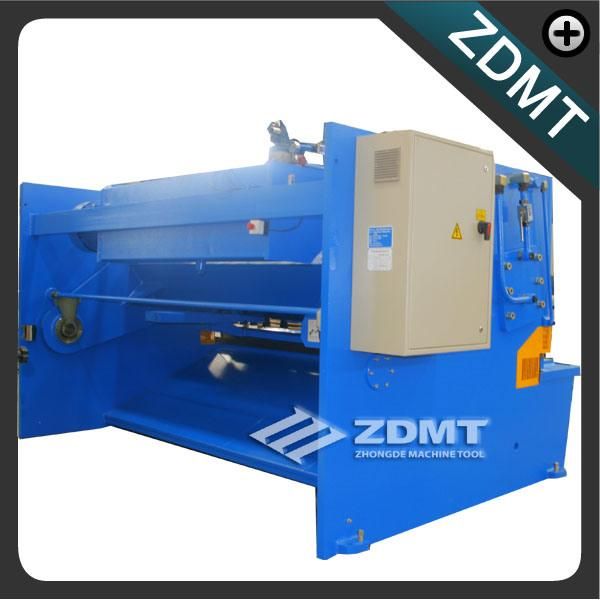

QC12K-16×3200 Hydraulic CNC shearing machine with E200-S control backgauge and cut times


The machine employs hydraulically-driven swing beam, the steel plate welded structure, and accumulator -based pullback cylinder with steady and reliable operation.

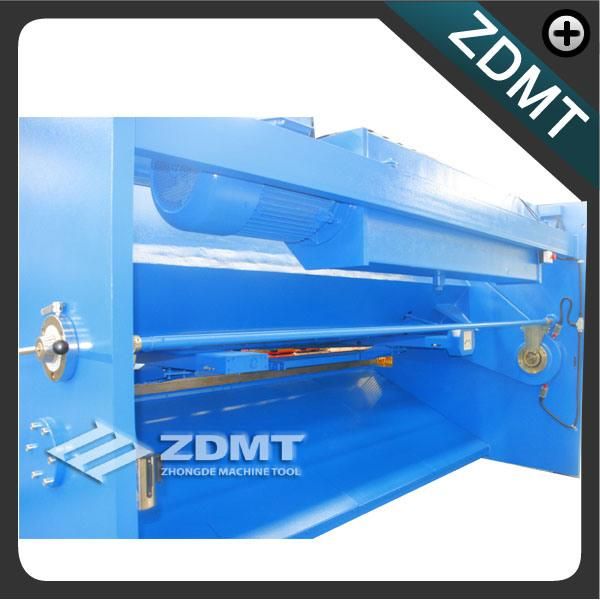

Stepless control for the stroke; The gap between up blade and down blade is manually adjusted by handle for high uniformity; Protection fence and the electric interlock to ensure the operation safety.


The closed loop control system that consists of CNC system and position coder features fast response speed, high precision, and exceptional stability and can ensure the accuracy of displacement of back gauge. Moreover, CNC system has the accessory functions of compensation and automatic check.

Adopt pneumatic back material support device, ensure the normal work of shearing when the plate sheet flexible to distortion.
