China High Precision Parallel Cam Indexer Oscillating Indexer Parallel Shaft Indexer P Series

WEIFANG TOPTION MACHINERY CO., LTD.
  • Condition:New
  • Certification:ISO9001
  • Standard:GB
  • Customized:Customized
  • Material:Housing: Cast Iron
  • Application:Metal Processing Machinery Parts, Metal Coating Machinery, Metal Casting Machinery, Automation Equipment

Base Info

  • Model NO.:,
  • Output Allowable Redial Load (Kgf):477
  • Output Allowable Axial Load (Kgf):397
  • Input Allowable Redial Load (Kgf):477
  • Input Allowable Bending Moment (Kgf):397
  • Weight (Kg):40
  • Repetitive Indexing Accuracy (Sec.):60
  • Indexing Accuracy of 1 Dwell (Sec):+60 or -60
  • Indexing Accuracy of 2 Dwell (Sec):+120 or -120
  • Usage:for Automation Equipment with Conveyor Belt
  • Transport Package:Box
  • Specification:P100
  • Trademark:HONE PAN
  • Origin:China
  • HS Code:84834090
  • Production Capacity:20000 Sets , Year

Description

Basic Info.

Model NO. / Output Allowable Redial Load (Kgf) 477 Output Allowable Axial Load (Kgf) 397 Input Allowable Redial Load (Kgf) 477 Input Allowable Bending Moment (Kgf) 397 Weight (Kg) 40 Repetitive Indexing Accuracy (Sec.) 60 Indexing Accuracy of 1 Dwell (Sec) +60 or -60 Indexing Accuracy of 2 Dwell (Sec) +120 or -120 Usage for Automation Equipment with Conveyor Belt Transport Package Box Specification P100 Trademark HONE PAN Origin China HS Code 84834090 Production Capacity 20000 Sets / Year

Product Description

1.  China High Precision Parallel Cam Indexer | Oscillating Indexer | Parallel Shaft Indexer P Series Features:
1) high precision.
2) good performance of high speed.
3) smooth running.
4) large transmission torque.
5) self-locking during positioning.
6) compact structure.
7) long service life.

2. Product Details:

As the increasing demand of modern industry for automation, high-speed, high precision of products, cam indexer has been widely used in many kinds of automation equipment. Cam indexer is an ideal intermittent transmission mechanism which could turn continuous running of automation equipment into stepping action.

China High Precision Parallel Cam Indexer | Oscillating Indexer | Parallel Shaft Indexer P Series  (P) introduction:
This series cam indexer is equipped with two or three flat cams. It is suitable for all kinds of automation equipment with conveyor belt application.

China High Precision Parallel Cam Indexer | Oscillating Indexer | Parallel Shaft Indexer P Series  (P): P50, P65, P80, P100, P105,P125, P130, P150, P160, P175, P200, P250, P320.

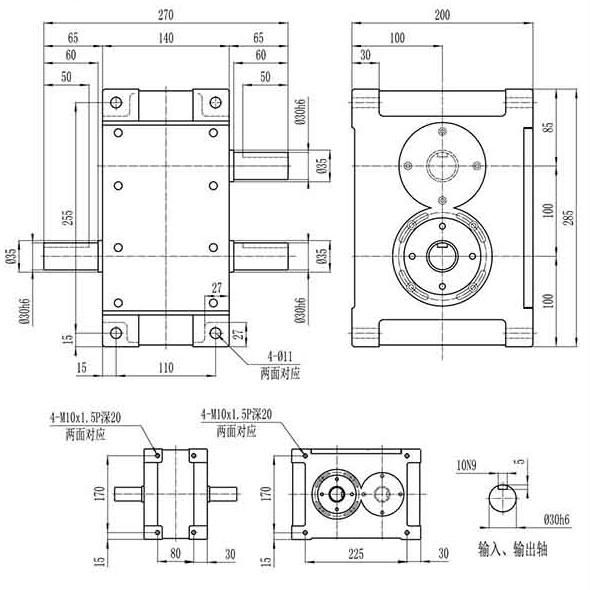

3.Specification of  China High Precision Parallel Cam Indexer | Oscillating Indexer | Parallel Shaft Indexer P Series:
China High Precision Parallel Cam Indexer Oscillating Indexer Parallel Shaft Indexer P Series


ItemSymbolUnitValue
Output allowable radial loadP1Kgf477
Output allowable axial loadP2kgf397
Output allowable torqueTSKgf-mRefer to Torque Capacity Table
Output rotating rigidityK1Kgf-m/rad3.26×103
Input allowable radial loadP4Kgf477
Input maximum bending momentP5Kgf397
Input maximum torqueP6Kgf-m39
Input rotating rigidityK2Kgf-m/rad3.26×103
Indexing accuracy of 1 DWELL  sec±60
Indexing accuracy of 2 DWELL sec±120
Repetitive Indexing accuracy  Sec.60
Weight Kg40

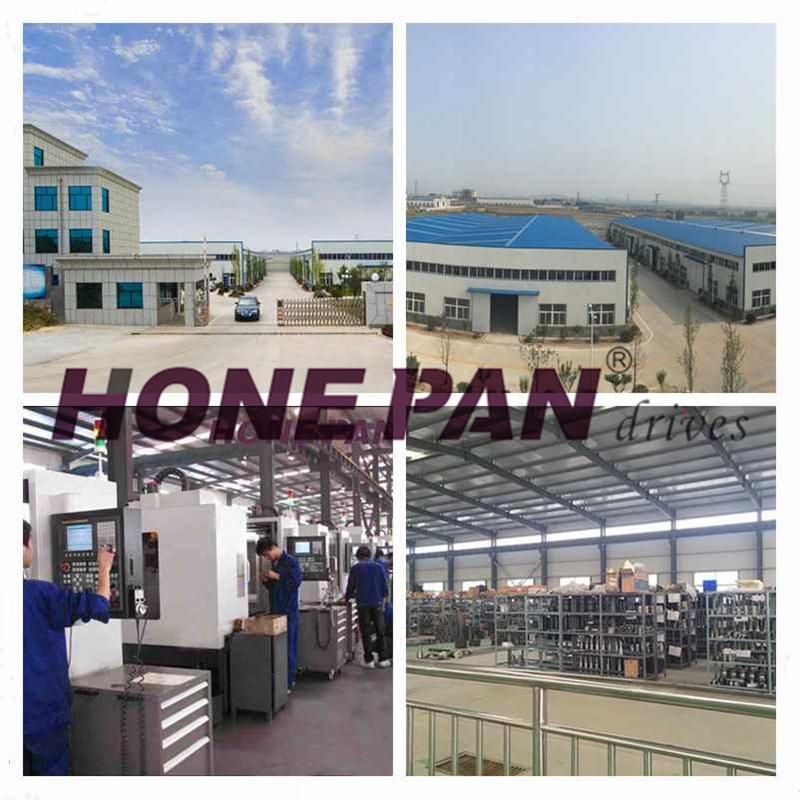

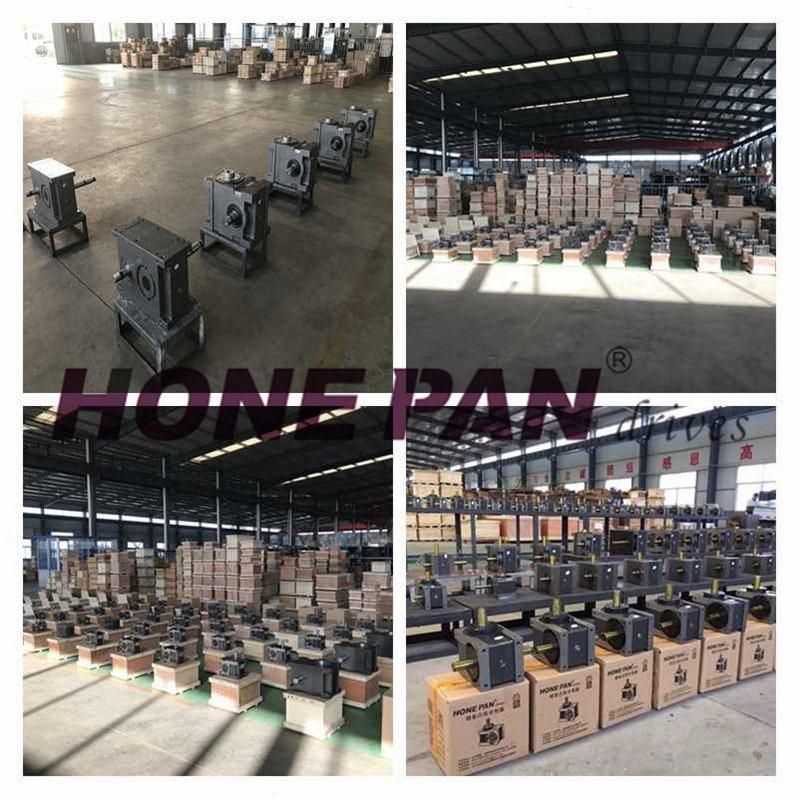

4. Company, Packaging & Shipment & Quality Control & Certificates

China High Precision Parallel Cam Indexer Oscillating Indexer Parallel Shaft Indexer P SeriesChina High Precision Parallel Cam Indexer Oscillating Indexer Parallel Shaft Indexer P SeriesChina High Precision Parallel Cam Indexer Oscillating Indexer Parallel Shaft Indexer P SeriesChina High Precision Parallel Cam Indexer Oscillating Indexer Parallel Shaft Indexer P SeriesChina High Precision Parallel Cam Indexer Oscillating Indexer Parallel Shaft Indexer P Series


5. FAQ:

1) Customize prodcuts are available ?
     Yes, Customize products are available. We could design and produce products according to your requirements or darwings. You just need to tell us your detailed requirements and our technicists will design and provide materials for your confimation. If all is ok, the production will be arranged.

2)  What's your payment terms?
    For small order, considering the value is not large, the payment terms are 100% T/T in advance.
    For large order, we could negotiate.

3) how about the packaging and shipment?
    Packaging : in box (wooden case).
    Shipment : according to customer's instruction.

4) How about the lead time ?
   For common model, the lead time is about 15 workdays;
   For customize model, the lead time is longer, about 30 workdays.

5) How about the quarantee period ?
    In generall, the quarantee period - one year for assembly unit from the date of sale .
