• Model NO.：PP booth
• Carton：Customized According to Requirement
• Delivery Time：3-5days
• Ports：Shanghai, Ningbo
• Power：Customized According to Requirement
• Transport Package：Wooden Carton
• Specification：CE, SGS, ATEX
• Trademark：WANXIN
• Origin：China
• HS Code：84243000
• Production Capacity：50 Sets,Day

Specification & DescriptionsSelective resolutionManual pre-treamentManual polish, mopping, grinding etcMechnical Pre-treatmentSandblasting, shotblasting etcChemical Pre-treatmentRust-removal, degreasing, phosphating, passivation etc.Pretreatment ObjectiveRemove the dust, rust, grease, dirty substrate on the surface of workpiece and to form one layer density film to improve the adhesive property between spraying coating particles and metal workpiece surface.Custom Processing IncludingPre-degreasing, Degreasing, Rinsing , Hot water rinsing, DM rinsing ,Surface Conditioning, Phosphating,Oxsilan processing, Compress air blowing etcChemical PretreatmentDipping Pre-treatmentWorkpiece is processed in chemical dipping tanksFull Chemical Spray PretreatmentGo-through type chemical spray pretreatmentChemical Heating systemBy Electricity, Diesel, Gas,LPG or other ways

2.2 CHEMIAL SPRAY PRE-TREATMENT REFERENCE PHOTOS

Chemical Full Spraying Pre-treament system

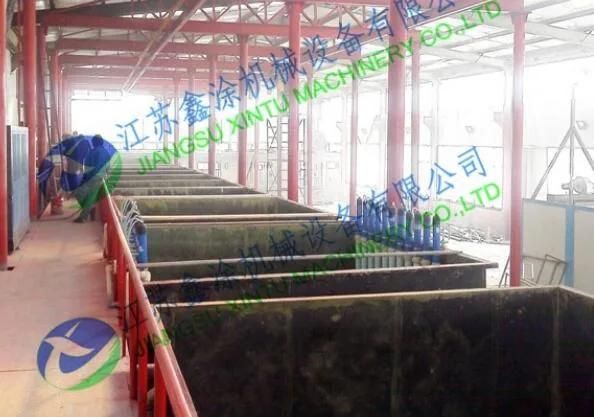

Chemical Dipping Pre-treament system




3. POWDER SPRAYING & POWDER RECOVERY/ RECLAIM/RECYCLING SYSTEM

3.1 POWDER COATING SPRAY BOOTH

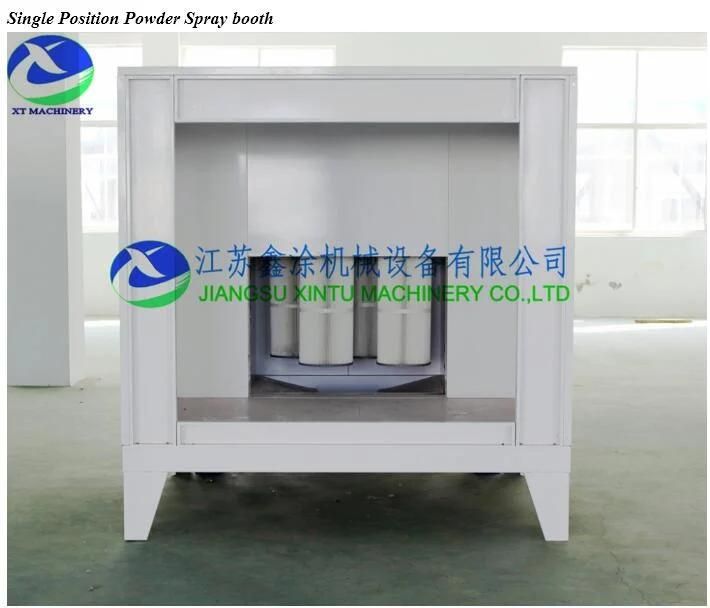

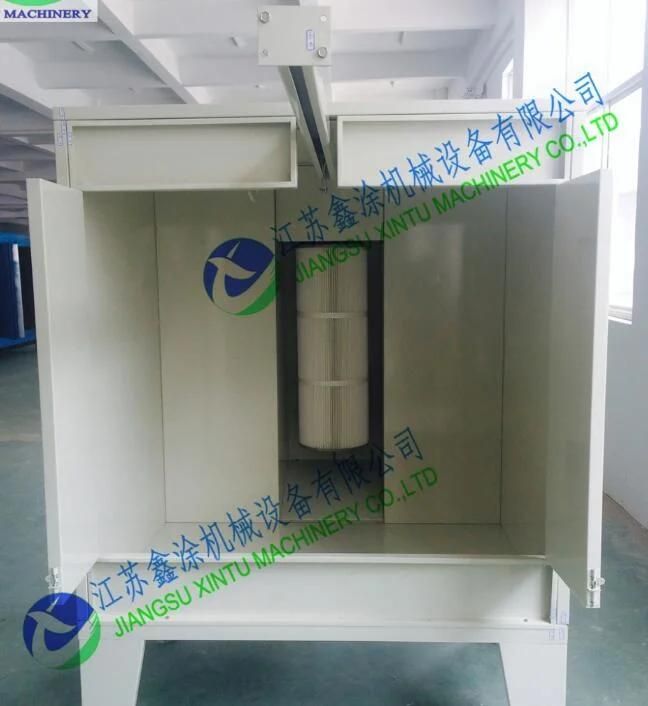

SPRAY BOOTH TYPE    :  Lab-testing use booth, Single position manual spray booth, Double posistion go-through type powder spray booth, Plastic (PVC or PP) powder spray booth;

RAW MATERIAL    : Carbon steel , Glvanizing , Stailess, PVC, PP spray booth are available by us according to your different requirements;

Lab-Tesing Use Powder Spray booth




3.2 POWDER RECYCLING SYSTEM

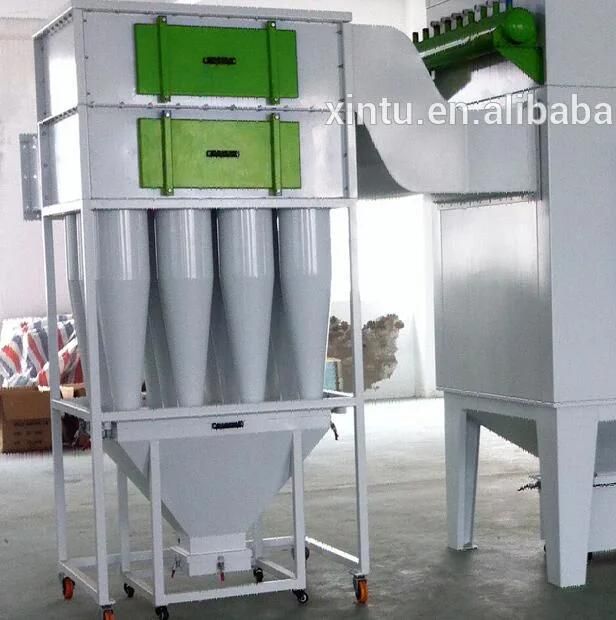

Reycling system type :  Custom Cartridge fitlers ,Multi-tubes cylcone & after filter , Mono-cyclone & after filter etc

4. DRYING AND CURING SYSTEM  FOR POWDER COATING LINE

 4.1 TECHNICAL REFERENCE

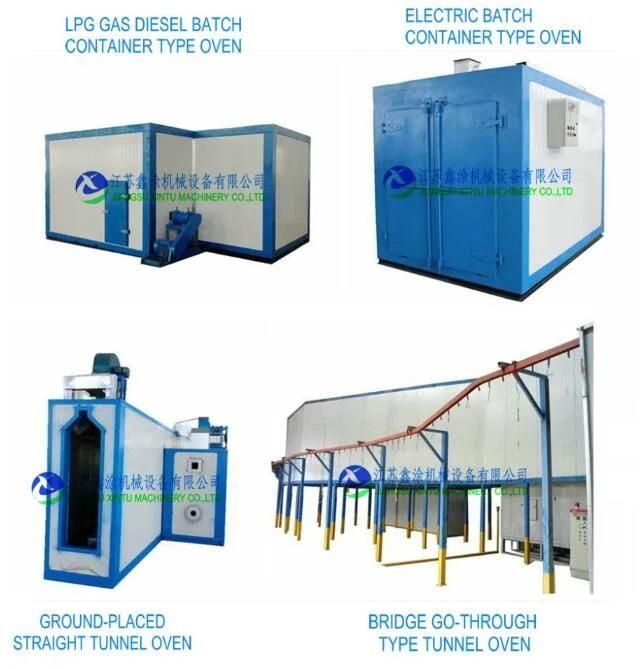

OVEN TYPES: Batch container type; Go-through straight tunnel oven , Go-through conveyorized Bridge type tunnel oven;

HEATING  FUEL: By Gas, LPG, Diesel, Electric or others fuel;

RAW MATERIAL: Galvanzing sheet,CRS sheet, Rockwool, Profile steel frames etc.

CUSTOM DRYING TMEPERATURE: 100~140ºC

CUSTOM CURING TMEPERATURE: 180~200ºC

TMEPERATURE TOLERANCE CONTROL: ≤ ±5ºC (Along the conveyor direction)

4.2 REFERENCE PHOTOS



5. CONVEYOR SYSTEM

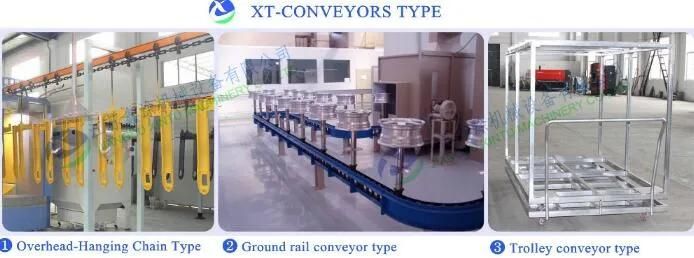

CONVEYORS TYPE: Overhead hanging conveyor system, Ground rolled conveyor system, manul trolleys system;

TENSIONERS:  Weight tensioners to make sure durablly stable tension property than spring type tensioner;

CONVEYOR LUBRICATING SYSTEM: Oil-spraying cup or oil-dropping cup are available;



5. ELECTRIC CONTROL SYSTEM

PLC control system are available;

MITSUBISHI, SCHNEIDER CNNT, DELIXI  etc Better quality brand are used in our design according to different customers requirement;

6. FACTORY INFORMATION

6.1 COMPANY BASIC INFORMATION:

• More than 15 years' experience in fabricating the complete coating line;
• Fabricating factory invested fund: USD 300,000.00
• Factory occupied Area size: Approximately 18,000.00 squre meters;
