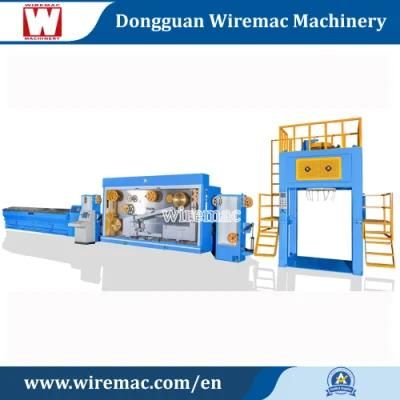

Ultra Flexible High Temperature 600V 0 to 14 Gauge AWG Copper Wire Drawing Machine Breakdown Equipment

  • After-sales Service:24 Hours Online Problems Solving
  • Warranty:1 Year
  • Type:Horizontal Metal Drawing Machine
  • Usage:Wire, Rope Wire, Prestressed Steel Wire, Standard Parts
  • Metal Material:Copper
  • Certification:RoHS, ISO

Base Info

  • Model NO.:DLT400-11DA35
  • Condition:New
  • Inlet Diameter:8 mm
  • Outlet Diameter Range:1.2 - 3.5 mm
  • Die No.:13,11,9
  • Max. Line Speed:1200 M,Min
  • Annealing Wheel Quantity:4 PCS
  • Capstan Motor Power:45 Kw
  • Main Motor Power:160 Kw
  • Annealing Capacity:400 kVA
  • Brake Method:Air Disk Type
  • Transport Package:Wooden Box
  • Specification:According to Customer′s Request
  • Trademark:Wiremac
  • Origin:Guangdong, China
  • HS Code:8479819000
  • Production Capacity:100 Sets,Month


Overview Product Description

Product Parameters

Technical Parameters

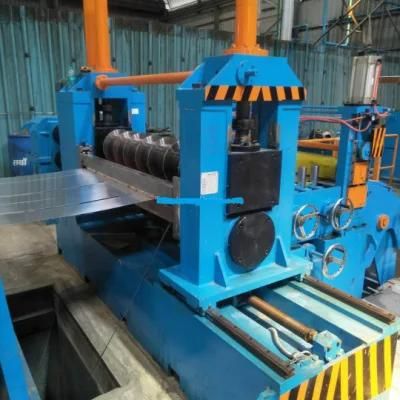

DLT450/13D-5000ADL400/9DDLT400/11DMax inlet diameter8 mm8 mm8 mmOutlet diameter range1.2 - 3.0 mm2.6 - 3.0 mm1.6 - 3.5 mmMax die number13911Max line speed1200 m/min600 m/min1200 m/minMain motor power280 kw132 kw160 kwCapstan motor power55 kw/45 kwGear & bearing lubrication methodThe oil pump forces to give the oil.Elongation1st - 12th: 20-40%, 13th: 10-30%1st - 8th: 31.7%, 9th: 13-30%1st - 10th: 31.7%, 11th: 10-30%Annealing wheel diameter450 mm400 mm400 mmAnnealing wheel number4 pcs/4 pcsMax annealing current5000 A/4000 AMax annealing voltage60 V/60 VAnnealing capacity400 KVA/400 KVATotal installed power780 KVA130 KVA650 KVAPower supply380V, 50HZ380V, 50HZ380V, 50HZMachine dimensionL20000 x W5000 x H4000 mmL12000 x W4500 x H4000 mmL16000 x W5000 x H4000 mmBrake methodAir disk typeAir disk typeAir disk typeDies changing methodFast type/Fast type Detailed Photos

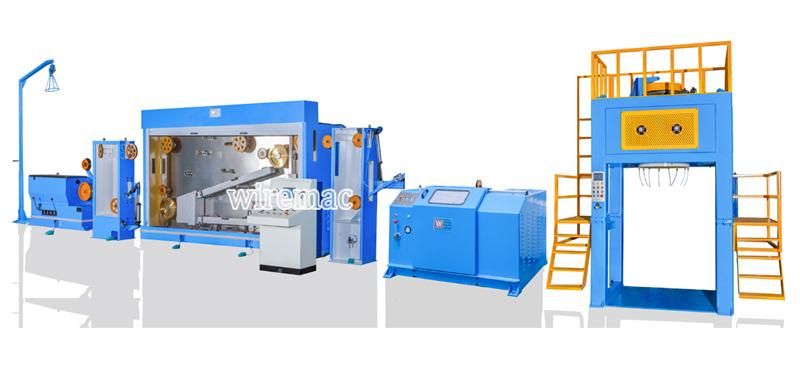

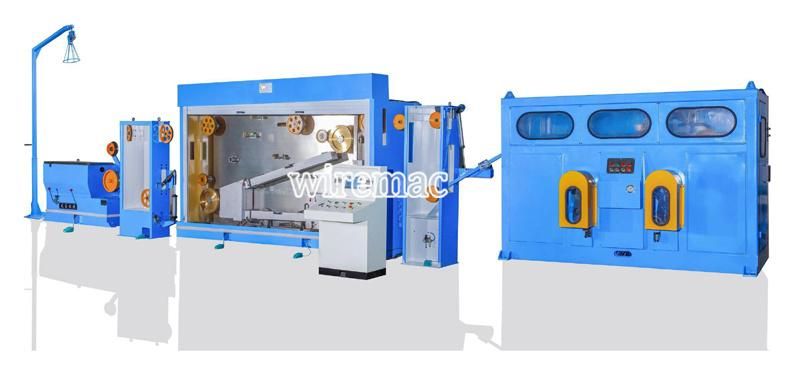

Ultra Flexible High Temperature 600V 0 to 14 Gauge AWG Copper Wire Drawing Machine Breakdown Equipment Ultra Flexible High Temperature 600V 0 to 14 Gauge AWG Copper Wire Drawing Machine Breakdown EquipmentUltra Flexible High Temperature 600V 0 to 14 Gauge AWG Copper Wire Drawing Machine Breakdown EquipmentCompany Profile

Our Service

Our Advantages


1. Q: Are you manufacturer or trading company?
    A: We are manufacture and trading company.

2. Q: What info you need before you make the proposal?
    A: The pipe diameter and thickness range which you need or the profile drawings, material information, your special requirements.

3. Q: What is the MOQ?
    A: One set

4. Q: Do you provide installing and debugging overseas?
    A: Overseas machine install and worker training services are optional.

5. Q: Can you make the machine according to my design or prototype?
    A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book                 with us.

6. Q: How does your factory do regarding quality control?
    A: There is no tolerance regarding quality control. Quality control complies with ISO 9001.Every machine has to past testing running before it's                 packed for shipment.

7. Q: How can I trust you that machines pasted testing running before shipping?
    A: 1) We record the testing video for your reference
         2) We welcome you visit us and test machine by yourself in our factory.

8. Q: What about our after-sale service?
    A: We provide technical support on line as well as overseas services by skillful technicians.

9. Q: What should I do if I just start a new business?
    A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you to solve the material(steel coil)purchase, worker               train, international market price.

10. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
      A: We are manufacturer, and we welcome customers to visit our factory. For special product design and develop, we request you bring a piece               of testing material, you can test on our machines on-site.
