• Model NO.：DH-FK-1H
• HS Code：8422400
• Production Capacity：2units,Mon

Basic Info.

Model NO. DH-FK-1H HS Code 8422400 Production Capacity 2units/Mon

Product Description

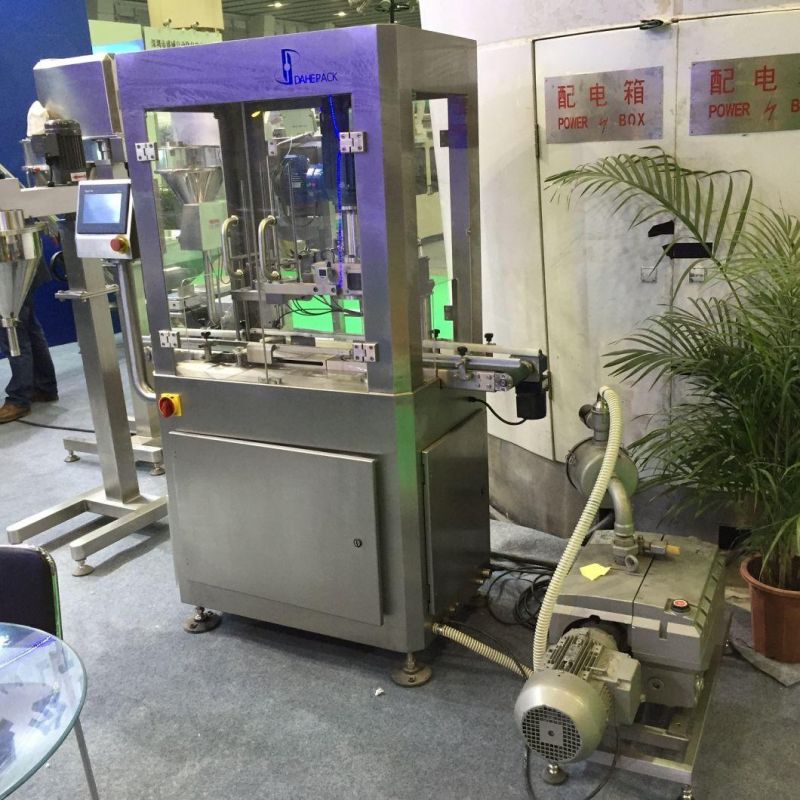

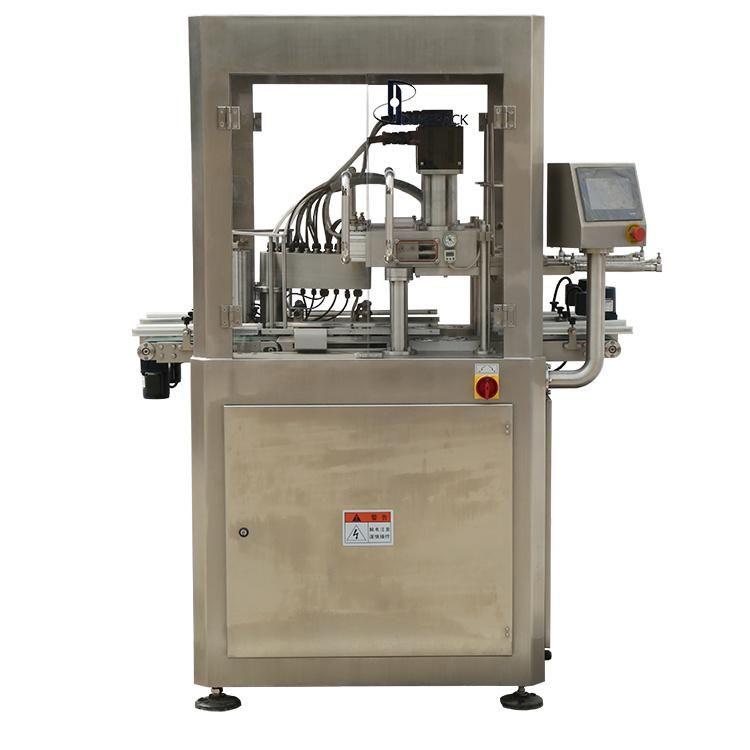

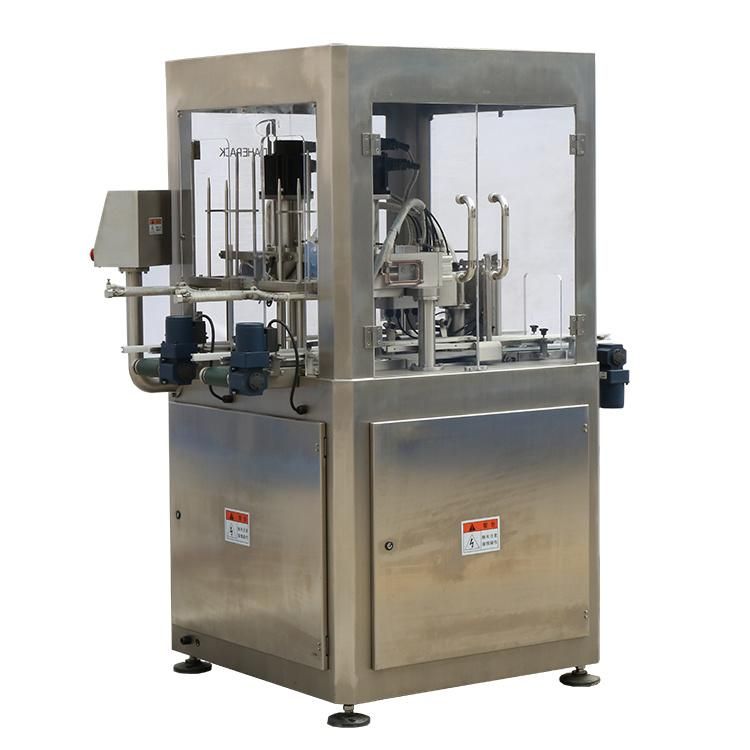

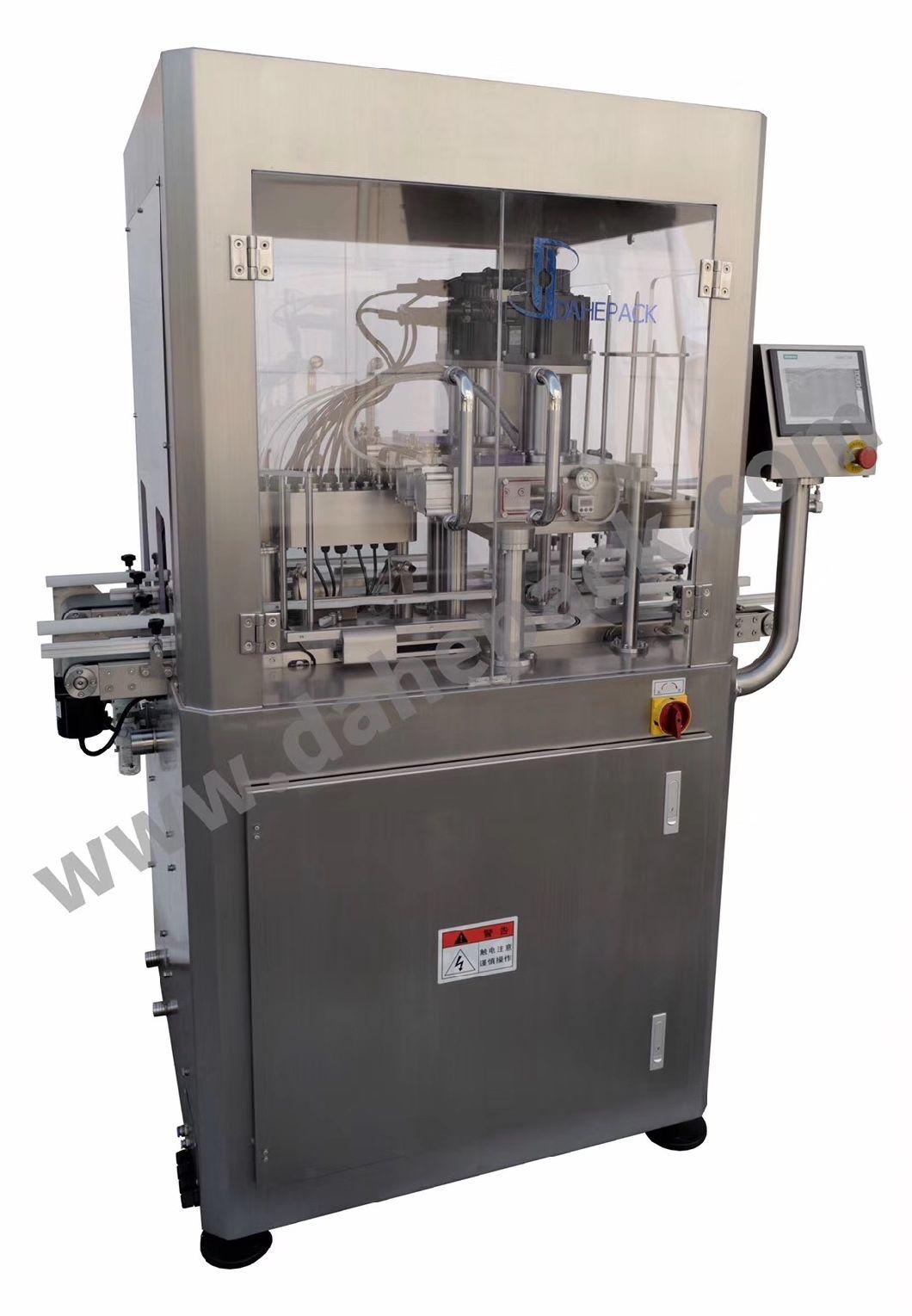

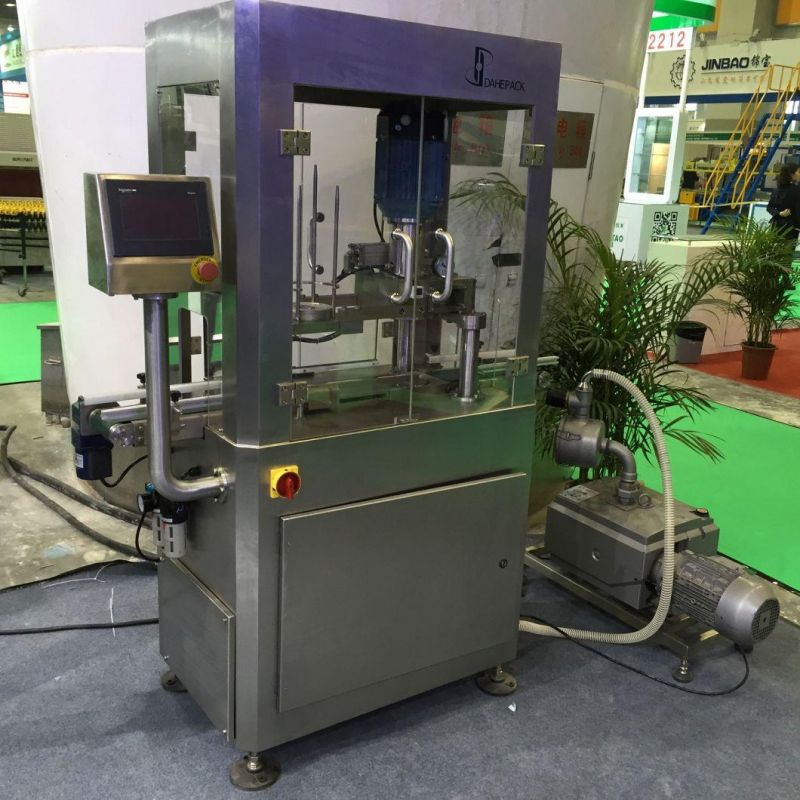

  Automatic Vacuum Cans Seamer,Automatic Vacuum Cans Seaming Machine.   Introductions:          This is a automatic vacuum cans seamer :Fully stainless steel construction and PLC /HMI control,featured with compact design, high reliability and easy to operate. Vacuumizing-Gassing-Seaming completed by one work station and low oxygen residual which can greatly improve the shelf life.

Specifications:           1: Seaming Speed: 5-7 Cans /min           2: Remaining Oxygen  <3%            3: Tin Cans Dimension Range:  D 73-131mm   H 100-190mm (With different sets seaming tools)            4: Power Supply   3P  220-415V  50/60HZ            5: Air Supply : 6kg/cm2  0.05m3/min            6: Total Power: 4.5KW (Including vacuum pump 3KW)              7: Total Weight: 300KGS             8: Overall Dimension: 1400*600*1800mm(L*W*H)

Main Features:

1: Fully stainless steel structure and compact design.

2: Sealing tightly and effectively protect filled powder quality

3: The negative pressure inside the sealed cans is adjustable to remove the persistent ailment of "buckled can".

4: The gas inside the cans is effectively replaced which will greatly prolonging product shelf life.

5:Applicable range including milk powder, health powder product ,condiments ect.

6: Can be only used to seam round shaped cans( Hard paper or metal structure) ,cans dimension range: Dia70-131 Height 100-190mm with different seaming tools.

7: Seaming Capacity  5-7Cans per min , remaining oxygen is under 3%.
