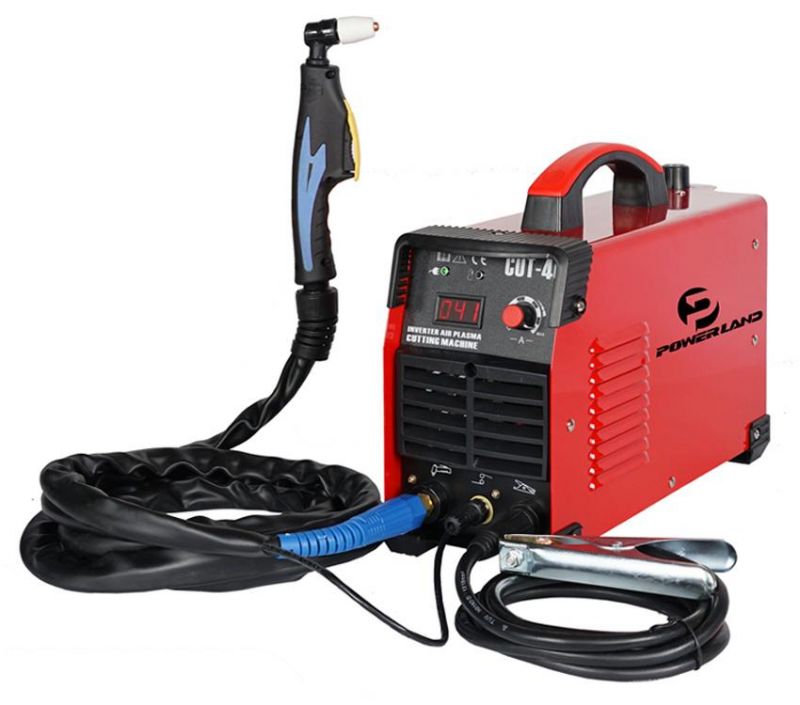

Arc Pilot Air Plasma Cutting Machine High Frequency Ignition Metal Cut 40A 50A 60A High Speed Maquina De Corte Inverter IGBT Powerful Cutter Hot Start
Taizhou Powerland Electric Co., Ltd.- Customized：Customized
- Layout：Vertical
- Cutting Material：Carbon Steel, Iron, Metal Alloy, Stainless Steel
- Automatic Grade：Semi-Automatic
- Power Source：Electric
- Cutting Mode：Plasma Cutting
Base Info
- Model NO.：CUT-40,50,60
- Transport Package：Carton
- Trademark：proPOWERLAND
- Origin：China
- Production Capacity：5000sets,Year
Description
ModelCUT-40 CUT-50 CUT-60 Rated Voltage (AC)V 1PH230V 1PH230V 1PH230V Frequency HZ 50/60 50/60 50/60 Input capacity KVA 4.8 7.8 8.5 No load voltage V 243 270 300 Currenct Arrange A 15-40 20-50 20-60 Rated Duty cylcle % 60% 60% 60% Efficiency % 85 85 85 Power factor COS 0.93 0.93 0.93 Cutting thickness mm 1-15 1-18 1-20 Protection Degree IP21S IP21S IP21S Insulation class F F F Arc-starting HF HF Touch Net weight Kg 7.8 8.3 8.5 Dimension mm 375*155*265 375*155*265 375*155*265
