Automatci Cold Bolt Making Machine

HARBIN RAINBOW TECHNOLOGY CO., LTD.
  • After-sales Service：Online Support
  • Type：Forging Operation
  • Forging Forming Method：Mold Forging
  • Power Source：Electric
  • Feature：Precision
  • Certification：CE

Base Info

  • Model NO.：RB
  • Warranty：12 Months
  • Customized：Customized
  • Advantage：Use Widely
  • Condition：New
  • Processing Object：Metal
  • Molding Style：Forging
  • Molding Technics：Pressure Casting
  • Application：Auto Parts
  • Material：Steel
  • Transport Package：Wooden Case
  • Specification：RBF
  • Trademark：RAINBOW
  • Origin：China
  • HS Code：8463900090

Description

Model                                    UnitRBF-64SRBF-84SRBF-104SRBF104LRBF-134L  Forging forceKgs35.00060.00080.00080.000120.000Max.cut-off dia.mm810121215Max.cut-off lengthmm80115135185190Output ratepcs/min140-210120-18090-14080-13075-110P.K.O. Strokemm1218203040K.O. Stroke mm  70 92118  160175 Main ram stroke mm   110 160 190 262 270Main motor power Kw 15 22 30 30 37Overall dims. of cut off die mm 30x45L 50x50L 45x59L 45x59L 63x69LOverall dims. of punch die mm 40x90L 45x125L 53x115L 53x115L 60x130LOverall dims. of main die   mm 50x85L 60x130L 75x135L 75x185L 86x190L Die pitchmm 60 70 90 94 110 Approx. weightT 8 14 18 21 28 Applicable bolt diamm 3-6 5-8 6-10 6-10 8-12.7Shank length of blankmm 10-65 15-90 15-110 20-152 20-160

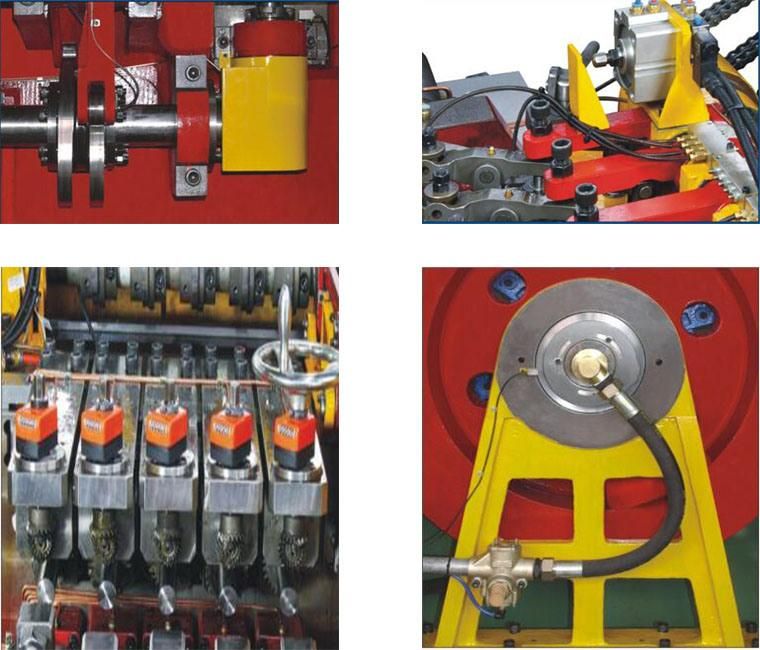

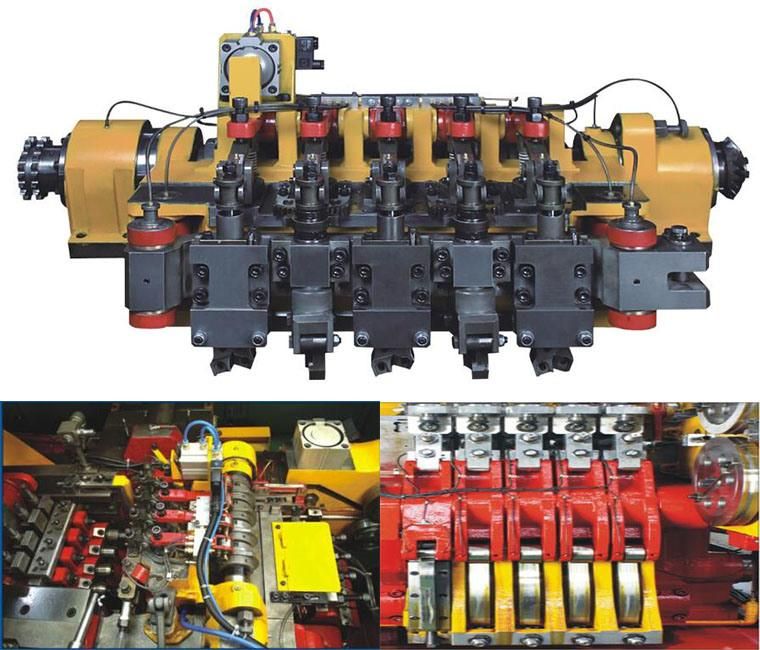

Machine Details:

Automatci Cold Bolt Making MachineAutomatci Cold Bolt Making Machine

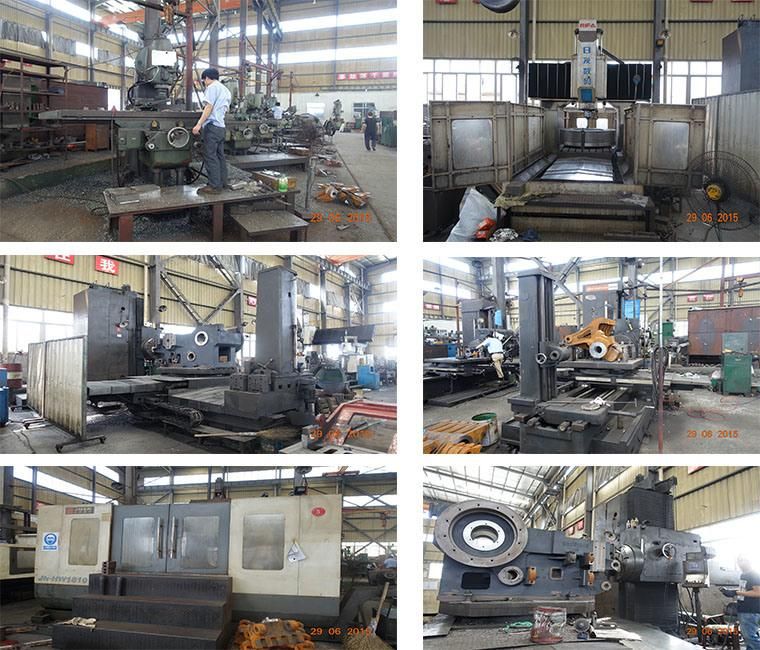

Workshop View:

Automatci Cold Bolt Making Machine
If interested in, please leave an inquiry to me!
Automatci Cold Bolt Making Machine
