• Model NO.：CX
• HS Code：8463300000
• Production Capacity：100PCS,Month

Basic Info.

Model NO. CX HS Code 8463300000 Production Capacity 100PCS/Month

Product Description



Company Information

Our company professional manufactures nail making machine, wire drawing machine and the accessory equipments since 1995

Capacity 1000pcs per year, customers cover Asia, middle East, Africa and latin-America ariea.

Our company has CE, ISO9001 certificate and our engineer arrange for machine accommodation in customer's factory.

We can supply high quality barbed wire netting machine which can netting the dia of the screen wire from 2mm to 3mm.

26 years machine manufacturer experience.12 years exporting experiance with more than 200 companises customers.



Machine specification

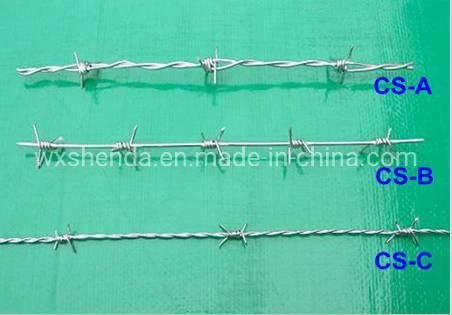

There are total 3 kind barbed wire making machine
1.Double wire barbed wire making machine
2.Reverse twist barbed wire making machine
3.Single wire barbed wire making machine

Usuallt,the barbed wire making machine is consist with wire feeding part,wire twisting part and wire widing parts.

Our barbed wire machine  with control panel which  make the record for the barbed wire and can our machine featured with simple

Struction,Easy operate,Durable .The finished barbed wire popular used in farming,highway,railway and the area need protection.

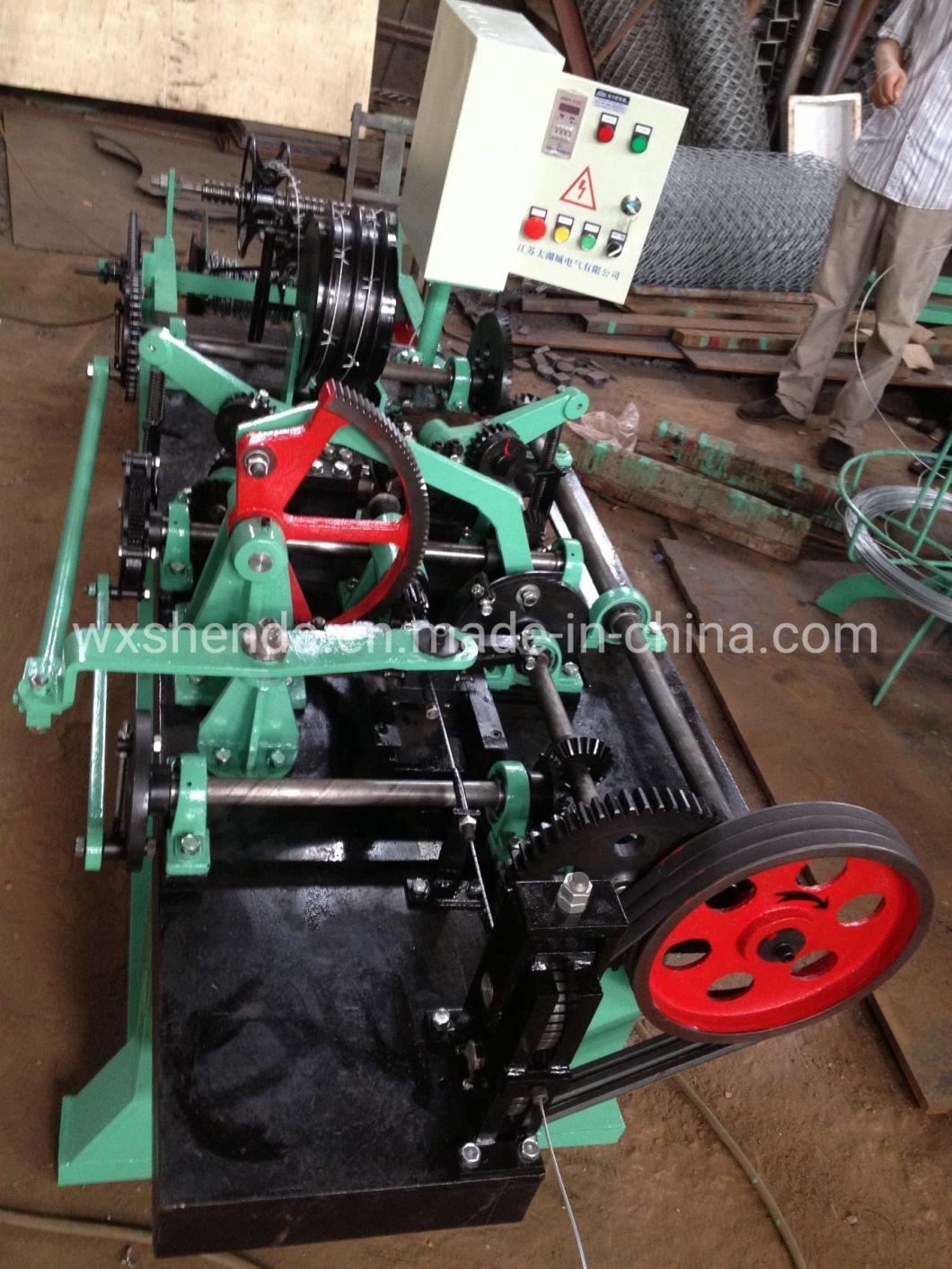

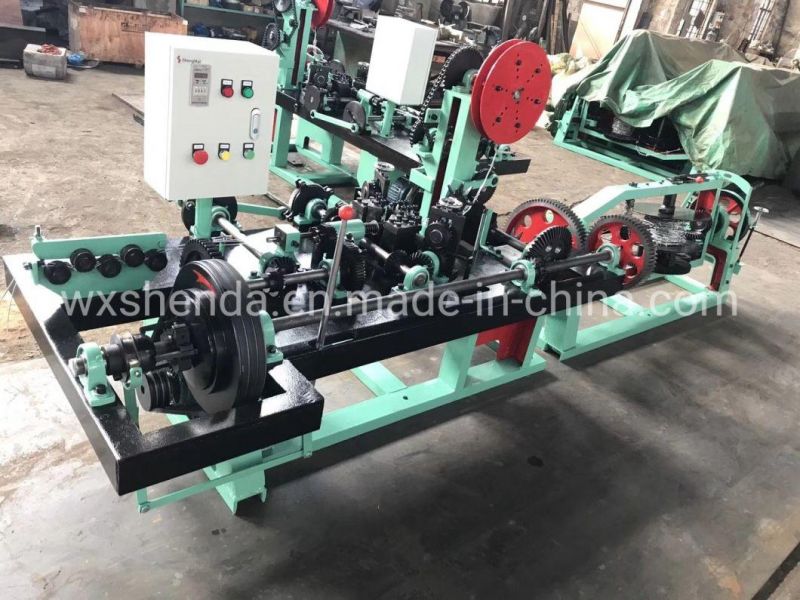

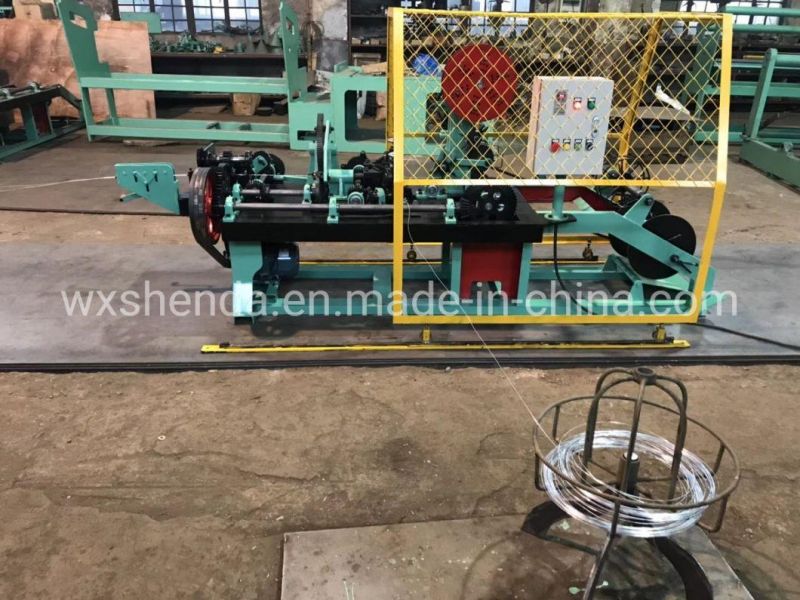

1.Double wire barbed wire making machine

No.	Description	Unit	Specification
1	Motor	kw	3
2	Main drive shaft speed	r/min	402
3	Unit wire diameter	mm	2.2-3.0
4	Barbed wire diameter	mm	1.8-2.2
5	Barbed pich	inch	3,4,5
6	Twist Number	pcs	3.5
7	Theoretical capaticy	Kg/h	70
8	Total weight	kg	1200
9	Dimension of main part	mm	2000*1500*1500

2.Reverse twist barbed wire making machine

No.	Description	Unit	Specification
1	Motor	kw	2.2
2	Main drive shaft speed	r/min	355
3	Unit wire diameter	mm	1.6-2.8
4	Barbed wire diameter	mm	1.6-2.2
5	Barbed pich	inch	4,5
6	Twist Number	pcs	7
7	Theoretical capaticy	Kg/h	40
8	Total weight	kg	1000
9	Dimension of main part	mm	3000*1000*1150

3.Single wire barbed wire making machine

No.	Description	Unit	Specification
1	Motor	kw	2.2
2	Main drive shaft speed	r/min	355
3	Unit wire diameter	mm	2.2-3.0
4	Barbed wire diameter	mm	1.8-2.2
5	Barbed pich	inch	4,5
6	Theoretical capaticy	Kg/h	40
7	Total weight	kg	4000
8	Dimension of main part	mm	3100*1130*1500

Machine packing &delivery
