• Model NO.：WX-101V
• Warranty：1 Year
• Carton：68.5X47.5X59cm
• Weight：41kgs
• Delivery Time：3-5days
• Power：50W
• Transport Package：Wooden Carton or Carton
• Specification：CE, SGS, ATEX
• Trademark：WANXIN
• Origin：China
• HS Code：84243000
• Production Capacity：50 Sets,Day

Basic Info.

Model NO. WX-101V Warranty 1 Year Carton 68.5X47.5X59cm Weight 41kgs Delivery Time 3-5days Power 50W Transport Package Wooden Carton or Carton Specification CE, SGS, ATEX Trademark WANXIN Origin China HS Code 84243000 Production Capacity 50 Sets/Day

Product Description

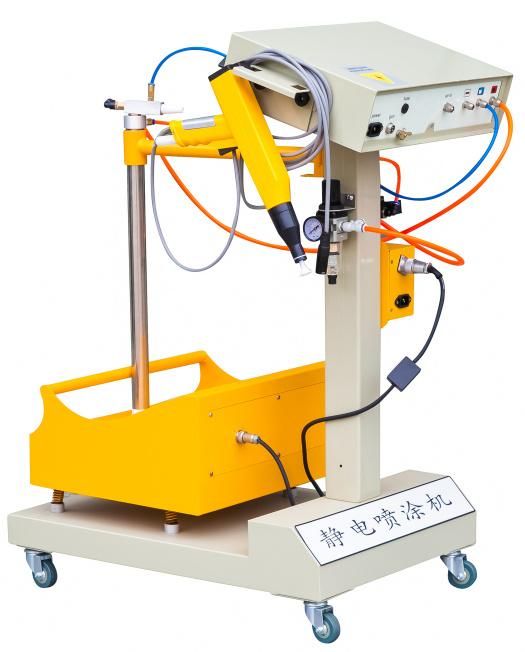

                  Electrostatic Powder Coating&Spraying Machine

If your production requires frequent and quick color changes

Then we would recommend the WX-101V,

which is designed to use the powder manufacturer's original carton. Highest flexibility,

Minimal color change times, For direct transport from the original powder carton,

Complete emptying of the powder box thanks to the tilted vibrating base, integrated fluidization .




Technical Data

• Power Voltage: AC110V/AC220V
• Frequency: 50/60Hz
• Sprying Rate: 500g/min.
• Input Power: 40W
• motor power:30W
• Electromagnetic Valve Control Power Voltage: DC 24V
• Maximum Output Current: 150uA
• Input Air Pressure: 0-0.6Mpa
• Output Air Pressure: 0-0.5Mpa
• Max. Air Consumption: 13.2m3/H
• Output Powder Volume: Max. 550g/Min
• Output Power Voltage: 0-100kv
• Polarity: Negative
• Gun Weight: 480g
• Length Of Gun Cable: 4m
• Powder Coating Applicable: All Kinds Of Powder Without The Metals

Packing List

Control Unit *1
Powder Coating Gun *1
Powder Injector *1
Moving trolley with vibrating table x1
Regulating Valve*1
Oil water filter *1
Powder Gun spare parts *1KIT
Operation Manual*1

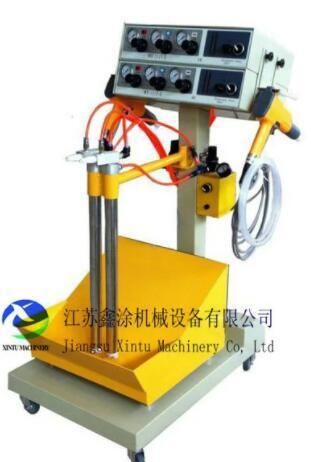

Based on this equipment,We also developed another machine which has two controller and two guns on one machine.

Be availabe to use for two operator at the same time as below:

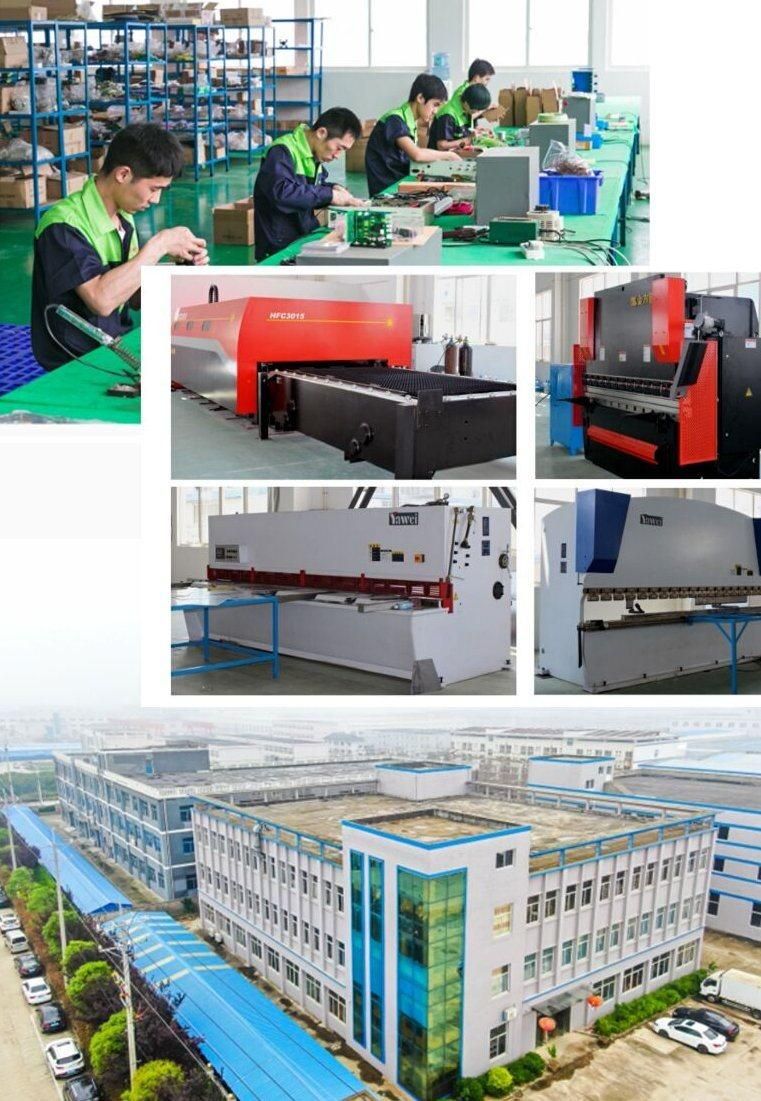

COMPANY Profile:

Jiangsu Xintu Machinery Co., Ltd is one of the leading Manufacturers in powder coating equipment or total line and flocking machine ,Our company found in 2011, with the factory in Jiangsu province nearby Shanghai city. it would take up a considerable 25,000square meters.
Almost 10 years experience in offering a wide variety products such as powder coating equipment,
flocking machine and their accessories, also if customers have a specific request can according to clients parameters to customized machine or line.
we have developed steady business relationship with clients from all over the world such as North America, Europe, middle East, Southeast Asia and so on.
We have experienced and skilled workers, QC team and QA system,also have ISO9001,CE,SGS certification.100%quality checking and tests before shipment.
We will offer you the most competitive price and best service!

Tom Feng(sales manager)

TEL: +86 17131159740
