• Model NO.：ZYYX Series
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Place of Origin：Zhejiang, China (Mainland)
• Brand Name：Zhongyuan
• Certificate：SGS, BV, CE, ISO
• Power：22kw
• Suitable Raw Material：Color Steel Sheet or Galvanized Steel Sheet
• Control System：Mitsubishi PLC
• Forming Speed：About 12 M,Min
• Total Weight：About 15000kg
• Whole Line′s Dimension：About 26m*1.8m* 1.6m (Depend on Final Design)

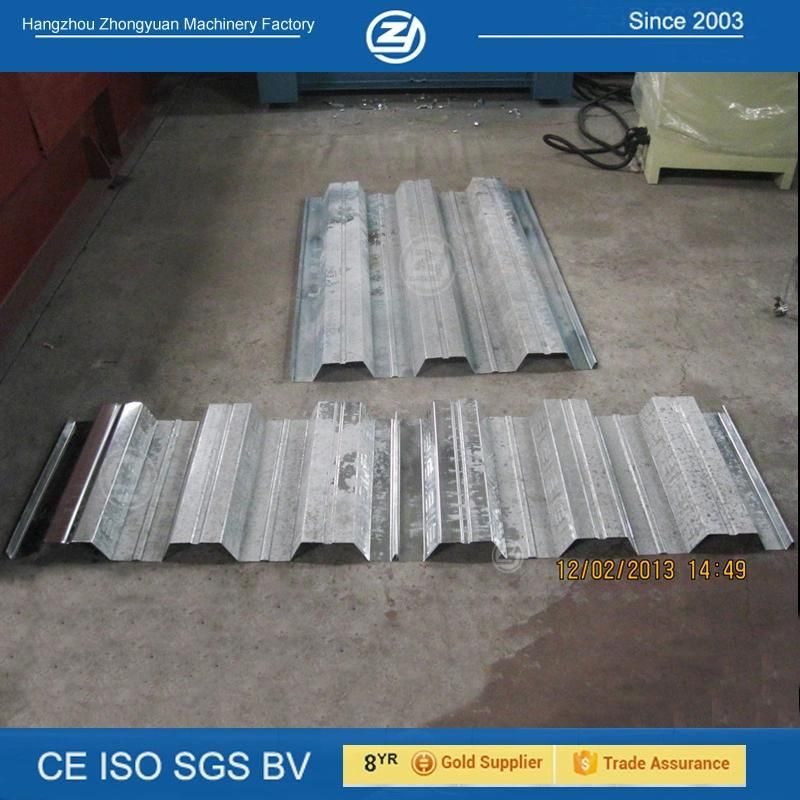

• Name：Galvanized Floor Decking Forming Machinery
• Transport Package：1*40gp+1*20 Gp
• Specification：CE SGS BV
• Trademark：zhongyuan
• Origin：Zhejiang, China
• HS Code：84552210
• Production Capacity：5sets,Month

Technical parameterItemSpecification
Raw MaterialTypePre-painted steel coil & galvanized coilsThickness(mm)0.8-1.2Yield strength(mpa)235-345Roller material45# steel , coated with Chrome Shaft for rollers Solid shaft with 82mm,processed with cylindrical grinderForming speed(m/min)12Speed adjusting modeMitsubishi frequency transformerRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mould steel Length measurementNemicon EncoderControl mode Mitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power(kw)11x2KWTotal power(kw)27.5KWProcess flowDecoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting - product to run out table
Components of machineDecoiler (manual decoiler and hydraulic decoiler for option)1set  Feeding & guiding device1setMain roll forming machine1setHydraulic cutting system1setControlling system1setRun out table (auto. Stacker for option)1set
