Spraying Machine Powder Coating Production Line Coating Equipment
Yantai Lingyu Powder Machinery Co., Ltd.- After-sales Service：24 Hours Online
- Warranty：One Year
- Type：Coating Production Line
- Coating：Powder Coating
- Substrate：Steel
- Certification：CE, ISO
Base Info
- Model NO.：Production Equipment
- Condition：New
- Keyword：Powder Coating Production Equipment
- Output：150-200 Kg,Hr
- Area：40-50 Square Metre
- Operator：1
- Noise Pollution：Low
- Anti-Explosion：High
- Space Occupation：Minimum
- Labor Cost：Low
- Automatic Operation：High
- European Atex, Psr11：Confirmed
- Transport Package：Pallet
- Specification：150-200 kg,hr
- Trademark：Lingyu
- Origin：China
- HS Code：84798999
- Production Capacity：30PCS , Months
Description
Model
(kg/hr)
Features of Excellent Quality Turnkey Powder Coating Production Equipment
1. High Anti-explosion and safety
2. Minimum space occupation
3. Automatic feeding system
4. Low labor cost
5. Adjustable & stable particle size distribution
6. Low noise & no pollution
7. Fast cleaning and easy color changing
8. High automatic operation
9. Conformed to European ATEX standard of anti-explosion design system
Control System
Lingyu's particular Industrial Control System fully achieve high automation during the whole production process, which improves the output & meanwhile saves labor cost. During the production, the particle size can be adjusted freely.
Company Introduction
Lingyu Powder Machinery Co., Ltd, established in 1999, is specialized in researching and manufacturing of powder coating processing equipment, with strong technical strength and abundant practical experience. Now we have hundreds of different machine models and get certifficates of CE approved by TUV Cermany, ATEX by Sira England and PSR11 by ECM Italy.
Following the principle of "Quality first, Credit first and customer first", we are able to provide commissioning and installation support, formulation guidance and 24-hour aftersale service, which help us win great trust and support from customers.
Now Lingyu has become a well-know manufacturer for powder coating processing equipment both at home and abroad, with No. 1 market share. Products have been successfully exported to 50 countries and regions. Friendly business relationship with many world famous powder coating manufaturers has been established and kept in long-term.
We sincerely welcome you to our company for business visit and technical communication. Together with our sister company-Longcai Advanced Materials, mainly specialized in powder coating resins, we'll try our best to provide the best solution of powder coatings to our customers.

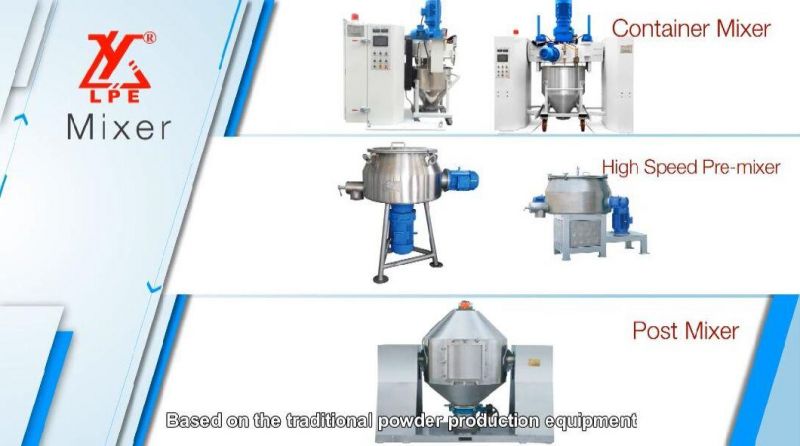

Mixer
1.container mixer
General Description of Automatic Container Mixer:
This serious of container mixer adopts movable container design ,can be applied for the mixing of various kinds of poweder and granular materials . The whole process adopts PLC controlling system ,with homogeneously mixing effect, high production effeciency and no solidified particles .
Working process:
After the cointainer filled with raw materials being pushed to the
working positon ,it will be pneumatically lifted securely connected with the stirring head by the automatic controlling system . The stirring head will tilt together with the container meanwhile , then the mixing blade brings the material into rotary and centrifugal movement with geometrical circle , which ensures optimal mixing result. The container then returnes to the starting position after mixing process completed .
Features Automatic Container Mixer:
1. Processed controlled by PLC ,high automation
2. Mixing during cointainer tilting
3. Homogeneneous mixing High production efficiency
4. No leakage and solidified particle
5 .Pneumatic positioning ,clutching and lifting
6. Easy to clean and maintain
7 Safe to operate
8 Several containers for ciecular operation ,easy color changing
Main Technical Parameter of Automatic Container Mixer:
Volume
(L)
Mixing Powder
(kW)
Crushing Power
(kW)
tilting Power
(kW)
Dimension
(MM)
2.High speed pre-mixer
High Speed Mixer Powder Coating Mixing Machine
Product Description of High Speed Mixer Powder Coating Mixing Machine
This series of mixer has the function of both mixing and crushing applicable for various powder and solid chemical materials. It adopts advanced sealing design to avoid powder leakage.
Well-sealed and no leakage and solidificatioin.
Mixing time controlled automatically with short time and homogeneous mixing effect.
Low temperature, high effciency, easy color change and maintenance.
Safe to operate
Main Technical Parameters of High Speed Mixer Electrostatic Powder Coating Machine For Powder Coating
Model
Volume
(L)
Mixing Time
(MIN)
Mixing Power
(kW)
Crushing Power
(kW)
Dimension
(MM)
PHJ-10

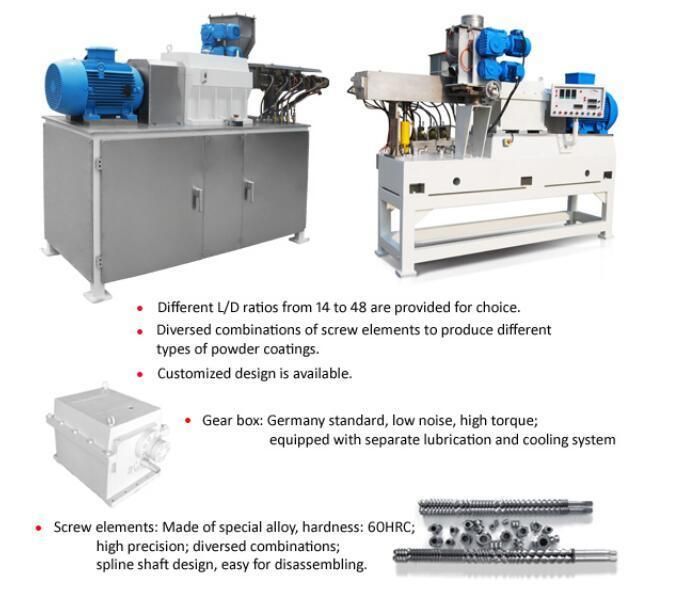

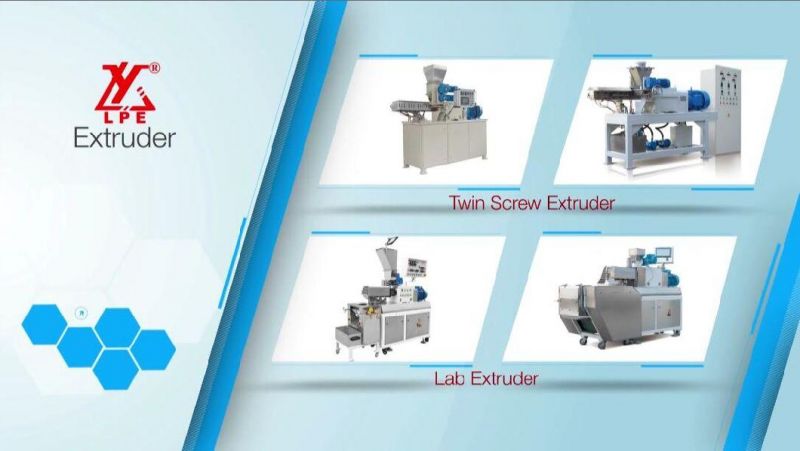

Twin Screw Extruder
Main Technical Parameter
Model
(kg/hr)
(mm)
(mm)
(kW)
(cm)
2.High Efficiency Powder Coating Equipment Air Cooling Belt
YPJ SERIES AIR COOLING BELT
Features of High Efficiency Powder Coating Equipment Air Cooling Belt :
1) Stainless steel belt strips and semi-hermetic cooling system
2) Adjustable thickness of chips and rollers speed
3) Roller and crusher equipped with mechanical overload protection
4) Various models to meet different extrusion output requirements
5) Safe to operate
This series of cooling belt is composed of cooling rollers, stainless steel strips and crushing rollers. The hot-melt materials discharged from extruder will be squeezed and crushed into chips with thickness of 1-1.5mm. Air filtration and heat exchange system can be selectively equipped.
Main Technical Parameters of High Efficiency Powder Coating Equipment Air Cooling Belt
Length (mm)
Width (mm)
Diameter
(mm)
(KW)
(KW)
(mm)
3.Large Capacity Powder Coatings Cooling Belt With Crusher
Product Description of Large Capacity Powder Coatings Cooling Belt With Crusher:
Powder coating cooling belt
This series of cooling belt integrates the process of rolling, cooling and crushing. The hot-melt materials drop down onto the stainless steel belt under which there is chilling water sprayed; the crusher will break the squeezed materials into flakes with thickness of 1-2mm.
Main Technical Parameters of Large Capacity Powder Coatings Cooling Belt With Crusher:
Model
(kg/hr)
(mm)
(mm)
(kW)
(cm)

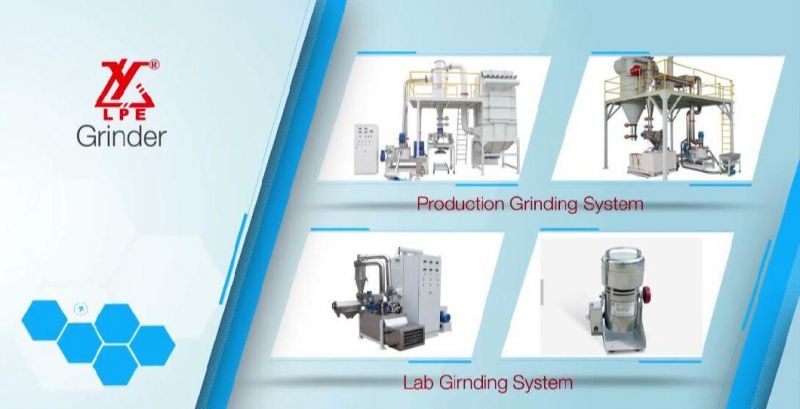

Grinding system(ACM)
Grinding System for Powder Coating
Grinding system
This series of grinding system has functions of high-speed crushing, air classifiering , double cyclone separating, screening, and fine powder collecting, etc., with noise ≤80DB. Best particle size distribution with particle size which can be adjusted freely from 18-60um. This series grinding system has good ATEX anti-explosion design and performance, which has been evaluated by international authorized orgnizations.
Features of Grinding System for Powder Coating
1. Low noise
2. Adjustable particle size distribution
3. High output
4. Temperature monitoring of mill chamber
5. High recovery, ≥ 98%
6. Easy for cleaning and maintenance
7. In accordance with the standard of European ATEX anti-explosion design
8. Safe to operate
9. Accurate weighting system for the finished powder coating.
Main Technical Parameter of Grinding System for Powder Coating
(Kg/h)
(rpm)
(kW)
(kW)
(kW)
(mm)
Details about Grinding System for Powder Coating
1. The main mill disc with pins have passed the testing through the balance measuring instrument. This design can reduce the noise and attrition.
2. The silencer on the end of the fan can reduce the noise effectively.
Our Services
According to different customer requirements, we can provide integral design and production as follows:
Consultation: We can offer plant designers, powder experts, mechanists, electricians and consultants in other industries based on good contact with customers;
Modernization: We can design and make automatic powder coating production lines for customers;
Maintenance: We can provide requirement and standard-oriented maintenance packages, such as inspection of spare parts and maintenance of gear boxes;
Training: We can provide all kinds of trainings, e.g. installation training, commissioning training and maintenance training.
