Fast Delivery Custom Barbed Wire Making Machine, Barbed Wire Machinery
Wuxi Shenda Nail Machinery Factory- After-sales Service：Engineer Traning Service
- Warranty：1 Year
- Transport Package：Suitble for Shipping
- Specification：3100*1130*1500mm
- Trademark：Shenyida
- Origin：Wuxi China
Base Info
- Model NO.：CS
- HS Code：8463300000
- Production Capacity：100PCS,Month
Description
Basic Info.
Model NO. CS HS Code 8463300000 Production Capacity 100PCS/MonthProduct Description
Barbed wire factory/bared wire making machine/barbed wire machinery/Barbed machine manufacturer
Specifications
The machine is mainly suitable for producing all kinds of stocks thorn steel wire, the materials of products could be galvanized wire,PVC coated iron wire, The products are widely used in national defense, railway, highway, agriculture forming etc profession.
CSA barbed wire making machine
| No. | Description | Unit | Specification |
| 1 | Motor | kw | 3 |
| 2 | Main drive shaft speed | r/min | 402 |
| 3 | Unit wire diameter | mm | 2.2-3.0 |
| 4 | Barbed wire diameter | mm | 1.8-2.2 |
| 5 | Barbed pich | inch | 3,4,5 |
| 6 | Twist Number | pcs | 3.5 |
| 7 | Theoretical capaticy | Kg/h | 70 |
| 8 | Total weight | kg | 1200 |
| 9 | Dimension of main part | mm | 2000*1500*1500 |
CSB single wire barbed wire making machine
| No. | Description | Unit | Specification |
| 1 | Motor | kw | 2.2 |
| 2 | Main drive shaft speed | r/min | 355 |
| 3 | Unit wire diameter | mm | 2.2-3.0 |
| 4 | Barbed wire diameter | mm | 1.8-2.2 |
| 5 | Barbed pich | inch | 4,5 |
| 6 | Theoretical capaticy | Kg/h | 40 |
| 7 | Total weight | kg | 4000 |
| 8 | Dimension of main part | mm | 3100*1130*1500 |
CSC Barbed wire making machine
| No. | Description | Unit | Specification |
| 1 | Motor | kw | 2.2 |
| 2 | Main drive shaft speed | r/min | 355 |
| 3 | Unit wire diameter | mm | 1.6-2.8 |
| 4 | Barbed wire diameter | mm | 1.6-2.2 |
| 5 | Barbed pich | inch | 4,5 |
| 6 | Twist Number | pcs | 7 |
| 7 | Theoretical capaticy | Kg/h | 40 |
| 8 | Total weight | kg | 1000 |
| 9 | Dimension of main part | mm | 3000*1000*1150 |

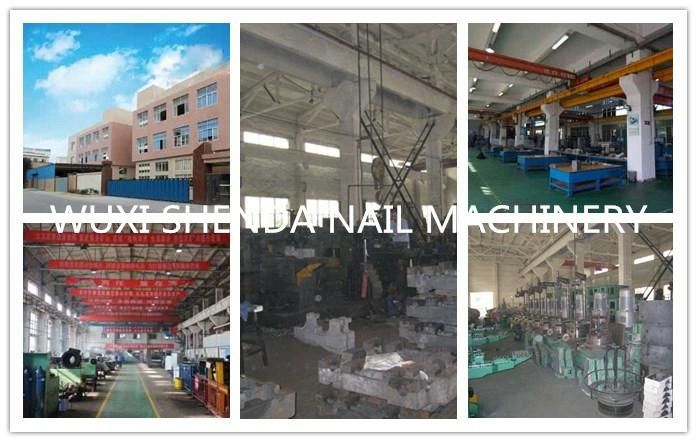

About us:
ΔOur company professional manufactures nail making machine,wire drawing machine and the accessory equipments since 1995
ΔCapacity 1000pcs per year ,customers cover Asia,middle East,Africa and latin-America ariea.cooperate with more than 200 companies.
Δ CE ,ISO9001 certificate ,SGS certificate
Δour engineer arrange for machine accommodation in customer's factory.
