• Model NO.：LXP3060
• Table Type：Knife Table (Teeth Table and Water Table )
• Transmission System：Rack Pinion and Hiwin Linear Rails for X,Y
• Driving System：Stepper Motor and Drivers(Servp Motor Is Optiona)
• Working Voltage：380V,3pH(220V,3pH Is Optional)
• Plasma Generator：Huayuan China and USA Power as Your Requirements
• Arc Mode：Non-Contact Arc, Arc Pressure Adjuster
• Max. Cutting Thickness：8,15,20,25,30,35mm
• Working Material：Steel, Aluminum, Galvanized Sheet, Titanium Plate
• Operating System：Starfire Controller,Start Controller
• Transport Package：Standard Export Packaging
• Specification：800*350*155CM
• Trademark：LXSHOW
• Origin：China Shandong Jinan

Basic Info.

Model NO. LXP3060 Table Type Knife Table (Teeth Table and Water Table ) Transmission System Rack Pinion and Hiwin Linear Rails for X/Y Driving System Stepper Motor and Drivers(Servp Motor Is Optiona) Working Voltage 380V/3pH(220V/3pH Is Optional) Plasma Generator Huayuan China and USA Power as Your Requirements Arc Mode Non-Contact Arc, Arc Pressure Adjuster Max. Cutting Thickness 8/15/20/25/30/35mm Working Material Steel, Aluminum, Galvanized Sheet, Titanium Plate Operating System Starfire Controller/Start Controller Transport Package Standard Export Packaging Specification 800*350*155CM Trademark LXSHOW Origin China Shandong Jinan

Product Description

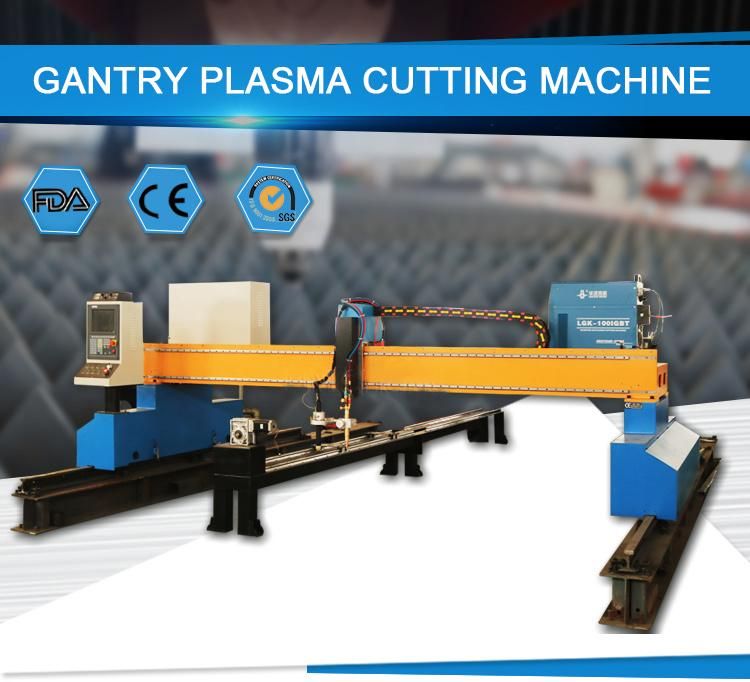

3060 mini small  portable gantry style aluminum stainless steel metal plate gas CNC plasma cutting machine with flame





Portable CNC Plasma cutting metal Features:



1).The beam uses light structural design,with good rigidity structure, light deadweight and small movement inertia.

2). The gantry structure, Y axis used dual-motor dual-driven system, X, Y, Z axis all use dual-straight
rail that make
the machine driving smoothly with high-precision.
Completely solve the traditional manual processing methods. Improve the efficiency of several times.


Application:

Applicable Industries

Ship Building,Construction Equipment,Transport Equipment,Aerospace Industry,Bridge Building,

Military Industrial,Wind Power,

Structural Steel,Boiler Containers,Agriculture Machinery,Chassis Electrical Cabinets,Elevator

Manufacturers,Textile Machinery,

Environmental ProtectionEquipment,Ect.

Applicable Materials

Aluminum,Copper,Titanium,Nickel,Iron,Galvanized Sheet,White Steel,Titanium Plate,Carbon

 Steel,Stainless Steel,Alloy Steel,

Composite Metal

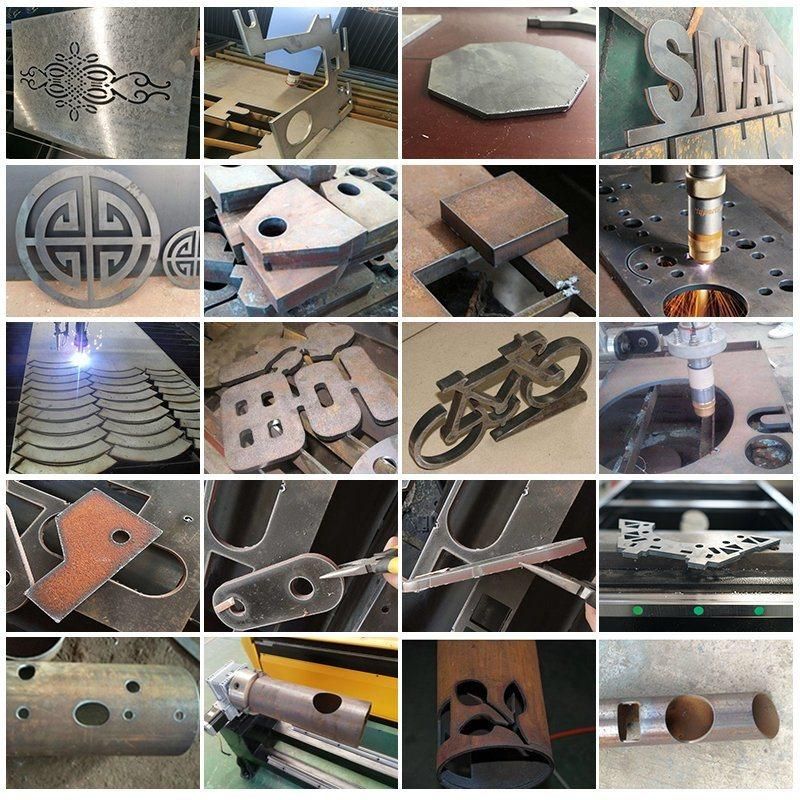

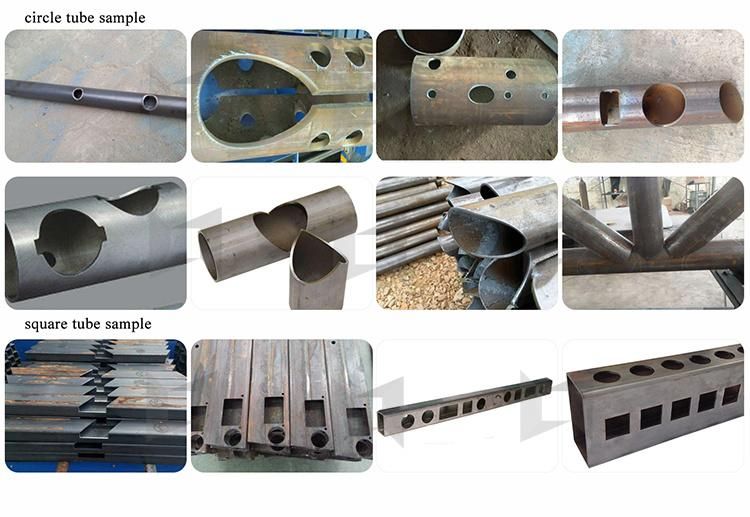

Samples:




Technology Parameter:


1	Model	LXP3060
2	Travel(X/Y)	3000x6000mm
3	Plasma current	Huayuan-63A.100A,120A,160A,200A Hypertherm --45A,65A,85A,105A,125A,200A(Optional)
4	Cutting thickness	0-200mm (with flame cutting)
5	Input voltage	3 phase 380V
6	Power	8.5KW
7	Cutting speed	0-12000mm/min
8	Repeat positioning accuracy	±0.05mm
9	Process precision	±0.35mm
10	Support software	drawing software--CAD nesting software--Australia fastcam cutting path file--artcam, type3 etc
11	Gross weight	1800kgs
12	Packaging size	2270*3780*1710mm



Company Information:

FAQ

Q1 :How about warranty?

A1:2 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.



Q2:2 I don't know which one is suitable for me ?

A2:Please tell me your

1) Max work size:choose most suitable model.

2) Materials and Cutting thickness::choose most suitable power.



Q3:Payment terms?

A3:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.



Q4:Do you have CE document and other documents for customs clearance?

A4:Yes,we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.



Q5:I don't know how to use after i receive Or i have problem during use,how to do?

A5:

1) We have detailed user manual with pictures and CD,you can learn step by step.And our user manual update every month for your easy learning if there is any update on machine.

2) If have any problem during use,you need our technician to judge

The problem elsewhere will be solved by us. We can provide team viewer

/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.



Q6:Delivery time

A5:General configuration:7 days. Customized:7-10 working days.
