• Model NO.：BO-DCM
• Automatic Grade：Automatic
• Certification：CE
• Wire Rope Diameter：ф1.2-1.5mm
• Speed：6.2 S,PCS
• Voltage：AC 380V
• Machine Weight：1050kg
• Machine Dimensions：2545*1200*1720 mm
• Specification：Machine Dimensions: 1700*1200*2000mm
• Trademark：bobo
• Origin：China

Basic Info.

Model NO. BO-DCM Automatic Grade Automatic Certification CE Wire Rope Diameter ф1.2-1.5mm Speed 6.2 S/PCS Voltage AC 380V Machine Weight 1050kg Machine Dimensions 2545*1200*1720 mm Specification Machine Dimensions: 1700*1200*2000mm Trademark bobo Origin China

Product Description

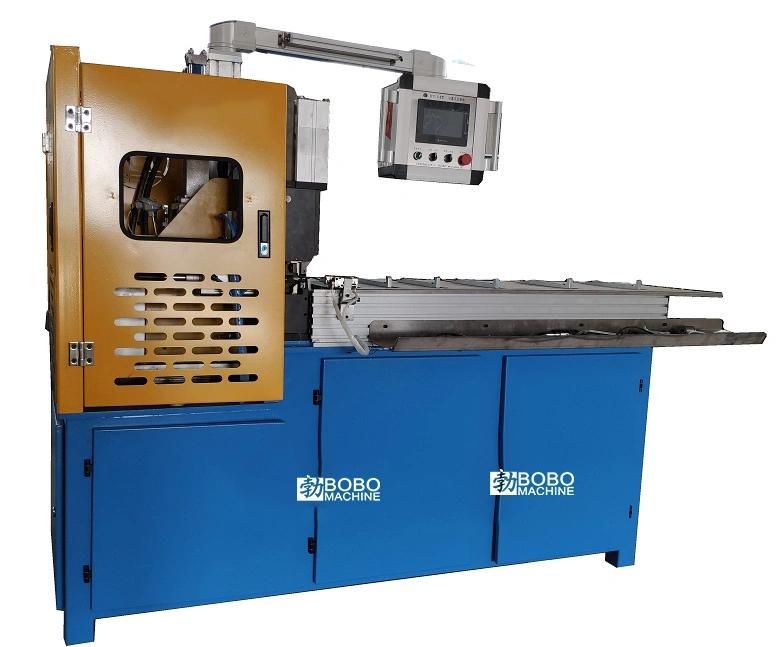

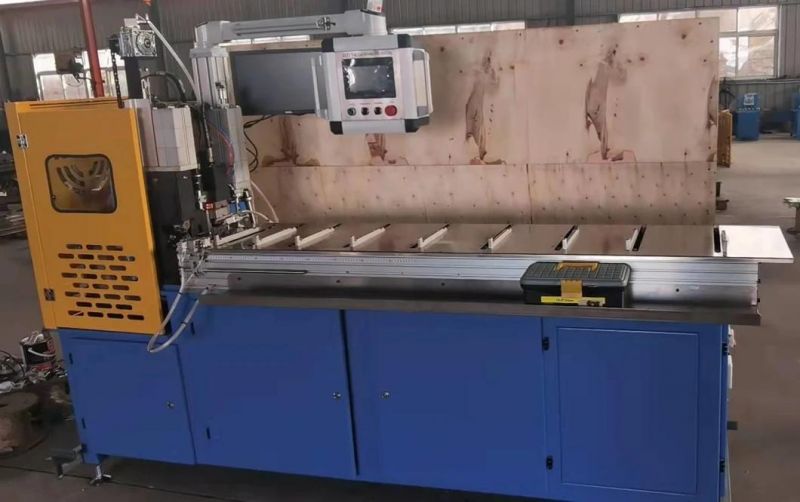

Hot Chamber Automobile Lock Clutch Wire Lead Seal Die Casting Machine
Design concept
This Integrated automatic die casting machine can deal customized professionally,which can deal cutting to length, patterning,die casting and deburring in one machine.

Special automation control systems, security monitoring systems, energy-saving design which makes this die casting machine has high reliability, efficiency and automation. Its production of zinc alloy, lead alloy, tin alloy products, with the best surface quality, polishing, plating, painting, it has been widely used in manufacturing gear, electrical and electronic castings, auto parts and other fields.

Features

1. Automatic cutting stroke, patterning, die casting, deburring machine;
2. The fastest line speed of a single piece from semi-finished product to finished product can reach 6 seconds;
3. Can be customized with finished printing, finished tension length measurement, etc;
4. The heating pipe adopts imported processing technology, and the furnace nozzle is made of cast iron;
5. The maximum heating power is 3.2Kw, and the maximum insulation power is about 1.2kW;
6. When making an appointment, no one will turn on or turn off automatically;
7. The equipment is equipped with mold closing detection, automatic discharging and other devices
8.

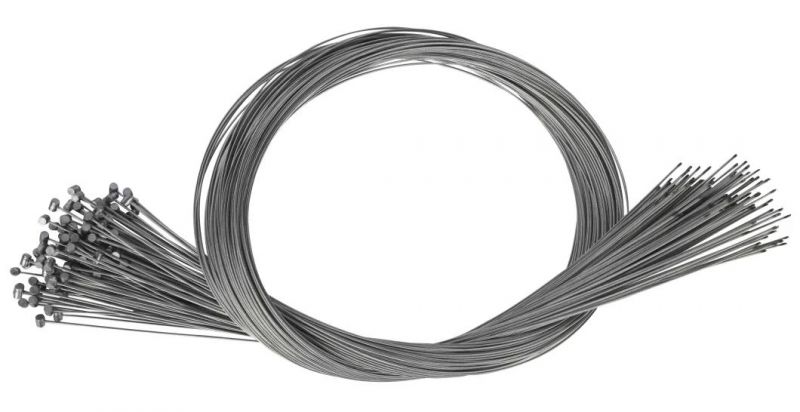

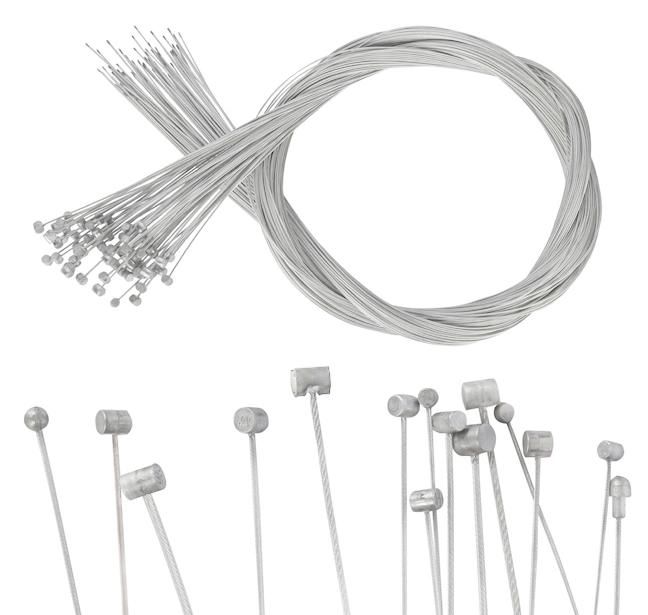

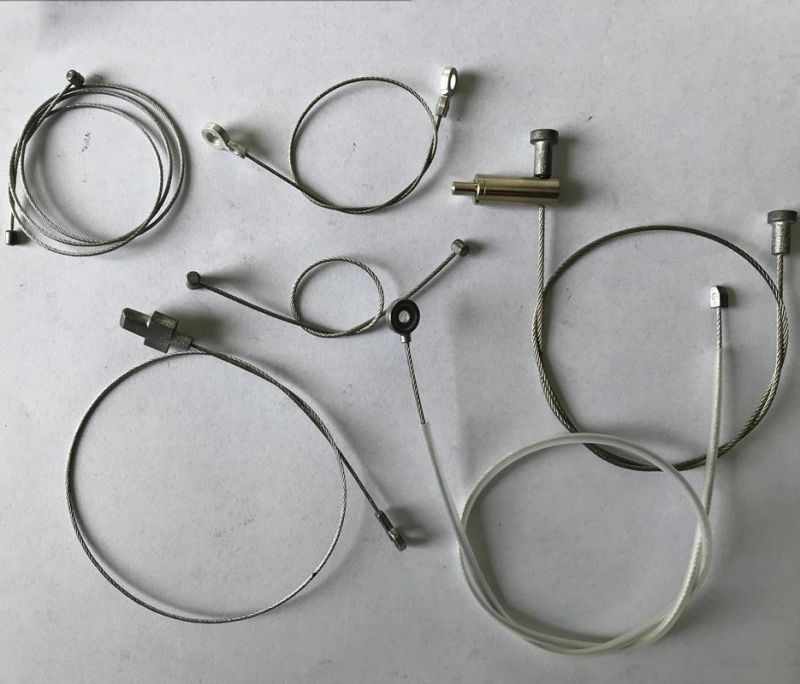

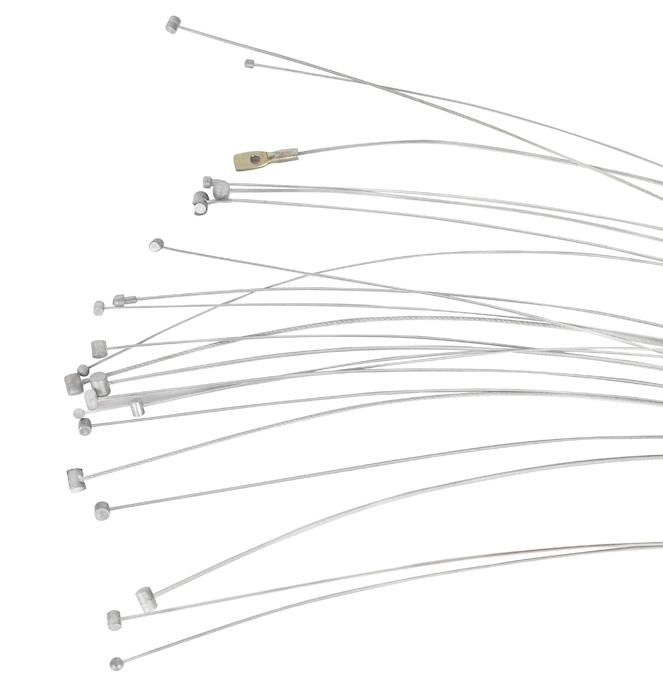

9. What can this machine makLead fishing, lead sinker, car brake cable, motorcycles brake cable,bike brake cable,key, knitting needle,electrical parts and so on...
10. How about the training?
    Training to be provided at no cost in China during the warranty period. Training include operation,control,and maintenance of the machine.
    Overseas training and support will be charge with a minimum of engineer visa,insurance, around flight ticket,accommodation(according to the actual fee) and labor cost(150usd/day).
    Specifications:

	Name	Parameters
1	Speed	6.2 s/pcs
2	Wire rope diameter	ф1.2-1.5mm
3	Voltage	AC 380V
4	Power	6kw
5	Machine weight	1050KG
6	Machine Dimensions	2545*1200*1720 mm
