• Model NO.：LMD-120
• HS Code：84752919
• Production Capacity：10 Sets ,Month

Basic Info.

Model NO. LMD-120 HS Code 84752919 Production Capacity 10 Sets /Month

Product Description

Hydraulic Single Head Aluminum Corner Combining Machine



1. Equipment features

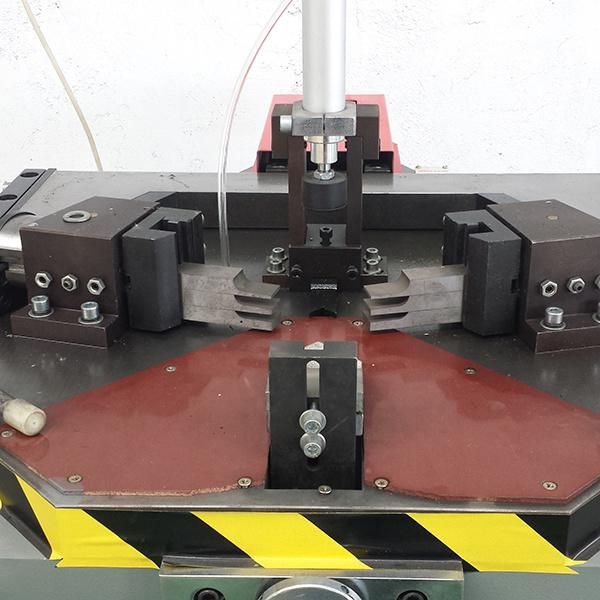

1). The machine is used for production line of hi-grade alu-alloy doors and windows. mainly used for extrusion and connection of 90º seam casement window with angle jointing operation, place an angle-alu in cavities of two driven striking blocks punch towards the flute of angle-alu, Extruding the seam of two profiles makes strength, efficiency and precision of the connection higher than using any means for connection.
2).This machine is used for combining the aluminum profile together to be a whole frame after processed.

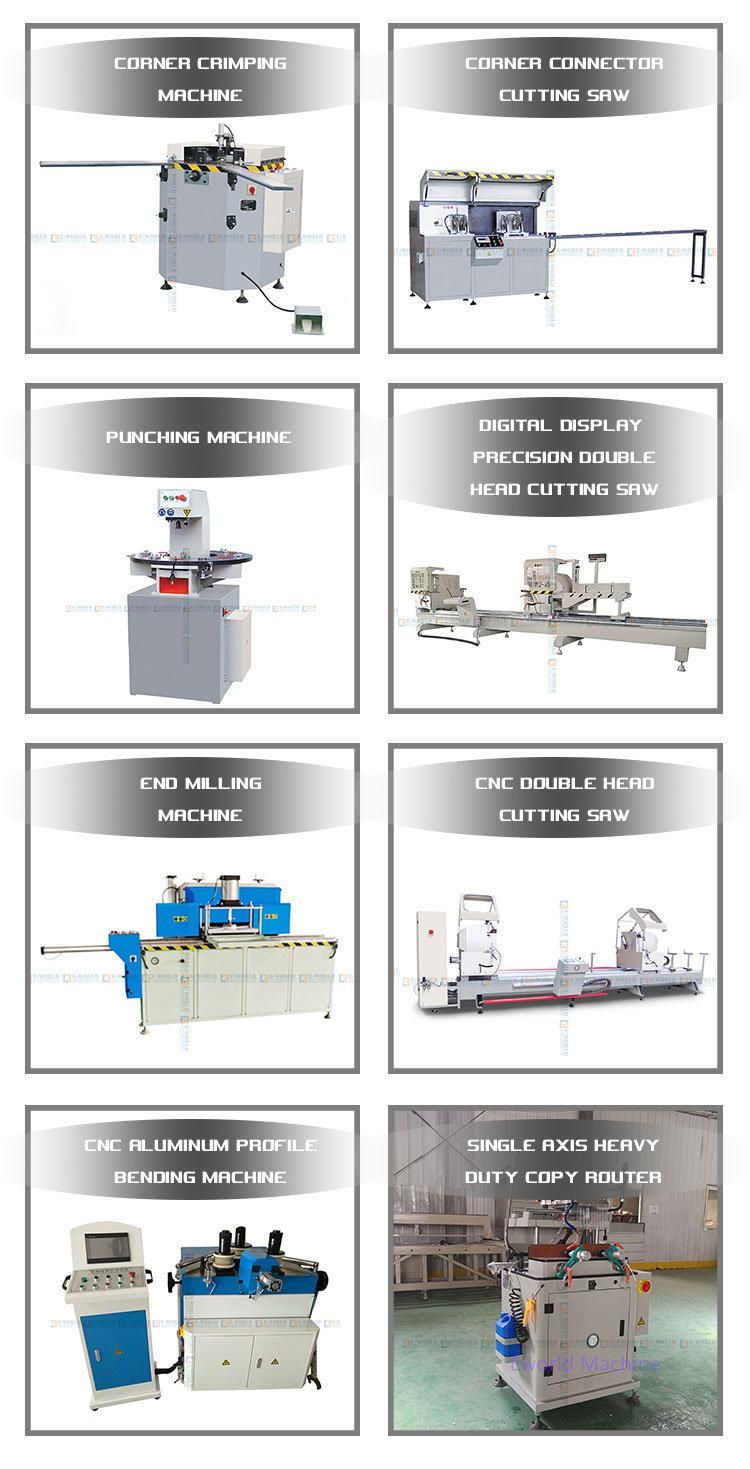

3).We also have double head corner combining machine, and four corner combining machine, if you need, I can also list in the quotation, but generally, from begining production, use the single head type is enough for your Aluminum window door production.
4).Before you buy the machine, please make sure then tell me your local power supply,then we can make the right according to your true voltage.
5).We have in store, if you need, we can ship in short time for you.

2.Technical parameters


Model number	LMD120
Voltage	380V 50Hz
Motor power	1.5 Kw
Air consumption	2L/min
Most pressure	16 Mpa
Air consumption pressure	0.5-0.8 Mpa
Contour dimension(L×W×H)	830×1000×1200mm
Weight	380Kg
