Mattress Spring Assembly Machine(LR-PSA-75P)
Guangzhou Xidengbao Mattress Machinery Co., Ltd.- Spring Diameter:35-80mm
- Spring Height:80-200mm
- Automatic:Automatic
- Type:Mattress Machines
- Mattress Width:300-2150mm
- Air Consumption in Total:Approx.30m3,H
Base Info
- Model NO.:LR-PSA-75P
- Working Temperature:+5 Degree to +45 Degree
- Glue Shape:Pallet or Pieces
- Inner Dia. of Fabric Roll:Min.65mm
- Outside Dia. of Fabric Roll:Max.600mm
- Transport Package:Plywood Pallet
- Trademark:XIDENGBAO
- Origin:China(Mainland)
- Production Capacity:20 Sets,Month
Description
Basic Info.
Model NO. LR-PSA-75P Working Temperature +5 Degree to +45 Degree Glue Shape Pallet or Pieces Inner Dia. of Fabric Roll Min.65mm Outside Dia. of Fabric Roll Max.600mm Transport Package Plywood Pallet Trademark XIDENGBAO Origin China(Mainland) Production Capacity 20 Sets/MonthProduct Description
Mattress Spring Assembly Machine(LR-PSA-75P)1.assemble the pocket springs into a unit
2.5 ~ 6 minutes/unit
3.best selling
Technical Characteristics:
1. High Speed
2. Easy to adjust & operate
3. Movable pocket spring buffer/Quickly & expediently to feed pocket springs
4. Produces 2.5-3 rows per minute.
5. Glues the non-woven up and down/set which rows glued up and down.
6. Cross conglutination (offset) or side-by-side conglutination (parallel) optionally.
7. Continuous or interrupted glue-extruding mode according to requirement ,save up to 30% hot melt cost when interrupted gluing mode selected.
8. Famous glue-application system (Nordson or Robatech)/Electronic components are CE-conform and Off the shelf (such as: Mitsubishi, SMC, CKD, Schneider)
9. Pocket spring buffer with movable plates inside to make the distance among the springs equably.
Technical Specification:
Spring Type | |
Production Speed | 3-3.5 Rows/Minute |
Spring Diameter | Φ35-80mm |
Spring Height | 80-200mm |
Spring Coils | 4-8 Coils |
Fabric width | 300-2100mm |
Fabric Material | 50-150G/M2 |
Lubrication | Fully Automatic Standard |
Control | PLC |
Power Supply | 3Φ 380V/220V 50/60HZ 4.5KVA Input Fuse 50A |
Air Consumption | Approx.20M3/H 0.8Mpa |
Operative Temperature | 0 o C- +45 o C |
Machine weight | 1350KG |
Company Exhibition:

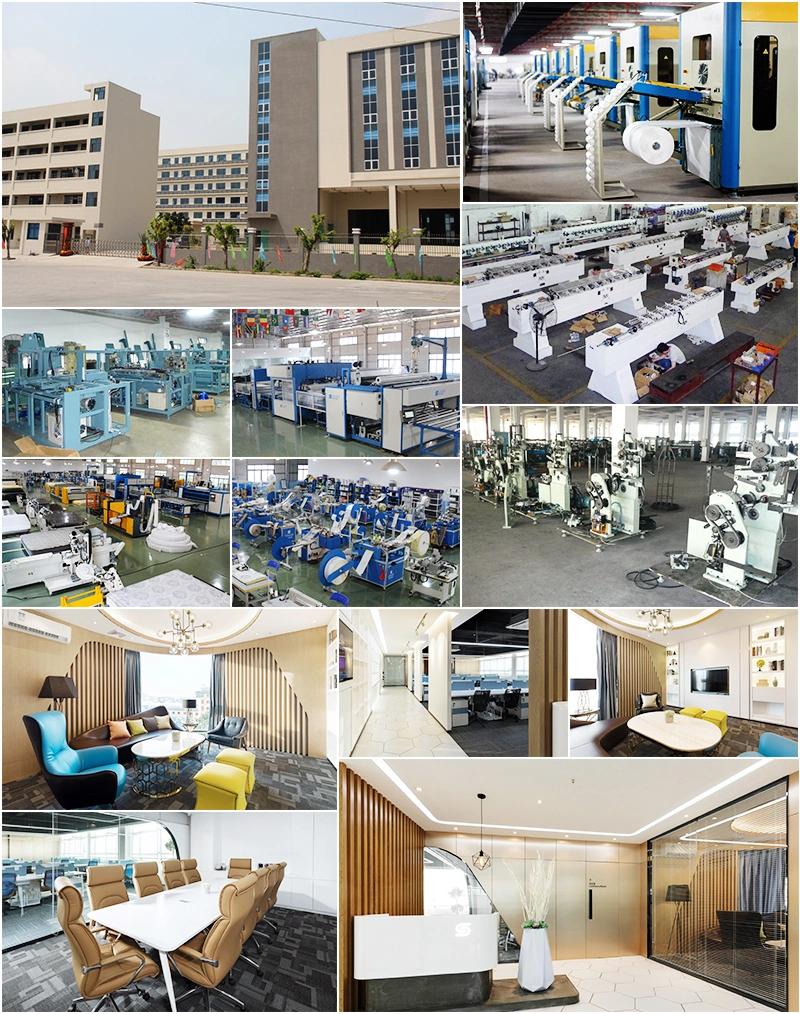

Factory Photos

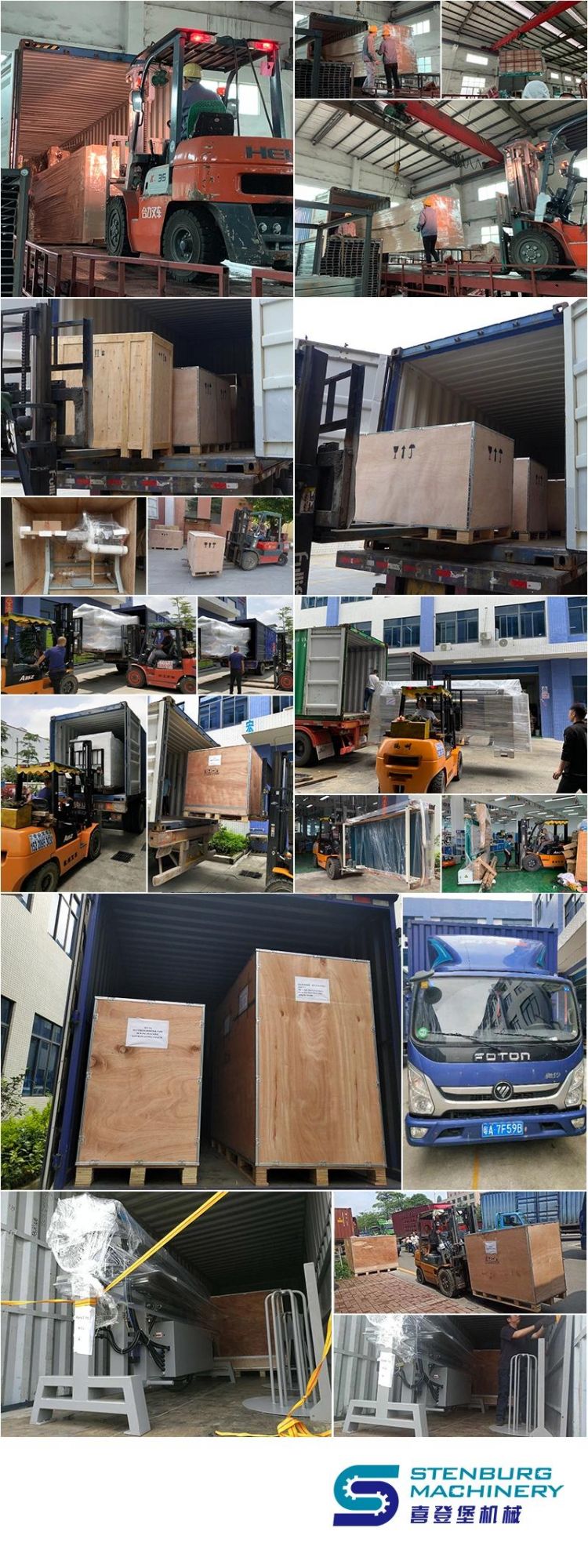

Loading Factory
