Metallic Processing Machinery

Home > Product > Metal Engraving Machinery

CNC Router 6060 3 Axis Mold Carving Machine

Jinan Remax Machinery Technology Co., Ltd.
  • Carving Material：Aluminum
  • Controlling Mode：CNC
  • Main Axle Rotational Speed：≤24000rpm
  • Certification：CE
  • Warranty：12 Months
  • Customized：Customized

Base Info

  • Model NO.：Remax 6060 mold making machine
  • Condition：New
  • Voltage：AC220V,380V
  • Motor Type：Servo Motor
  • Positioning Accuracy (mm)：0.02 mm
  • X,Y,Z Repositioning Accuracy：0.02mm
  • Max Travel Speed：18m,Min
  • Dimension(L*W*H)：2170*1460*1870
  • Control System：Nc Studio, Syntec, Mach3, DSP, Richauto
  • Spindle Power：3.0,5.5 Kw Water Cooling Spindle
  • Frame：Cast by Iron
  • Transport Package：Export Standard Wood Package
  • Specification：600*600
  • Trademark：Remax
  • Origin：China
  • HS Code：8465990000
  • Production Capacity：200 Set,Month

Description

Overview Product Description

Product ParametersXYZ working area600*600*200mmXYZ accuracy0.02mmXYZ Repositioning Accuracy0.02mmTable SurfaceT-slot TableFrameCast by ironXYZ StructureHIWIN square guide rail and Ball screwMax, Power Consumption(without spindle) 3kwMax. Rapid Travel rate16000mm/minMax working speed10000mm/minSpindle power3.0kw/5.5kw water cooling spindleSpindle speed0-24000rpmDriver and motorsLeadshine Servo Motor and driverWorking voltageAC220V/380V, PH3, 50/60HZCommand languageG codeControl systemDSP / NCstudio /Mach3SoftwareType3 / Artcam /UcancameV9

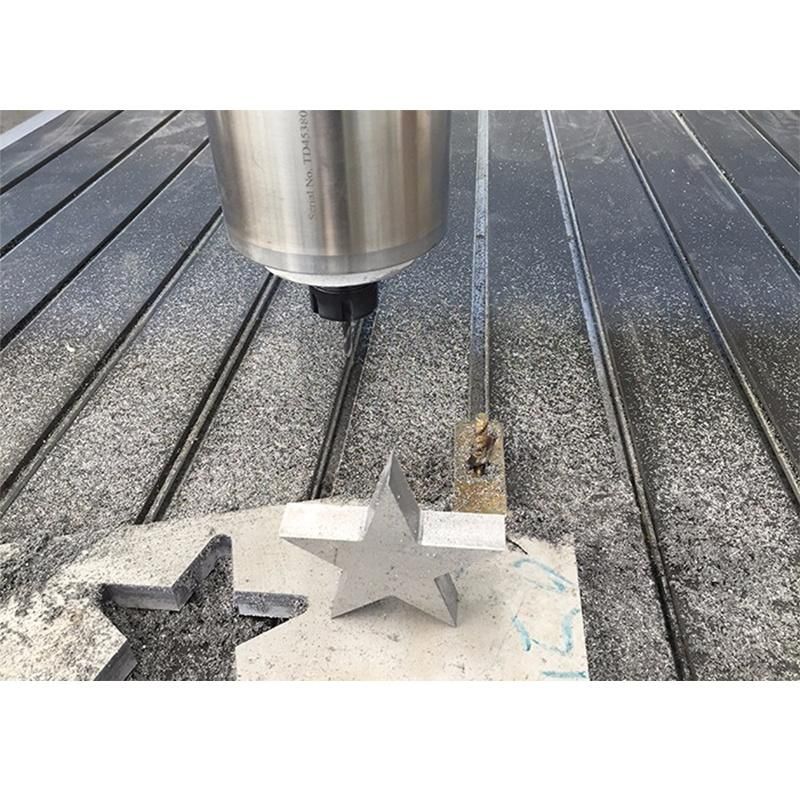

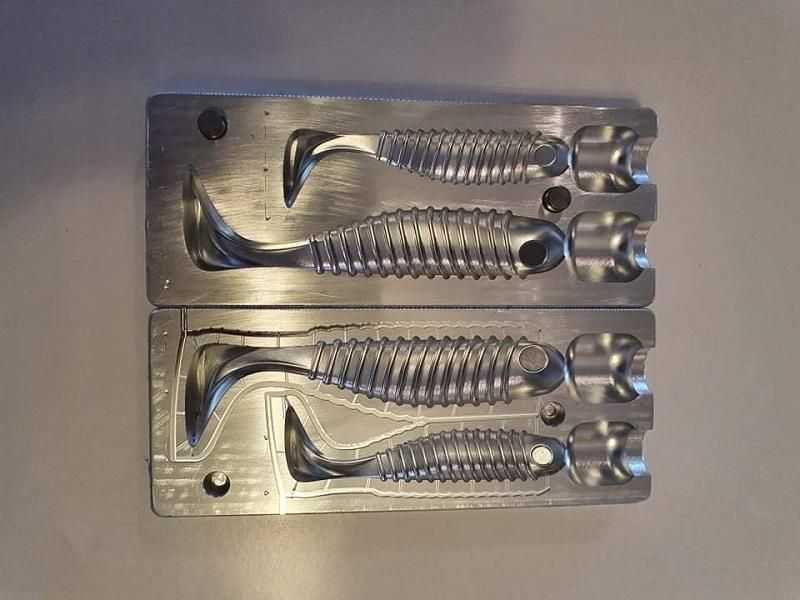

SAMPLE

CNC Router 6060 3 Axis Mold Carving MachineCNC Router 6060 3 Axis Mold Carving MachineCNC Router 6060 3 Axis Mold Carving Machine

Certifications

CNC Router 6060 3 Axis Mold Carving Machine

Packaging & Shipping

CNC Router 6060 3 Axis Mold Carving Machine

Company Profile

CNC Router 6060 3 Axis Mold Carving MachineFAQ

Q1.Manufacturer or trader?
We are CNC ROUTER machine factory.

Q2.Deliver time of cnc router machine?
For standard size and configuration CNC router machine, the delivery time is 15-20 days,
For 4 axis and 5 axis series machine, the delivery time is about 25 days.
Thus, to arrange machine delivery immediately, it is better to make a 100% payment.

Q3.Can you send cnc router machine to my home?
Yes. The shipping agent we have long time cooperation is famous in China, and they can offer affordable FCA, FOB, CIF, DDU, DDP price. If your receiver address is Business District, the truck for deliver would be a small one.
