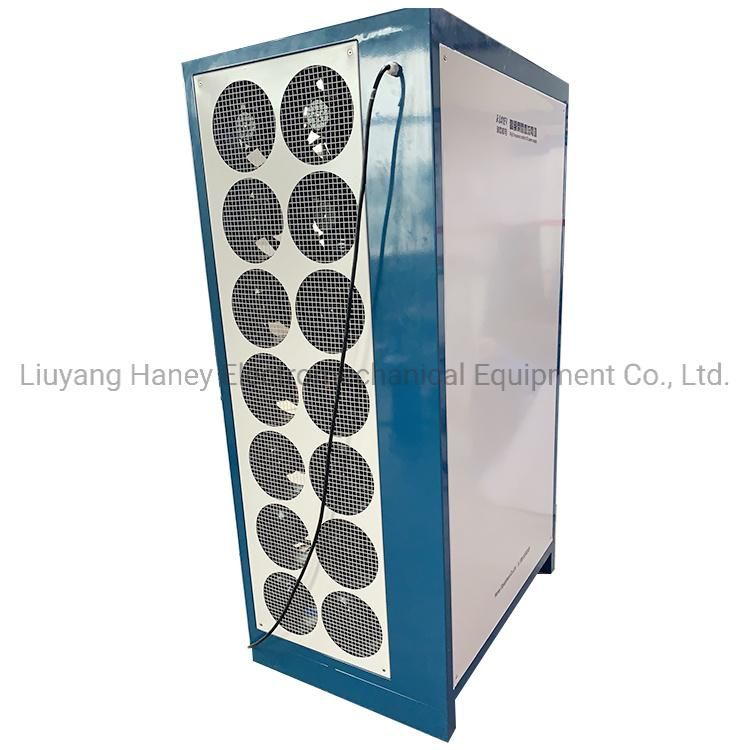

Haney CE 20000A High Frequency Power Supply for Copper Electrowinning Adjustable Rectifier Plating Machine
Liuyang Haney Electromechanical Equipment Co., Ltd.- Voltage：380V
- Automatic Grade：Automatic
- Warranty：1 Year
- Certification：RoHS, CE
- Application：Chrome,Copper,Zinc,Nickel,Gold,Silver Plating
- Output Current：2000A0
Base Info
- Model NO.：HN-20000

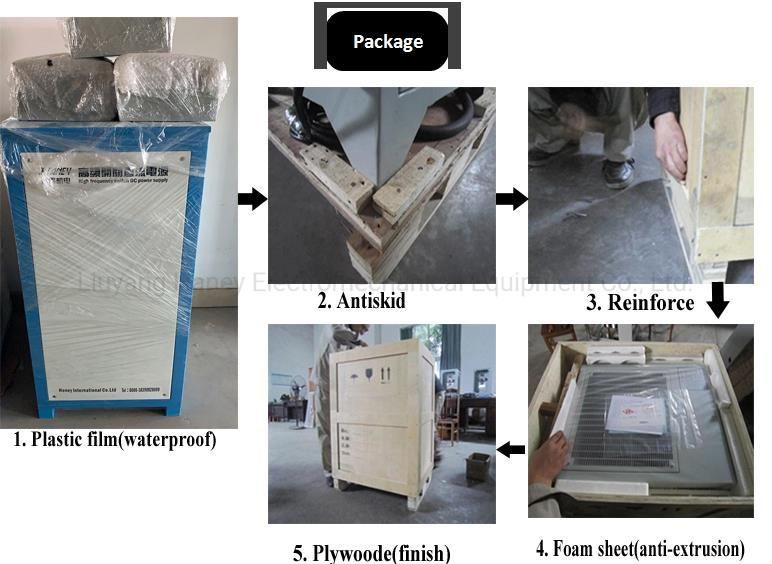

- Package：Wooden Case
- out Frequency：50,60kHz
- Shipping Way：by Express or Sea
- Product Name：IGBT Switch DC Power Supply
- Transport Package：Wooden Case
- Specification：45kgs
- Origin：China
- HS Code：85044099
- Production Capacity：1000
Description
Basic Info.
Model NO. HN-20000 Package Wooden Case out Frequency 50/60kHz Shipping Way by Express or Sea Product Name IGBT Switch DC Power Supply Transport Package Wooden Case Specification 45kgs Origin China HS Code 85044099 Production Capacity 1000Product Description
Haney CE high-frequency 20000a power supply for copper electrowinning adjustable rectifier plating machine
Haney manufactures electroplating equipment to customer specification for electroplating, anodizing, Galvanized, Hard chrome, electrophoretic coating, wastewater treatment- in fact almost any surface would be workable from the dc rectifier.
Product Description1.Infineon drive chip,Infineon IGBT,China SL nitrates,rectifier bridge,Germany;
2.Running state:24hours operation with a full load;3. Full-bridge high-frequency;
4.Digital display,5m remote control;
5.CE approved;6.Forced air or water cooling;
7.It protect against under-voltage,over-voltage,phase loss,short circuit,over-current and over-heating;
8.It is used for electrochemical finishing, metal surface treatment;
9.All specifications can be custom-made as per your requirement.

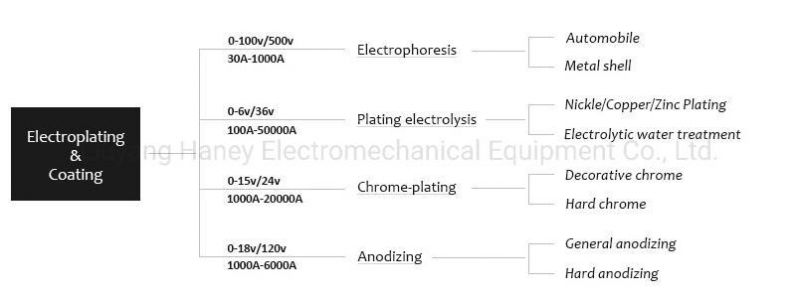

Application:
Tech Specifications:| Input voltage | 3-phase 380v/400v/418v/480v±15% or single-phase 110v/220v±15% 50Hz |
| Output rated value | Output current:0-30000A,Output voltage:0-300v adjustable |
| Cooling method | Forced air cooling/water cooling |
| Control accuracy | Less than ±1% of the rated value |
| Operation control mode | The stable voltage or current |
| Communication interface | According to customers' requirements, local/remote operation modes can be chosen, such as the controlled panel, control box, RS485, LCD Touch screen. |
| Rectifier mode: | IGBT inverter soft switch rectifier, 5% energy-saving comparing with common switch rectifier power supply, 15-25% energy-saving comparing with thyristor rectifier |
