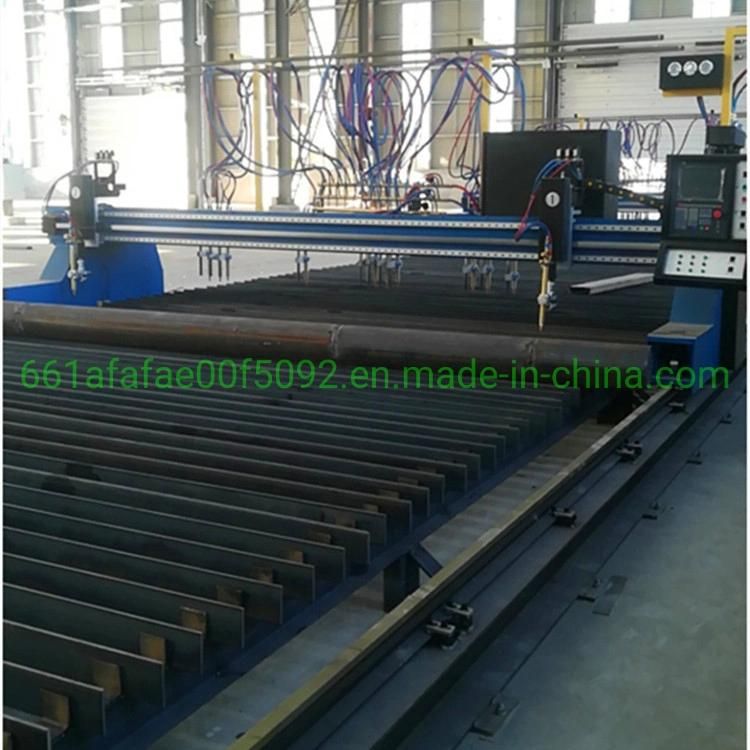

Gantry CNC Plasma Oxyfuel Flame Straight Strips Cutting Machine H Beam
Wuxi Lemar Machinery Equipments Co., Ltd.- After-sales Service：Overseas Engineer
- Warranty：12 Months
- Customized：Customized
- Layout：Horizontal
- Cutting Material：Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
- Automatic Grade：Automatic
Base Info
- Model NO.：CNC
- Cutting Mode：Gas Cutting
- Model：CNC Series Cutting Machine
- Cutting Gas：Oxyacetylene Oxygen,Oxyfuel Propane Acetylene
- Flame Cutting Speed：1000 mm,Min
- Rails Support：38 Kg,M
- Servo Drive System：Japan′s Panasonic All-Digital AC Servo

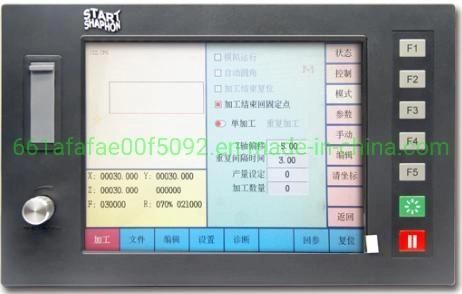

- Control Mode：CNC Control
- Effective Cutting Area：3000 mm*8000 mm or Customized
- Cutting Power：China Lgk or USA Hypertherm
- Power：380 V~440 V
- Plasma Cutting Speed：3500 mm,Min
- Plasma Cutting Thickness：1-30 mm According to Clients Plasma Cutting Source
- Optional：Flame or Flame and Plasma Cutting
- Flame Cutting Thickness：6-200 mm
- Medium Thickness Torch：Cutting Thickness 500-800mm
- Gas or Plasma Torch Number：1 or 2
- Transport Package：Standard Package
- Specification：Flame Acetylene Gas or Liquefied CNC cutter
- Trademark：Lemar
- Origin：Wuxi, China
- HS Code：8461909000
- Production Capacity：1000 PCS,Year
Description
200mm/min
CNC-4000 4000mm 3200mm CNC-5000 5000mm 4200mm CNC-6000 6000mm 5200mm CNC-7000 7000mm 6200mm CNC-8000 8000mm 7200mm CNC-9000 9000mm 8200mm
Following materials are suitable for CNC plasma flame cutting:

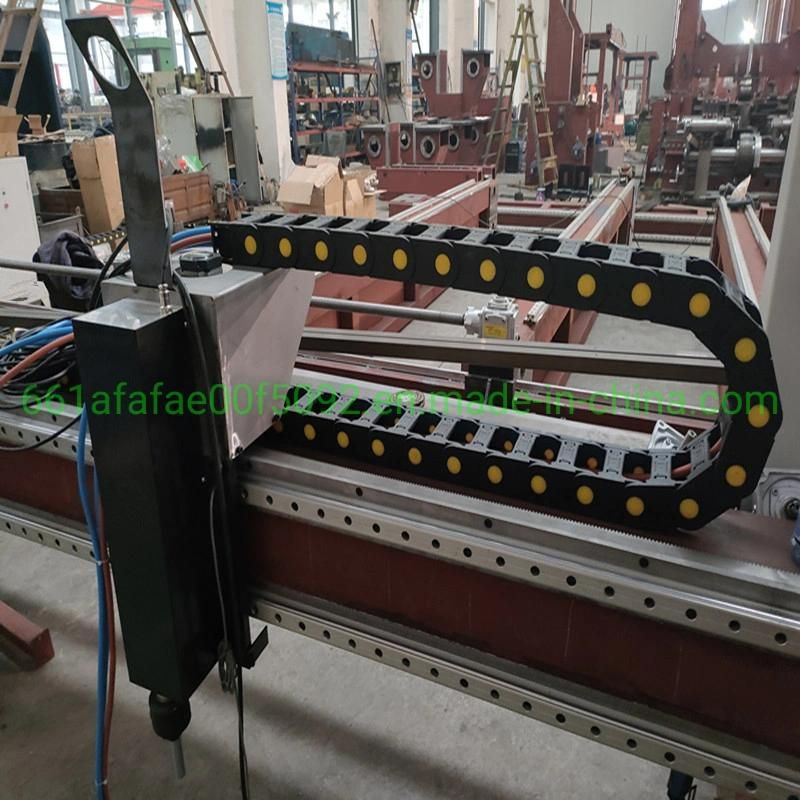

3. The side of the drive end beam is equipped with a horizontal guide wheel. By adjusting the eccentric shaft, the guide wheel presses the rail to ensure the stability and accuracy of the plasma cutting machine
4. Longitudinal/transverse drive adopts rack-and-pinion flexible transmission technology without gaps, and the rack accuracy is above level 7 grade
5. The longitudinal guide rails are made of high-strength rails, all contact surfaces of the rails of the CNC flame plasma cutting machine are precision machined, and a precision grinder frame is installed on the outside of the rails
6.The steel plate CNC plasma gas cutting machine can choose the automatic igniter and the torch height controller according to the user's requirements, which is easy to operate
Applicable industries:
Industrial and General Manufacturing
Mining industry
Pressure vessel
Ship/Barge Building
Automobile manufacturer
Wind tower manufacturer
Steel structure and other industries
Following materials are suitable for CNC plasma flame cutting:
3. The side of the drive end beam is equipped with a horizontal guide wheel. By adjusting the eccentric shaft, the guide wheel presses the rail to ensure the stability and accuracy of the plasma cutting machine
4. Longitudinal/transverse drive adopts rack-and-pinion flexible transmission technology without gaps, and the rack accuracy is above level 7 grade5. The longitudinal guide rails are made of high-strength rails, all contact surfaces of the rails of the CNC flame plasma cutting machine are precision machined, and a precision grinder frame is installed on the outside of the rails
6.The steel plate CNC plasma gas cutting machine can choose the automatic igniter and the torch height controller according to the user's requirements, which is easy to operate
Applicable industries:
Industrial and General Manufacturing
Mining industry
Pressure vessel
Ship/Barge Building
Automobile manufacturer
Wind tower manufacturer
Steel structure and other industries
