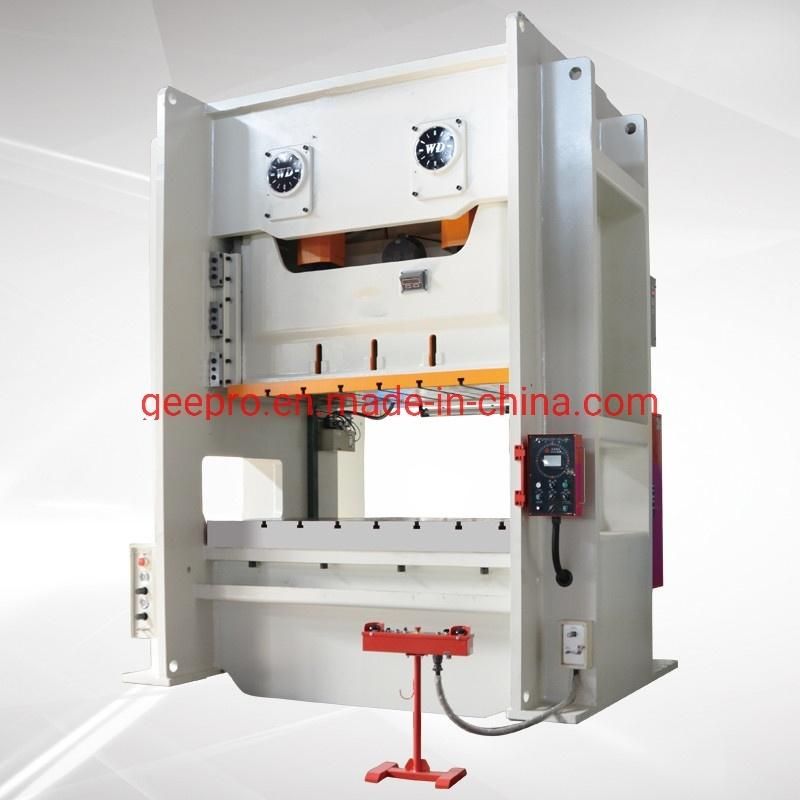

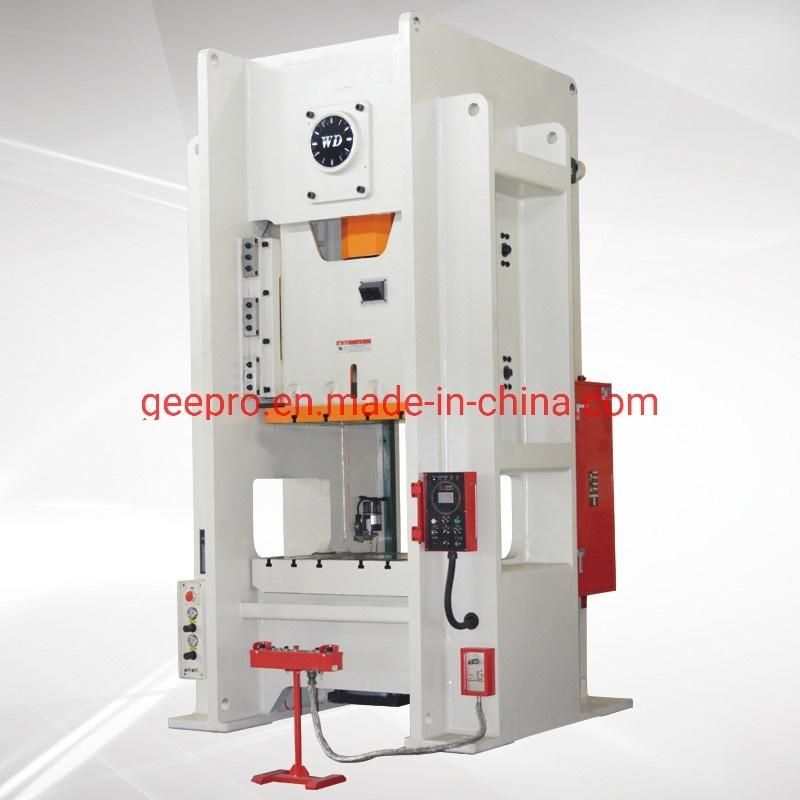

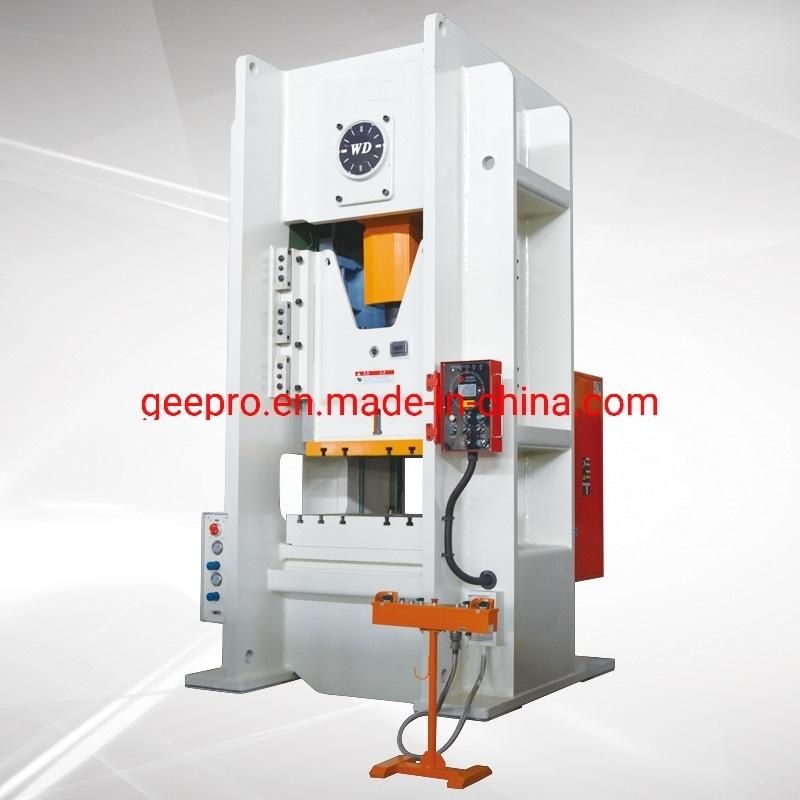

Stock H Frame 160ton 200ton 250t Stamping Press Machine for Die Cutting
Wuxi Geepro Machinery Import&Export Co., Ltd.- Type：Power Press
- Forging Forming Method：Mold Forging
- Power Source：Pneumatic
- Feature：High Efficiency
- Certification：CCC, ISO9001, CE
- Warranty：24 Months
Base Info
- Model NO.：GEEPRO
- Customized：Customized
- Advantage：Use Widely
- Condition：New
- After Service：on-Site Installation
- Guarantee：18months
- Motor：Siemens
- Key Electronic Components：Schneider
- PLC：Siemens
- Valve：Rexroth
- Transport Package：Wooden Box
- Specification：standard
- Trademark：GEEPRO
- Origin：China
- HS Code：84629201
- Production Capacity：300-500PCS,Year
Description
Nominal Capacity KN 1600 2000 2500 3150 4000 5000 6300 Nominal Stroke mm 6 6 6.5 7 8 8 10 Slide Stroke Length S mm 180 200 220 220 250 250 250 H mm 130 150 160 160 180 Slide Stroke Fixed S times/min 45 35 30 30 25 20 20 Variable times/min 25-50 25-45 20-35 20-35 20-30 15-25 15-25 Fixed H times/min 60 45 45 45 35 Variable times/min 40-70 35-60 30-55 30-55 30-40 Max. Die Set Height S mm 400 450 500 550 600 650 650 H mm 425 475 530 580 635 Die Height Adjustment mm 110 110 120 120 120 120 120 Distance Between Uprights mm 1100 1200 1300 1350 1450 1650 1800 Side Openning Size F x B mm 650 750 800 850 900 1000 1100 H 350 420 430 480 520 650 650 Bolster Size F x B mm 650 750 800 850 900 1000 1200 L x R 1000 1100 1200 1250 1350 1500 1700 Bolster Thickness mm 165 180 190 190 200 220 220 Slide Bottom Size F x B mm 600 700 750 800 850 950 1200 L x R 750 850 950 1000 1100 1250 1400 Bolster Surface Height mm 1005 1125 1205 1215 1225 1225 1400 Handle Hole Size Dia mm 65 65 70 70 80 80 80 Depth 90 90 95 90 100 100 110 Overall Size F x B mm 2200 2300 2500 2600 2700 3100 3340 L x R 1780 2000 2050 2200 2370 2600 3000 H 3800 4200 4500 4550 4900 5400 5550 Motor Power Kw 15 18.5 22 30 37 45 75 Weight Kg 16000 22000 27500 30000 36500 47500 75000 Press Pressure Mpa 0.5
