• Model NO.：YX65-400,425
• Effective Width：400,425mm
• Thickness for Steel：Q235-Q345(Steel):0.5-0.8mm
• Thickness for Aluminum：(Al-Mg-Mn):0.7-1.0mm
• After-Sales Service：Engineers Available to Sevice Machinery Overseas
• Transport Package：Standard Package for Export
• Specification：YX65-400-425
• Trademark：XHH
• Origin：Xiamen of China
• HS Code：8455229090
• Production Capacity：10-15 Sets,Month

1.SizeYX65-300-400-500 2.Dimension6500*1800*1500mm3.Weight6000KGS4.Motor Power7.5KW5.Hydraulic Power2.2KW6.Voltage380V/50HZ/3PH7.Forming Steps13 steps8.Forming Speed8-15m/min9.Effective Width300mm,400mm,500mm10.Material of Width470mm,575mm,680mm

11.

Min.Width of tapered roofing250mm

12.

Min.Length of tapered roofing1000mm13.Thickness for Aluminum0.5-1.0mm14.Thickness for Steel0.5-0.8mm15.Standing Height of Roofing65mm

16.

Thickness for common use

and testing machine

 0.6mm, 0.7mm

2 Main Accessories:

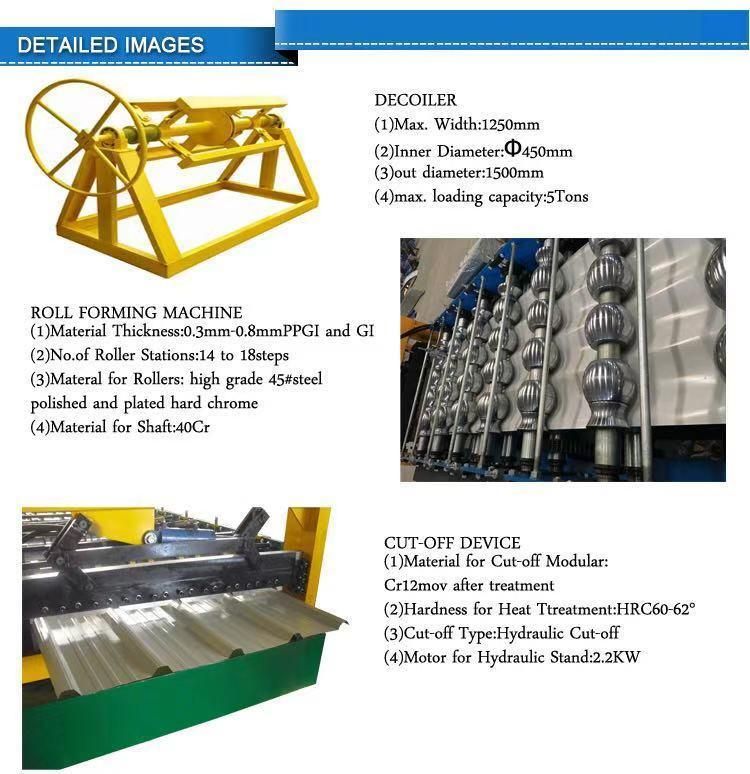

(1) Main Seamlock Roofing Forming Machine;

(2) Main uncoiler;

(3) Hydraulic System;

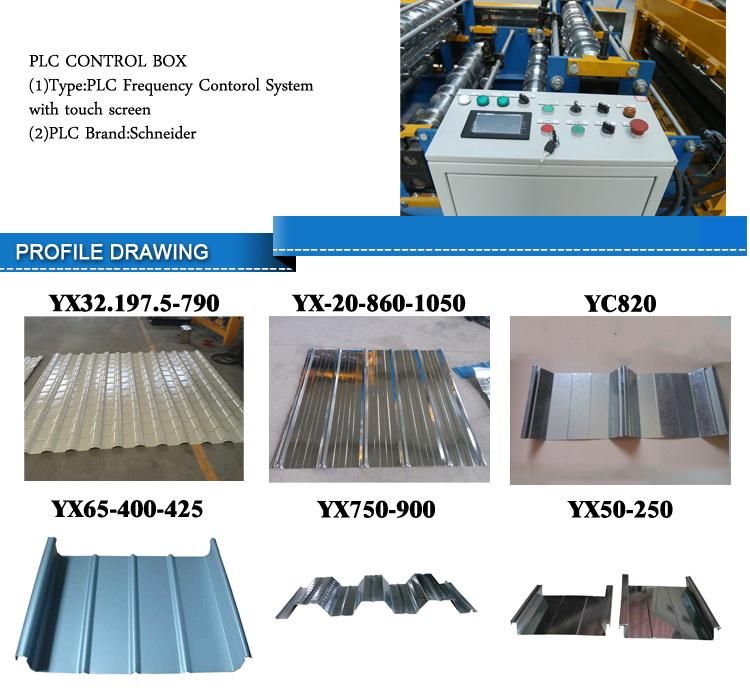

(4) PLC Computer Controlling System With Touch Screen;

(5) Hydraulic Forming Cutter;

(6) Tools;

(7) Operation Manual.
