5FT*10FT Starfire Controller Hyd Thc Hyperthem CNC Water Table Plasma Cutting Machine
Henan Wadley CNC Machinery Co., Ltd.- After-sales Service：Online Support, Free Spare Partsonline Support
- Warranty：1 Year
- Customized：Customized
- Layout：Horizontal
- Cutting Material：Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
- Automatic Grade：Automatic, Manual, Semi-Automatic
Base Info
- Power Source：Electric
- Cutting Mode：Wire Cutting
- Voltage：380V,220V
- Rated Power：8.5kw
- Weight：1300kg
- Working Area：1300*2500mm
- File Transmission：USB Transmission
- Control Accuracy：±0.01mm
- Transport Package：Wooden Case
- Specification：2440mmx1270mmx1920mm
- Trademark：wadley
- Origin：China
- Production Capacity：50sets , Month
Description
No.
Description
LXP1530
(Optional:LXP1015/LXP1212/LXP1325/LXP1540/LXP1550/LXP1560/LXP2030
/LXP2040/LXP2050/LXP2060,other size can be customized)
1
Working Size
1500*3000mm
(Optional:1000*1500/1200*1200/1300*2500/1500*4000/1500*5000/1500*6000
/2000*3000/2000*4000/1500*5000/1500*6000/2000*5000/2000*6000mm,other size can be customized)
2
Z Axis Clearance
150mm(200 And Higher Is Optional)
3

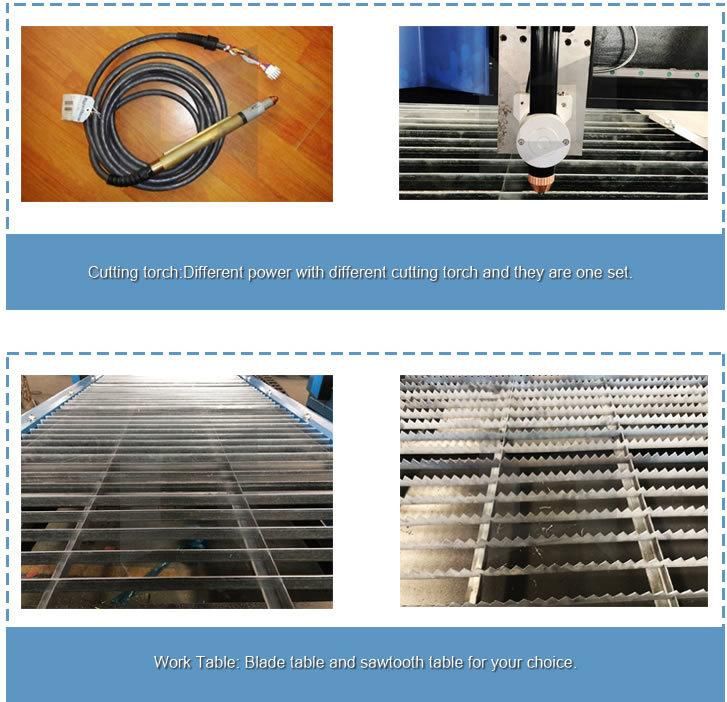

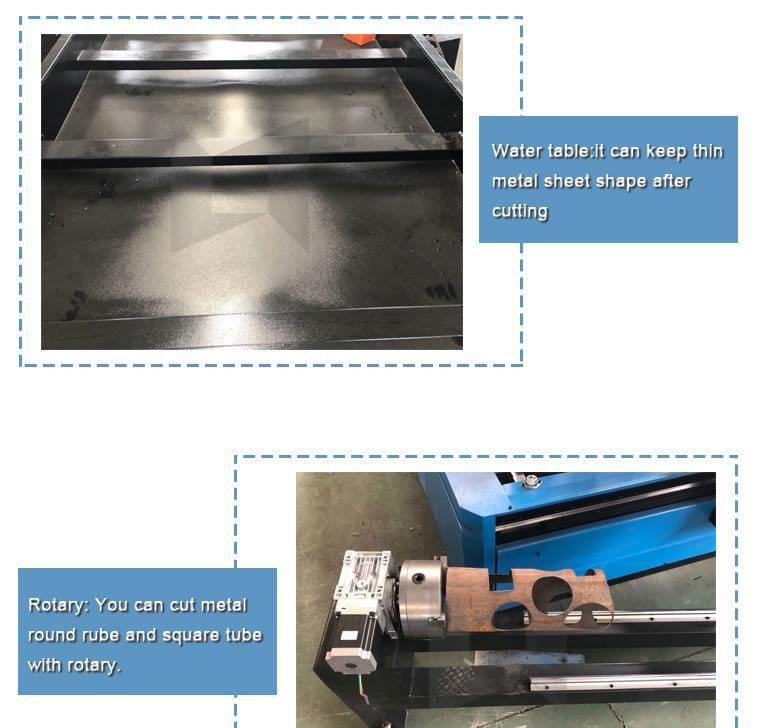

Table Type
Knife table (Teeth table And Water table can be optional)
4
Transmission System
Rack Pinion And Hiwin Linear Rails For X/Y
5
Driving System
Stepper Motor And Drivers(Servp motor is optional)
6
Max. Cutting Speed
12000mm/Min(different configuration and different material and thickness speed is different)
7
Max. Travelling Speed
30000mm/Min(different configuration speed is different)
8
Working Voltage
380V/3ph(220V/3ph is optional)
9
Plasma Generator
Huayuan China and USA power as your requirements
10
Arc Mode
Non-Contact Arc, Arc Pressure Adjuster
11
Output Current
63/100/120A/160A/200A China(45/65/85/105/125/200A USA)
12
Max. Cutting Thickness
6/15/18/20/30mm
13
Operating System
Starfire Controller/Start Controller/JiaoDa fangling controller
14

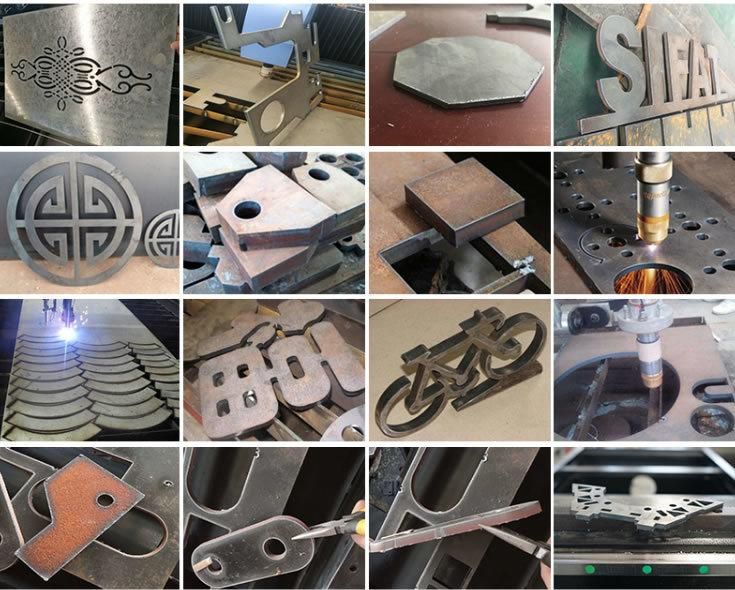

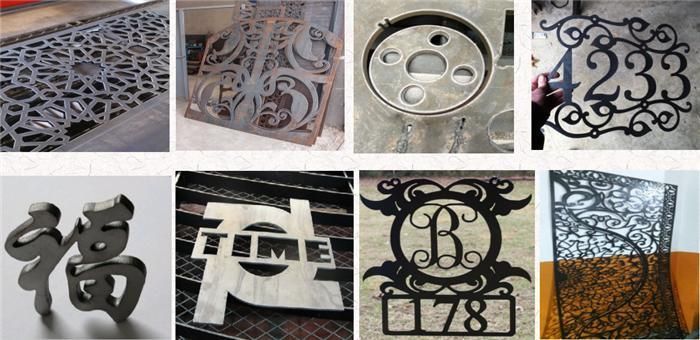

Working Material
Steel, Aluminum, Galvanized Sheet, Titanium Plate, Platinum Plate and almost all of the metal

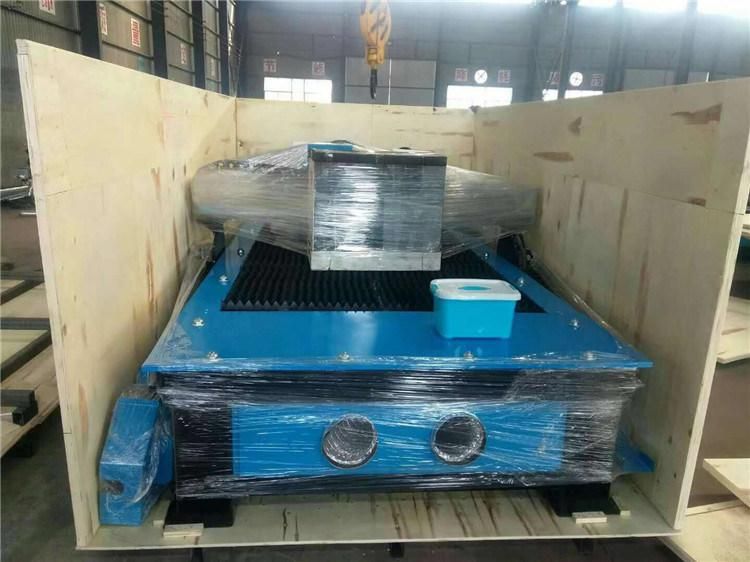

Packaging & Shipping
