• Model NO.：EMC-300
• Transport Package：Wooden Box
• Specification：830*470*900mm
• Trademark：Greatech
• Origin：China
• HS Code：8456401000
• Production Capacity：2000sets,Year

Basic Info.

Model NO. EMC-300 Transport Package Wooden Box Specification 830*470*900mm Trademark Greatech Origin China HS Code 8456401000 Production Capacity 2000sets/Year

Product Description

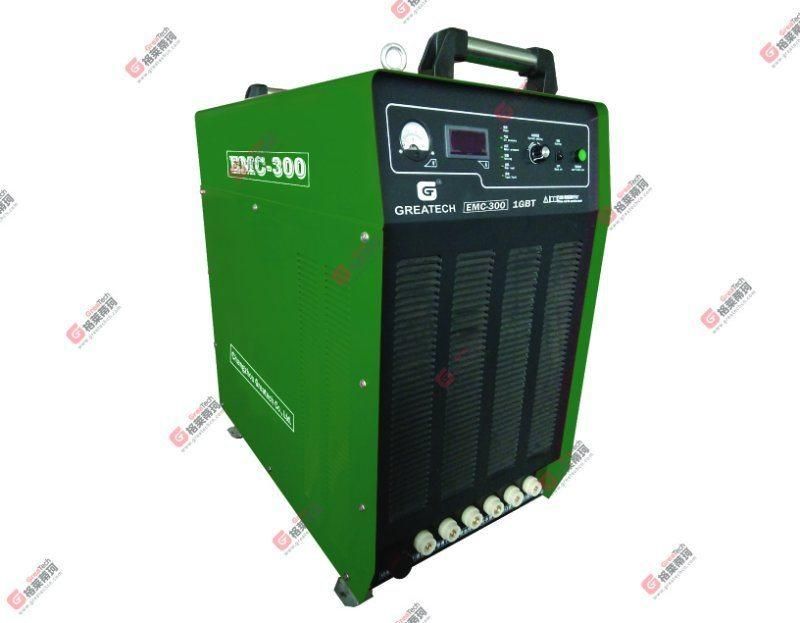

EMC-300

EMC-300 is a high quality water cooling plasma power source for CNC cutting which has high pierce capability and can achieve high verticality.
EMC-300 adopts the full-bridge soft-switching technology, current can be adjustable between 70A-300A steplessly, it can make cutting operation more controllable. It is heavy duty, 100% duty cycle, and built in multi protections for over current, over voltage, over air-pressure, over temperature etc, allows you to work 24 hours continuously


Technical Parameters

Input Voltage	V	3x380(50Hz) +/- 10%
Input Power	KVA	68
Cutting Current	A	300
Duty Circle	-	100%
Cutting Thickness	mm	30
Pierce Thickness	mm	30
Quality Cutting	mm	50
Max. Cutting	mm	60
Working Gas	-	Air/N2
Gas Volume	L/min	150
Working Gas Pressure	MPa	0.4
Cooling Method	-	Water
Weight of Machine	kg	130
Size of Machine	cm	83x47x90

Cutting Torch HC-6002


[HC6002 part name and code]

Cutting Method	Current (A)	Electrode	Nozzle	Protective Cap	Water Tube	Copper Sleeve	Diffuser	Copper Press Cap	Retaining Cap
Dry Cutting	35-100 100-150 150-200 200-300	621040	622010 622015 622020 622030	623040	624060	625060	626040	627060	628060

 Cutting Parameters

Cutting Material	Cutting Thickness (mm)	Pierce Height (mm)	Cutting Height (mm)	Cutting Current (A)	Cutting Speed (mm/min)
Carbon steel	5	5	4	105	3500
Carbon steel	30	10	7	300	950
Carbon steel	45	Edge Cutting	7	300	550
Stainless steel	6	6	5	105	1900
Stainless steel	15	7	6	185	900
Stainless steel	30	10	7	300	500
Aluminum	6	4	5	105	1800
Aluminum	15	7	6	185	900
Aluminum	30	10	7	300	450





 Company ProfileChangzhou Greatech Co.,Ltd. established in 2013.
GREATECH focuses on welding & cutting, it has a professional team with more than 15 years of experience in this industry. The product of GREATECH covers various welding materials, welding machines, welding parts, plasma power sources, cutting machines and related hardware and tools.

GREATECH has its own advanced technology. Our Plasma cutting machine EMC-130 is one of the biggest air cooling plasma cutting power source in the world. Its maximum cutting current is 130A (100% duty circle), it can work 24 hours continuously, the maximum pierce thickness reaches 25mm, and quality pierce thickness 20mm.

Our CNC Plasma Water Mist Cutting power source, EMC-200M etc, with self-developed water mist cutting system and plasma cutting torch, have excellent performance in stainless steel and aluminum plate cutting, especially in aluminum plate cutting, our machine is one of the best in the world.

Our Wecut Brand MIG, TIG, Plasma torch and spare parts as well as other welding & cutting related products, as a big variety and stable quality, has very good sales in overseas

GREATECH focuses on welding and cutting, however, GREATECH is more than just welding & cutting.

 Factory Show



Packing&Delivery


Company Exhibitions

Q & A1.Q: Do you have your own factory?
A: Yes, we have. Our factories located at Jiangsu province.

2.Q: What is the MOQ?
A: MOQ usually be 100pcs. Small quantity is also available.Generally if you choose the different products,our minimum order QTY.also will be different.

3.Q: Is sample available and the sample fee refundable?
A: Yes, we could offer the sample for free charge but need to pay the cost of freight.

4.Q: What is the available shipping way?
A: Small quantity usually choose DHL, Fedex, UPS and EMS etc.international door to door express. Bulk order would be sea/ air shipping.

5.Q: How many days does it take for mass production?
A: Usually it takes 15 workdays after confirming order.
