• Model NO.：ZYYX
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Size：About 8*1.5*1.6m
• Certificate：CE
• Wanrranty：12 Months
• Operation Language：English or as Per Client`S Required
• Rollers Material：No.45 Forged Steel with Hard Chrome
• Shafts for Rollers：Grand Twice, ID72mm Solid Steel
• Guarantee Time：First Year Free, Lifetime Services
• Control System：Mitsubishi PLC & Converter
• Machine Type：Shutter Roll Forming Machine
• Main Power：5.5kw
• Transport Package：40gp Container for One Machine
• Specification：CE SGS BV ISO Soncap
• Trademark：Zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：10sets,month

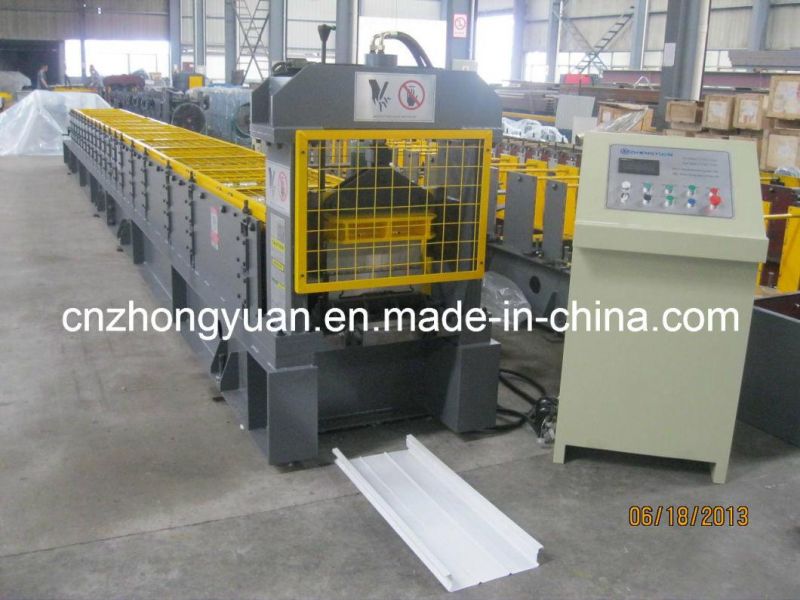

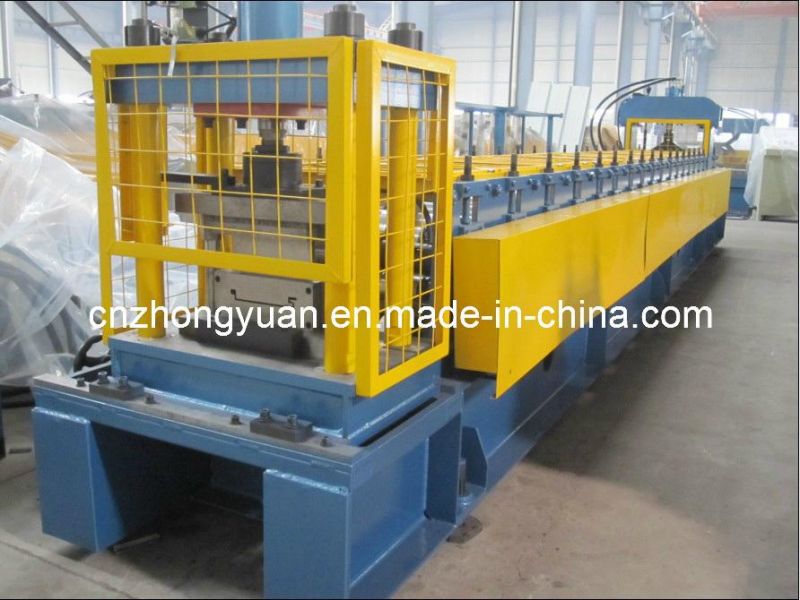

                                                                          Shutter Roll Forming Machine
Technical parameterItemSpecification
Raw MaterialTypePre-painted steel coil & galvanized coilsThickness(mm)05-0.7Yield strength(mpa)235Roller material45# steel , coated with ChromeShaft for rollers Solid shaft with 55 mm,processed with cylindrical grinderForming speed(m/min)About 20Output speed(m/min)About 12 for 6m length sheetSpeed adjusting modeMitsubishi frequency transformerRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mould steelLength measurementNemicon EncoderControl modeMitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power(kw)5.5KWTotal power(kw)7.7KWProcess flowDecoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting - product to run out table

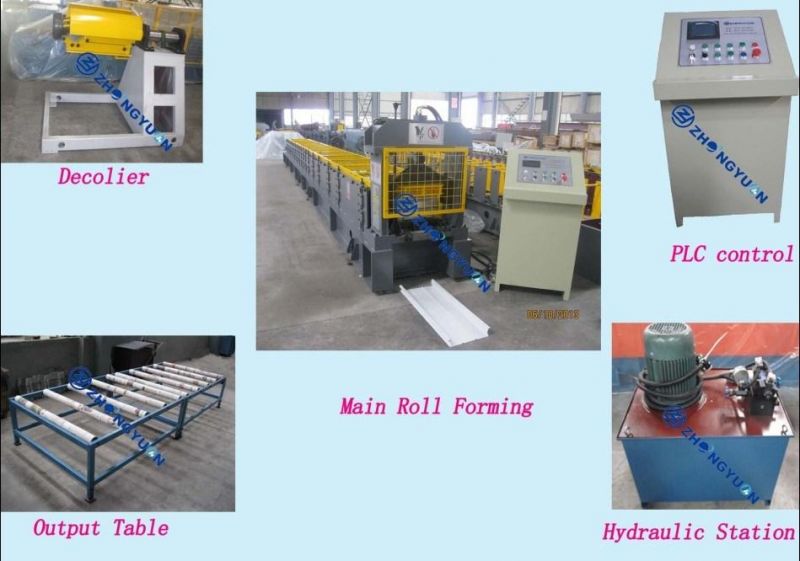

Components of machineDecoiler (manual decoiler and hydraulic decoiler for option)1set  Feeding & guiding device1setMain roll forming machine1setHydraulic cutting system1setControlling system1setRun out table (auto. Stacker for option)1set






About us
We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.
1.  Capacity: 12-15 sets/month
2.  Delivery: in only 5-8 weeks for urgent order
3.  Have our own tool center. 12 sets CNC machines.
4. Zhongyuan is a "All-in-house source"
     --from raw material to the final high-precision forming machine. We have our precise tooling center.
5.  You can rely on our team!
      We have engineers with experience more than 15 years in metal forming industry.

Get Free:
"Send" below get profile drawing & design technical support by our 15 year experience technicians FOR FREE!








FAQ:
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .

2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.

3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.

4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.

5) How can I trust you that machines pasted testing running before shipping?
A:  1) We record the testing video for your reference. Or,
    2) We welcome your visit us and test machine by yourself in our factory.

6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.

7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
