Electrostatic Powder Coating Spray Gun Machine
Yangzhou OURS Machinery Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Type：Coating Spray Gun
- Coating：Powder Coating
- Substrate：Steel
- Certification：ISO
Base Info
- Model NO.：Ours900
- Condition：New
- Model：Ours900
- Power：50Hz
- Voltage：AC220V
- Transport Package：Carton or Wooden Case
- Specification：Steel
- Trademark：OURS Coating
- Origin：Yangzhou, Jiangsu Province
- HS Code：84242000
- Production Capacity：10000sets,Year
Description
Input voltage: AC220V/110V/50HZ+/-10%
Input frequency: 50HZ
Input power: ≤40w
Working environment:-10°C~50°c
Working voltage:DC12V
Electrostatic output voltage: MAX 0-100KV (continuously adjustable)
Output current: MAX 100UA
Powder output: MAX 600G/MIN
Air consumption: MAX13NM3/H
Protection level: IP54

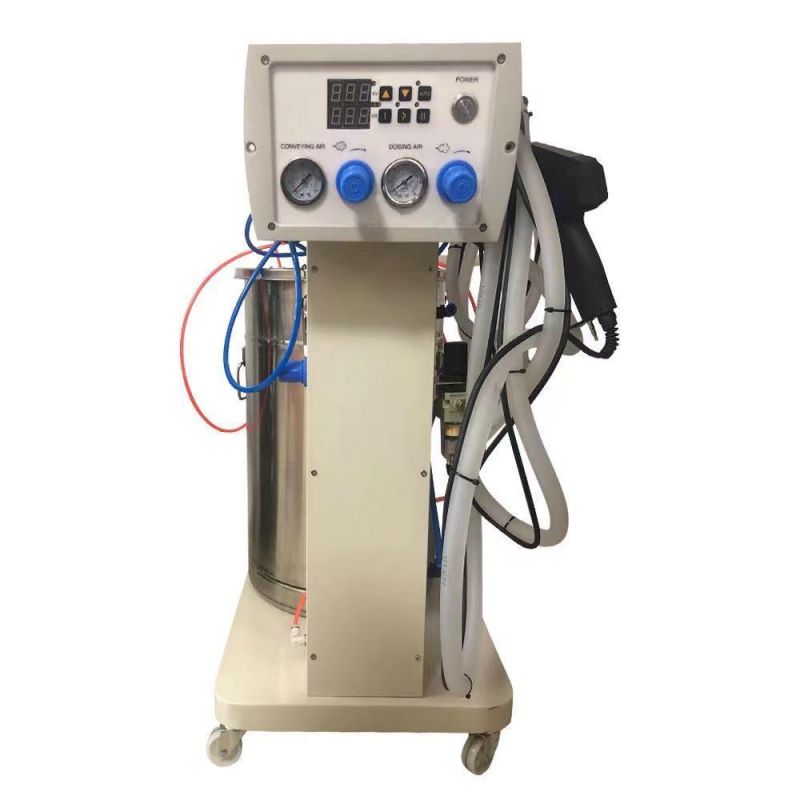

1 host
1 manual spray gun

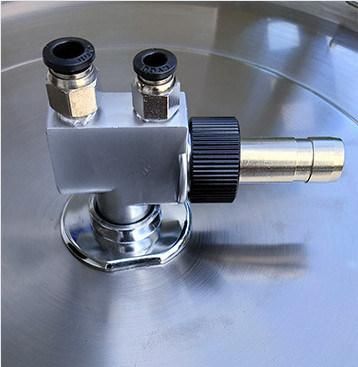

1 Venturi powder pump
4m powder pipe + 4m gun line +4m air pipe
Spray gun accessory kit
1 powder tank
1 car machine
1 oil-water separator
1 fluidized pressure regulating valve
1 pressure gauge
Detailed description:

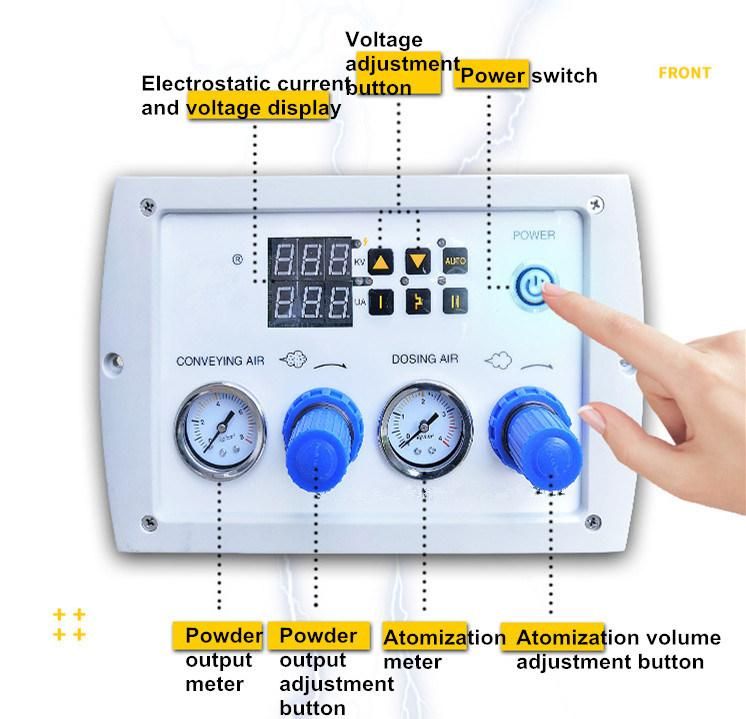

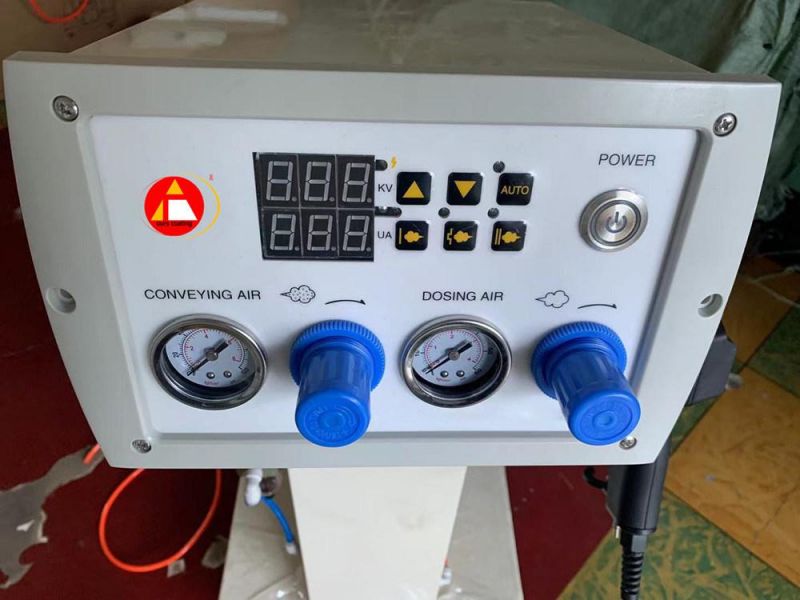

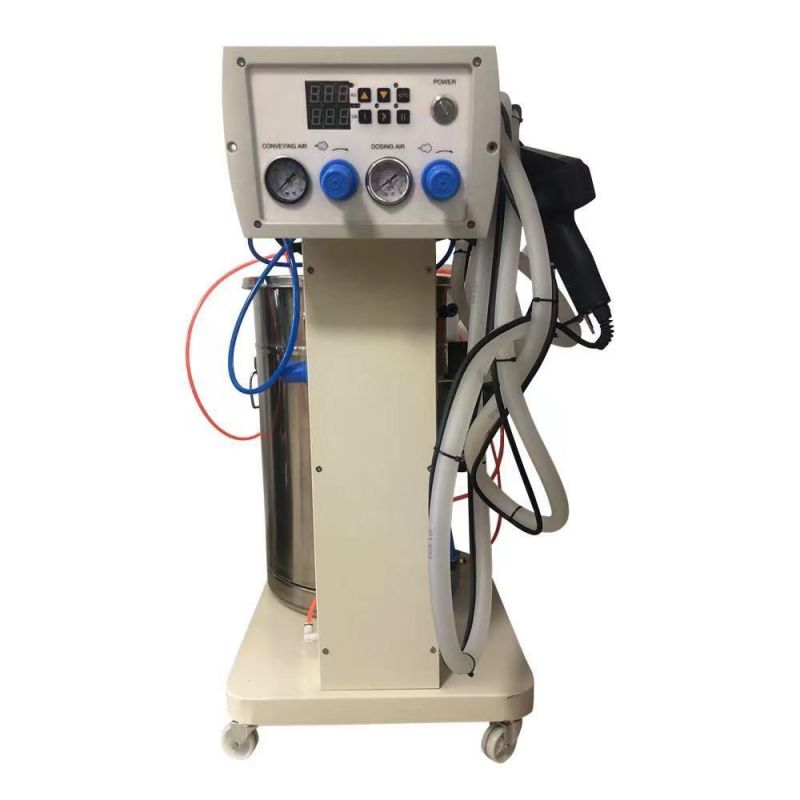

*Smart panel
Advanced intelligent computer control, simple operation and stable performance, two channels of gas continuously clean the electrode, the discharge effect is good, the voltage and current can be automatically adjusted according to the distance of the spray gun.

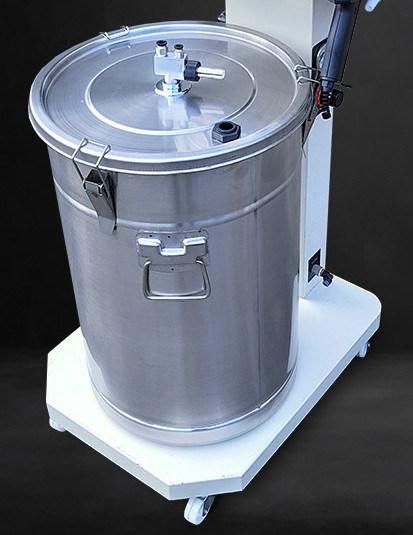

304 stainless steel thickened tank wall, sturdy and durable, 50 liters super large capacity, reducing powder refilling frequency, and improving work efficiency
Good wear resistance, good sealing, increased powder capacity, more even Powder output.

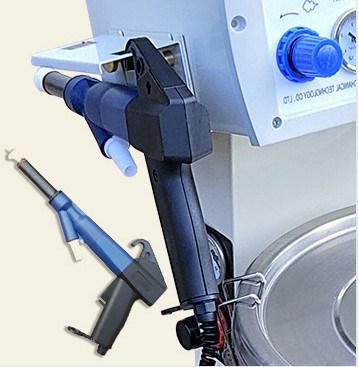

*Quality Spray gun
Wear-resistant and pressure-resistant gun shell, built-in high-voltage module adopts imported components, straight-through powder pipe, high powder application rate.
Practicability

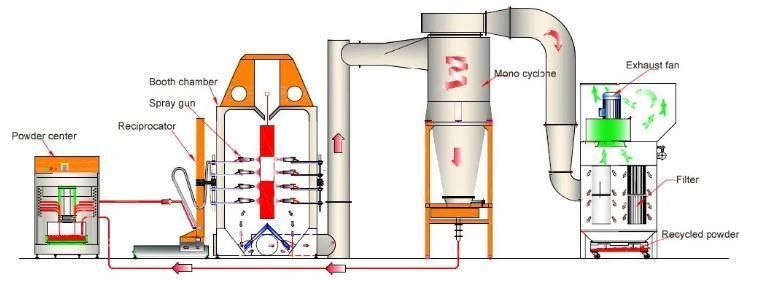

We specialize in the whole line:
1) Pre-treatment system: Automatic Spraying pre-treatment and dipping pre-treatment are available;
2) Drying oven: Drying oven which drying the water after pre-treatment is designed according to customers' actual conditions.
3) Powder coating spray system: Automatic spray reciprocator, manual spray equipment and Semi-auto (Auto-spraying with manual repairing spraying) are for your choice;
4) Powder recycling system: Cyclone equipment and cartridge filters is customized and introduced according to actual requirement by customer;
5) Curing oven: Tunnel curing oven, bridge type curing oven, Electric power heating curing oven, Gas-heating curing oven, Diesel heating curing oven, High temperature, lower temperature curing oven is available for fitting your sole factory.
6) Conveying system: Various design according to different requirement by customer on the basis of customers' workpiece and output information.
7) Control system: PLC control, with or without touch screen
8) Spray gun and reciprocator
Our service:
| 1. Purchase Service Ours coating has a specialized and efficiency working team. If you are new on the coating, some pictures or drawings of your products and workshop could be shown to us, we will give you specialized suggestion of whole work. |
| 2. Shipping Service Ours coating has a specialized and independent department which just for shipping the buyer's goods. The workers know T/T, L/C Items well. All Exported documents could be made perfectly. Our company cooperates with the most famous shipping company in China also. They could provide the best and economic shipping ways to the buyer's port. |
| 3. Installation Service Installation service is available with all our machines. Ours coating will dispatch technician to the Buyer's factory to install and trial operate the equipment. |
| 4.Clients' Training Services Ours coating can accept the buyer send their own technician to our factory to learn how to operate machines. Also, training in the installation period is better acceptable. |
| 5.After Sales Service Ours coating will provide one year of warranty period. Many spare parts will be prepared in the tool box together with machines. |
Feel free to contact me if you need.
