• Model NO.：e031
• Pretreatment：Dipping
• Conveyor：Chengde Guangda
• Control：Siemens
• Heating Energy：Natural Gas
• Water Drying：Hot Water Circulation
• Waste Gas Treatment：Option
• Drying Tunnel：Bridge Type
• Cycle Duct：Galvanized Sheet
• Burner：Riello
• Drying Time：20~25 Min
• Temperature：Digital Display
• Chain Pitch：250 mm
• Tension：Heavy Punch
• Transport Package：Air Bubble Film
• Specification：15 t
• Trademark：Fuyuan
• Origin：Huzhou
• HS Code：8424899990
• Production Capacity：20 Sets,Year

Basic Info.

Model NO. e031 Pretreatment Dipping Conveyor Chengde Guangda Control Siemens Heating Energy Natural Gas Water Drying Hot Water Circulation Waste Gas Treatment Option Drying Tunnel Bridge Type Cycle Duct Galvanized Sheet Burner Riello Drying Time 20~25 Min Temperature Digital Display Chain Pitch 250 mm Tension Heavy Punch Transport Package Air Bubble Film Specification 15 t Trademark Fuyuan Origin Huzhou HS Code 8424899990 Production Capacity 20 Sets/Year

Product Description

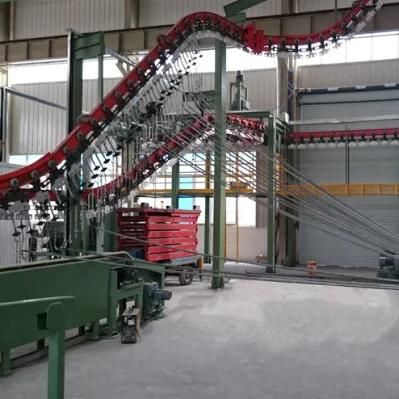

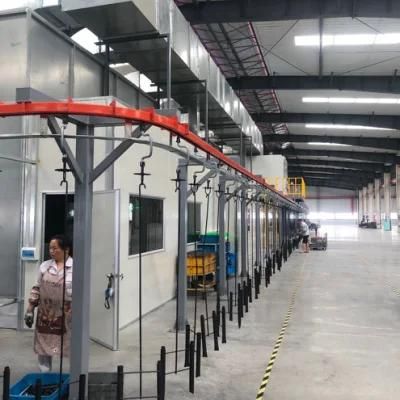

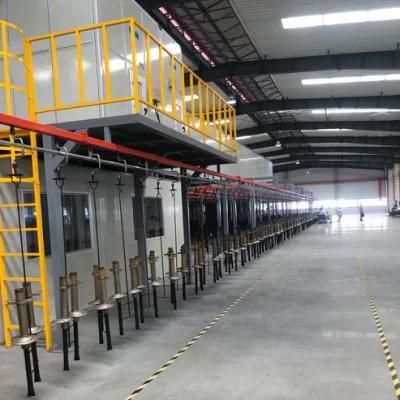

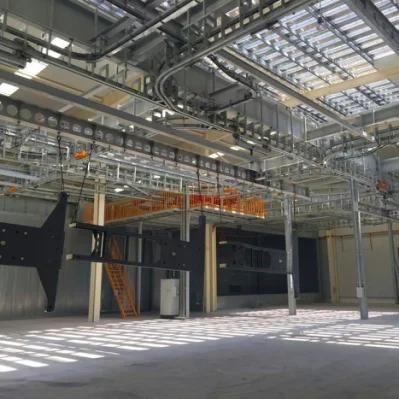

High Quality Cataphoretic Coating Production Equipment:


Indoor environment requirement for coating:

1. Room temperature: RT
2. Air speed: 0.3~0.6 m/s
3. Illumination: More than 500 Lx
4. Noise: Less than 85 dB





Coating line water drying:


No.	Item	Technical parameter
1	Structure type	Insert board assembly bridge type hot air circulation oven
2	Inner size	According to design requirement
3	Drying temperature	110~150ºC
4	Drying time	10~15 min
5	Fixed point temperature difference in drying tunnel	±5ºC
6	Heating up time	<40 min
7	Installed power	100000 Kcal
8	Energy	0 # diesel or electric
9	Circulation air volume	7000 m3/h
10	Waste gas discharge system	Equipped with regulating valve

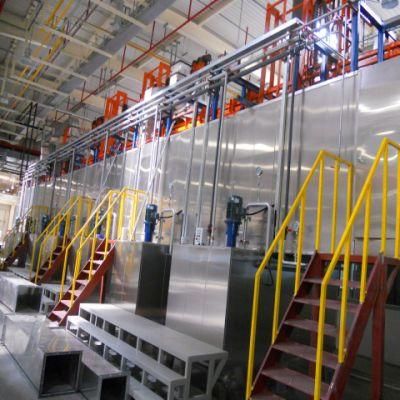

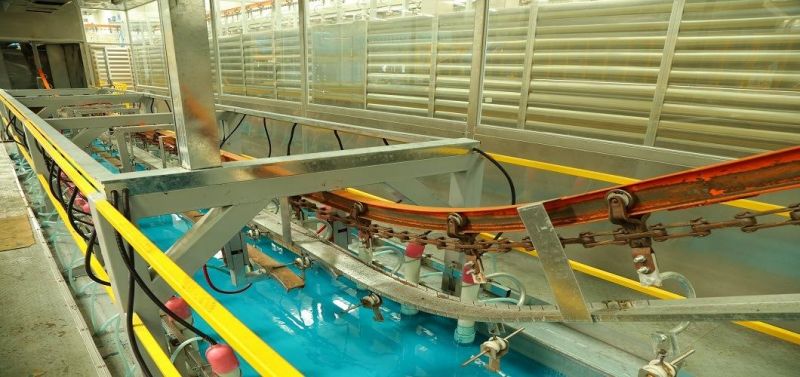

Electrophoresis coating system:

Cathodic epoxy electro coating is highly corrosion resistant. A thin dry film thickness can withstand long time salt spray test.

Electrocoating has the ability to give very even coating with variances ranging to only 1-2 microns. E-coating assures the uniform of coating.

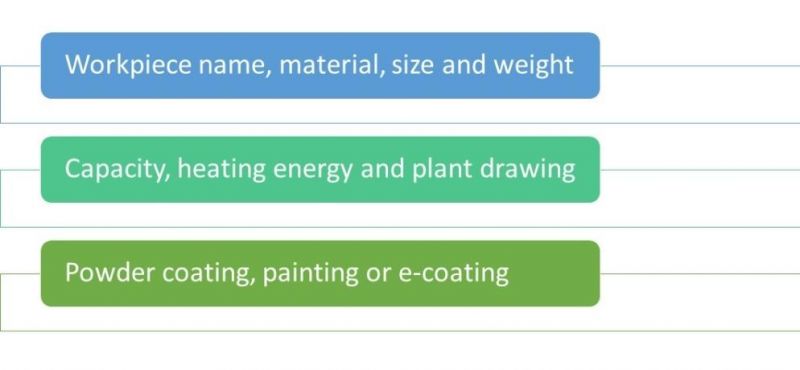

Coating line design parameter:
