• Customized：Customized
• Advantage：Use Widely
• Color：Green
• Transport Package：Wooden Box
• Specification：SGS
• Trademark：Rainbow
• Origin：China
• Production Capacity：200sets

Basic Info.

Customized Customized Advantage Use Widely Color Green Transport Package Wooden Box Specification SGS Trademark Rainbow Origin China Production Capacity 200sets

Product Description

Bimetal Composite Contact Cold Header can make six different metals be compounded together under cold state to produce composite contacts according to the technique requirements. Its working process includes the following steps: Sending two different kinds of metal wire into the machine firstly, transmitting them into the mould after being cut off. Then by two times upsetting process, the two kinds of metal become the composite contacts. Finally, the products retreat from the mould and enter into the finished product box.

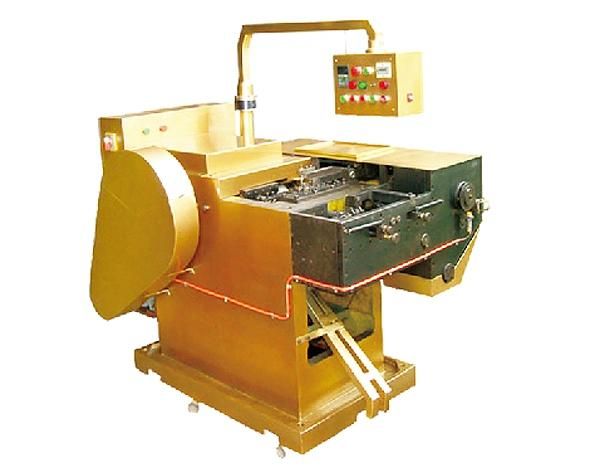

Model HSD-30P bi-metal rivet & button making machine
Dia. Of rivet head: 2.5-6mm
Dia. Of rivet shank: 1.2-3mm
Dia. Of Button: 2.5-6mm
Thickness of button: 0.5-2.2
Thickness of silver layer: 0.18-0.35
Stroke of slider: 40mm
Motor power: 2.3kw
Output: 90- 130PCS/min
Package size: 1300X1400X1300mm
Weight: 1100kgs

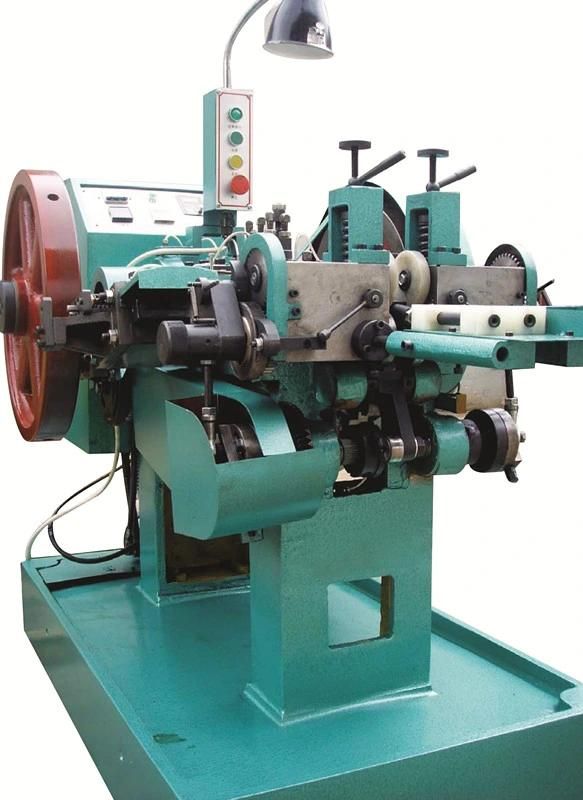

HYFC36-3 Tri-metal Rivet Automatic Machine
   Round Button Dia. (mm)       Φ2-Φ8
   Max. thickness of head (mm)       3
   Dia. of rivet shank (mm)       Φ1-Φ4
   Length of rivet shank (mm)    Max 9mm
   Head Silver thickness (mm)    Min 0.25mm
   Foot silver layer (mm)         0.4-2.5
   Rivet output                4000-8000pcs/hr
   Power                      3.0kw, 440v, 50hz
   Net weight                     1800kgs
   Quantity                        1

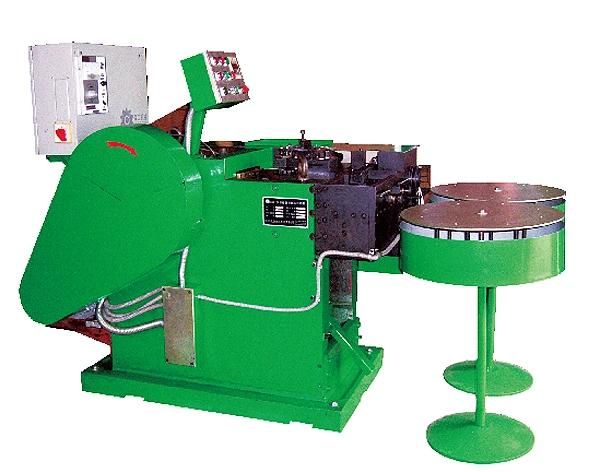

Model HSD-50 bi-metal rivet machine
Dia. of rivet head:          6-10mm
Dia. of rivet shank:         3-5mm
Thickness of silver layer:    0.25-0.70
Stroke of slider:              40mm
Motor power:                3kw
Output:                 80- 110pcs/min
Package size:        1300X1400X1300mm
Weight:                  1400kgs
