• Model NO.：COLO-800D
• Quality：100% Promise
• Transport Package：Wooden or Carton
• Specification：Hopper feed type
• Trademark：COLO
• Origin：China
• HS Code：8424899990
• Production Capacity：500sets,Month

Basic Info.

Model NO. COLO-800D Quality 100% Promise Transport Package Wooden or Carton Specification Hopper feed type Trademark COLO Origin China HS Code 8424899990 Production Capacity 500sets/Month

Product Description

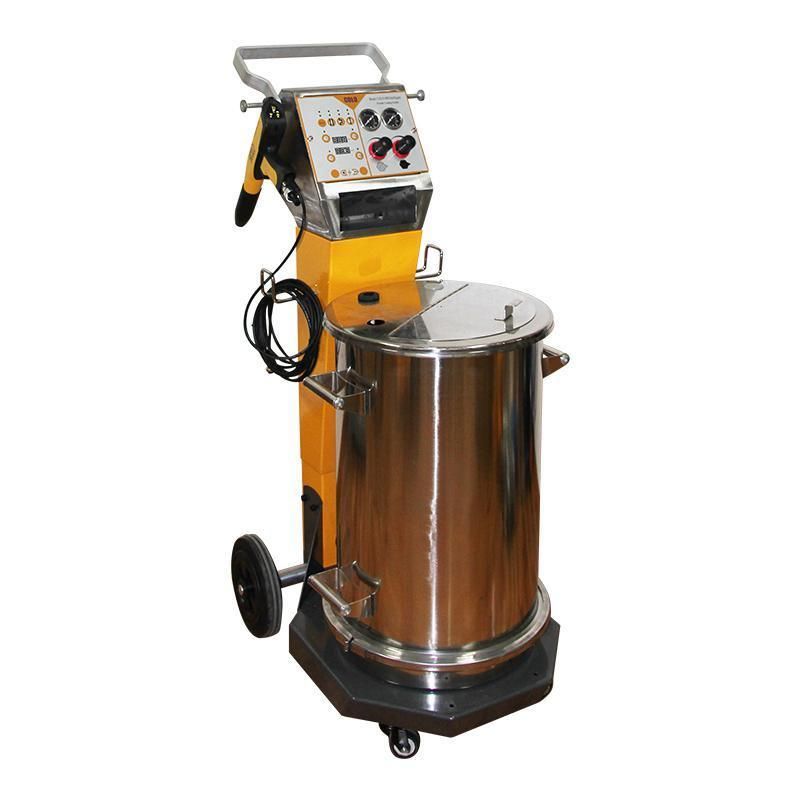

Electrostatic Manual Powder Painting Coat Equipment
controller has one-touch intelligent operation button good for flat parts, complicated parts and recoat parts,  you can choose Auto, and choose one according to your needs.The trolley of 800D-L2 is a new design, more compact and exquisite, and more flexible.




Features
1.Digital control system, 3 preset intelligent model for flat,complex coating and recoating.
2.Auto and manual mode ,more flexible and quicker for coating diferent parts.
3.Could supply a large amount of powder under low pressure.
4.The inside circuit region is independent sea, avoiding the powder incoming.
5.Good quality dust-proof powder switch, good quality press key.
6.Control the useless power strictly, low heating value, work continuously and steadily.
7.Beautiful look with light weight

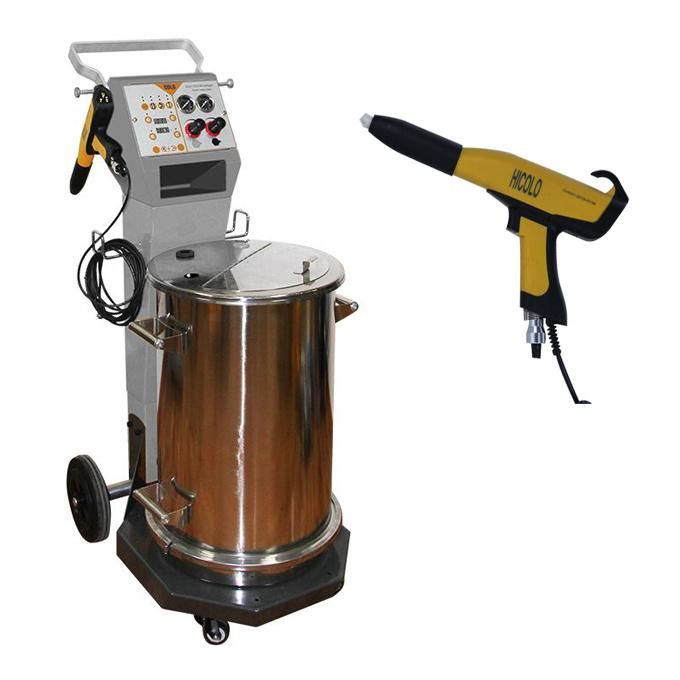

8.Excellent coating gun quality COLO-07 spray gun
9.50L powder hopper for enough powder storage ,also we have diferent size hoppers

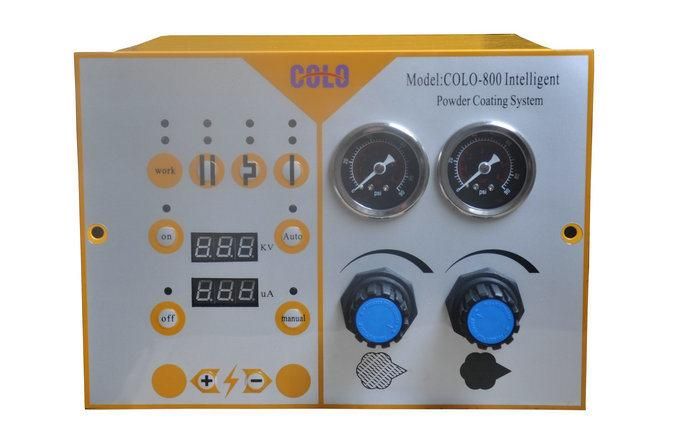

Intelligent Console
great coating perfromance


Technical Parameters
Electrical data
Power range                                  220V
Frequency                                     50HZ
Temperature range in use                      0 ºC  - +40 ºC
Powder Gun
Gun weight:    .........                    500G
Rated output voltage ...…                      24VDC
Input voltage     ......…                       220kv
Maximum output current  ...…                   180Ua(max)
Maximum output voltage......                   0-100KV (  adjustable)
Maximum powder injection :...…                    600g/min
Polarity .........                                negative (-)
Pneumatic data
Maximum input-air pressure ........                 10kg/cm
Optimum input-air pressure.....                        6kg/cm
Minimum input-air pressure   ...                      4kg/cm
Maximum water vapor content or compressed air …..      1.3g/N m3
Maximum oil vapor content of compressed air   .....     0.1mg/ m3
Maximum compressed-air consumption...…            11 m3/h

Our Factory
We are a typical Chinese supplier and specialized in the research, development and production of powder coating equipments, such as powder coating machine, powder coating booth, powder curing oven, reciprocator,powder coating gun replacement parts.We insist in offering superior quality products and efficient service.If you are interested in our products,please feel free to contact us,thank you.
