Lemar High Speed Carbon Steel Plate CNC Flame Cutting Machine
Wuxi Lemar Machinery Equipments Co., Ltd.- After-sales Service：Overseas Engineer
- Warranty：12 Months
- Customized：Customized
- Layout：Horizontal
- Cutting Material：Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
- Automatic Grade：Automatic
Base Info
- Model NO.：CNC-4000
- Cutting Mode：Gas Cutting
- Model：CNC Series Cutting Machine
- Cutting Source：Plasma,Flame,Gas Cutting
- Flame Cutting Speed：1000 mm,Min
- File Support：Dwg,Dxf

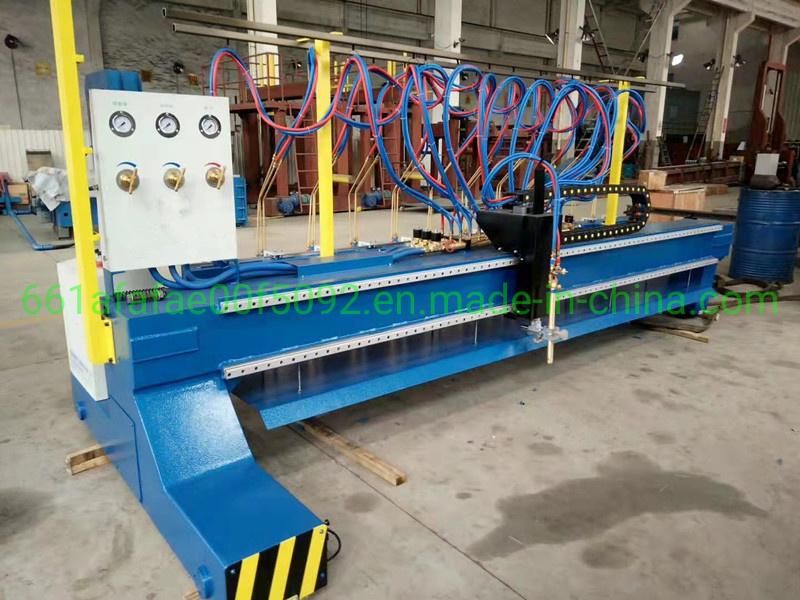

- Gas Strip Cutting Quantity：6,9 Cutting Heads or Customized
- Servo Drive System：Japan′s Panasonic All-Digital AC Servo

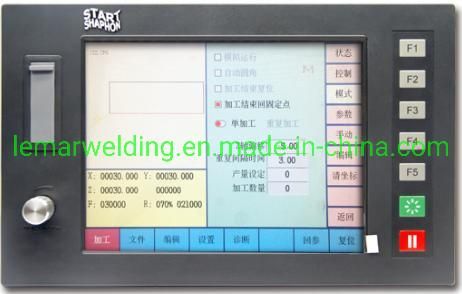

- Control Mode：CNC Control
- Effective Cutting Area：3000 mm*8000 mm or Customized
- Cutting Power：China Lgk or USA Hypertherm
- Power：380 V~440 V
- Plasma Cutting Speed：3500 mm,Min
- Plasma Cutting Thickness：1-30 mm According to Clients Plasma Cutting Source
- Optional：Flame or Flame and Plasma Cutting
- Flame Cutting Thickness：6-200 mm
- Medium Thickness Torch：Cutting Thickness 500-800mm
- Transport Package：Standard Package
- Specification：Flame Acetylene Gas or Liquefied CNC cutter
- Trademark：Lemar
- Origin：Wuxi, China
- HS Code：8461909000
- Production Capacity：1000 PCS,Year
Description

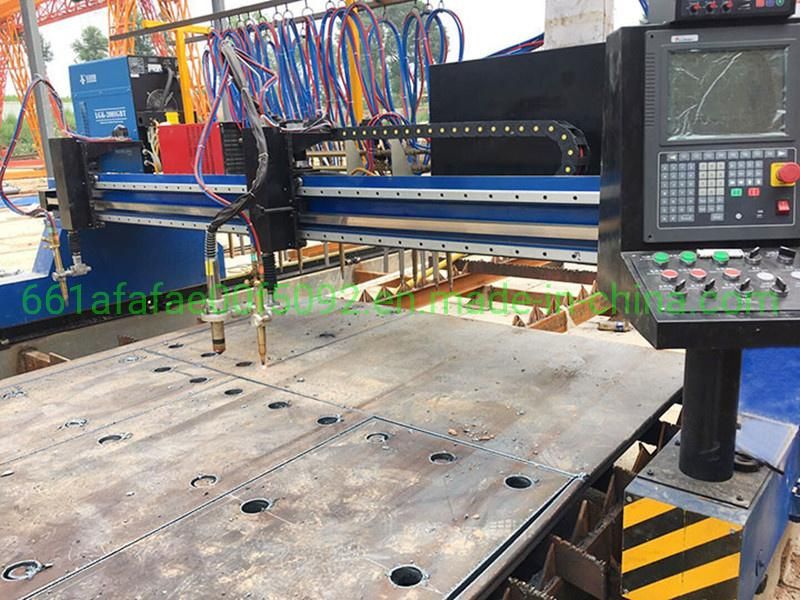

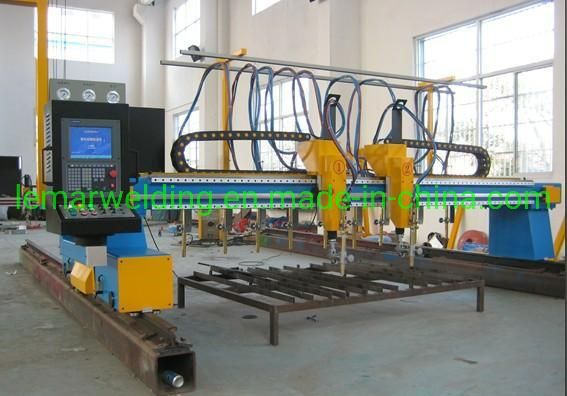

3. The main body of the CNC metal sheet cutting machine adopts a gantry type mechanical structure. The beams and end beams are welded with square tubes, plates and profiles, and vibration aging and natural aging are combined to eliminate the stress generated during the welding process

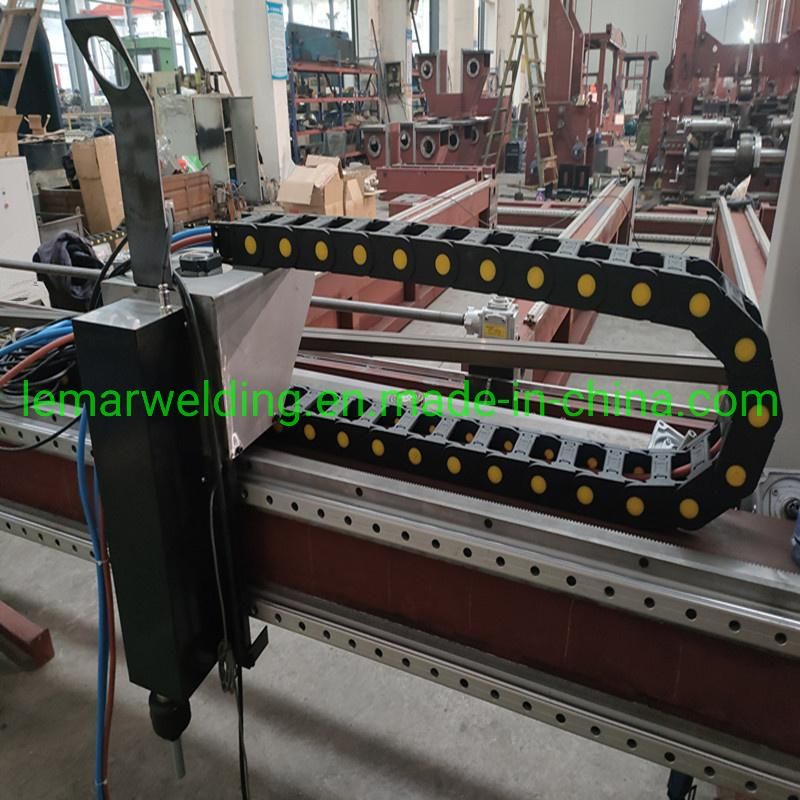

4. Longitudinal/transverse drive adopts rack-and-pinion flexible transmission technology without gaps, and the rack accuracy is above level 7 grade
5. The CNC flame cutting machine adopts high-precision German Neugart company's original reducer and AC servo motor to achieve precise positioning and transmission
6. The air system is equipped with stepless automatic perforation technology, the preheating time of 60mm steel plate is only 12 seconds, and the perforation thickness is 100mm
7. The stepless automatic perforation function reduces metal splashes and greatly improves the service life of the cutting nozzle.
Portable plasma flame cutting machine and Gantry type CNC Flame oxyfuel cutting machine which one is better?
Choose Portable or Fixed bigger gantry type CNC Plasma Flame gas cutting machine need to accord clients' requirements.
The width and length of the steel plate can clearly suit your model:

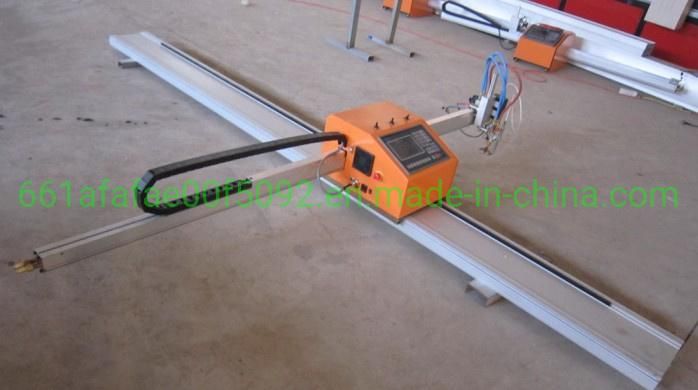

Portable CNC cutting machine: suitable for customers who have a small processing capacity with a steel plate width of less than 1.5 meters and a length of preferably less than 4 meters;

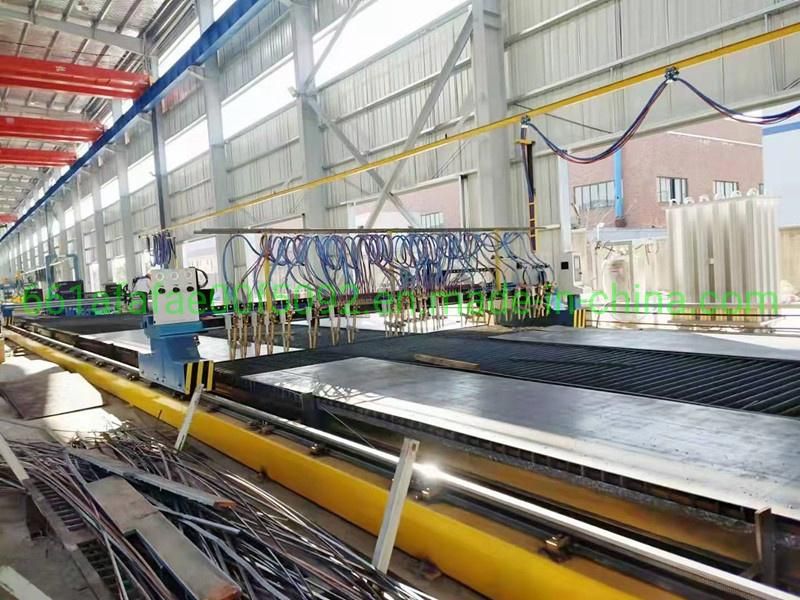

Gantry type CNC cutting machine: suitable for customers with steel plate width of more than 1.5 meters, unlimited length or large processing capacity;
