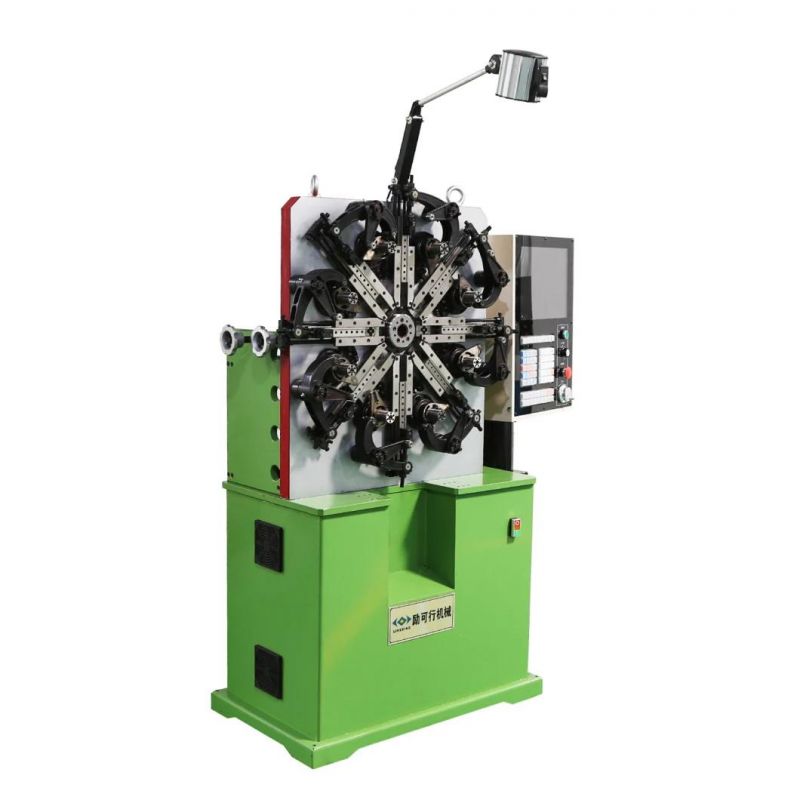

Lkx502 CNC Versatile Spring Forming Machine

Guang Dong LI KE XING Spring Machinery Technology Co., Ltd.
  • Control Type：Automatic
  • Axis Count：4 Axis
  • Warranty：1 Year
  • Servo Motor：Japan SANYO
  • Arcuchi：502 Computer Interface
  • Each Axis：Can Change Feeding Wire Length

Base Info

  • Model NO.：LKX502
  • Special Function：Control The Torsion Spring Angle
  • Axis：4
  • Automation：Automatically
  • Transport Package：Wooden Case
  • Specification：1200*800*1600MM
  • Trademark：LIKEXING
  • Origin：Made in China
  • HS Code：84633000
  • Production Capacity：500sets,Year

Description

Basic Info.

Model NO. LKX502 Special Function Control The Torsion Spring Angle Axis 4 Automation Automatically Transport Package Wooden Case Specification 1200*800*1600MM Trademark LIKEXING Origin Made in China HS Code 84633000 Production Capacity 500sets/Year

Product Description

PRODUCT DESCRIPTION

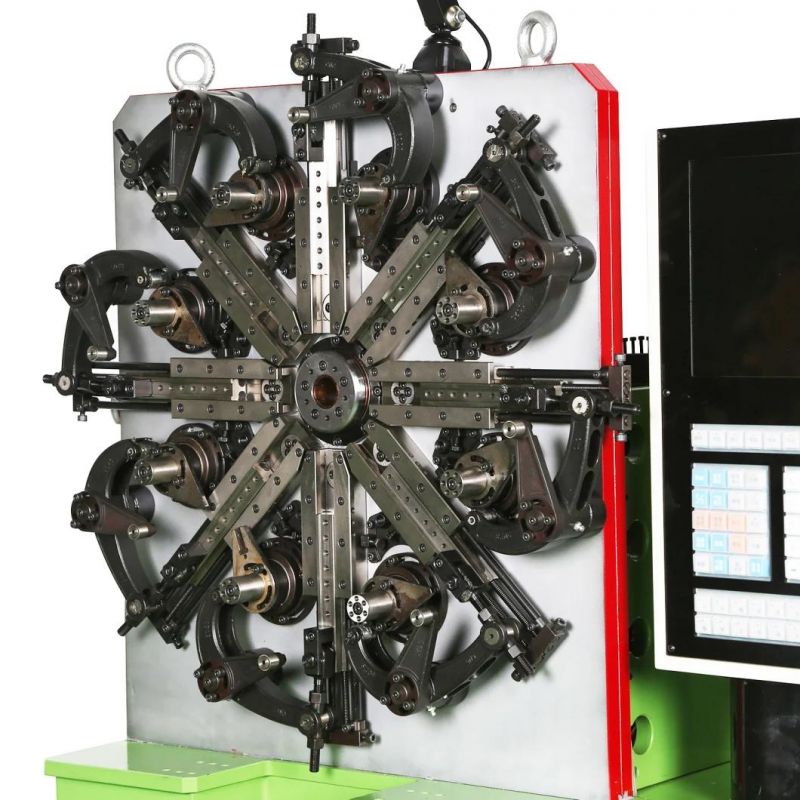

LKX502S  Computer Spring Machine is equipped with  imported Japanese Servo Motor, also equipped with eight  processing sliders , thus can finish all kinds of actions  in spring former processing. (e.g: curing, spacing,forming etc.)
Suitable for producing Compression, Torsion,  Extension, Rectangular Spring Special-shaped or customized spring etc.
10inch human-computer inferface, 502computer,universal operation panel, easy to learn and use.
High synchronization accuracy, Power-full and precise in wire feeding.
Spring former assisted by four air cylinders, also can use the probes to control the angles of the torsion spring.Otherwise,the fully automotic intermittent electronic pump system can ensure the gears' lubrication and maintenance.

TECHNICAL PARAMETER

ModelLKX502
Wire diameter (mm)Ø0.2~Ø2.3
Axis Count4Axis
Max feeding Length999999
Instruction value of wire feed±0.01~±9999.99mm
Instruction value of cam±0.10~±359.90
Servo motor of wire feed (kw)2.7
Servo motor of cam (kw)2.7
Servo motor of Quill Z-axis (kw)1
Machine size(mm)1200×800×1600
Weight (Kg)800
Power380V 3-Phase



Lkx502 CNC Versatile Spring Forming Machine
Lkx502 CNC Versatile Spring Forming Machine
Lkx502 CNC Versatile Spring Forming Machine
Lkx502 CNC Versatile Spring Forming Machine

FAQ:
Q: What's the Min. order?
A: One set.

Q: What is the payment term?
A: The payment term is 30% deposit as PO confirmed and the 70%  after the shipment. We also accept other payment term according to the agreement.

Q:What's the delivery time?
A:Normally the delivery time of the machine is 30days after receicing deposit.But it depends on the machine model. Some of them could be shipped within several days, because normal machine type is current stock.
