• Model NO.：84S
• Production Capacity：200sets

Basic Info.

Model NO. 84S Production Capacity 200sets

Product Description

A.Description of goods:


Model	64S	164S
Number of Heading Station	4	4
Forging Force (kgs)	35000	210000
Maximum Cut off Diameter (mm)	8	18
Maximum Cut off Length (mm)	80	195
Product Shank Diameter (mm)	3-6	10-16
Max Die kick out stroke (mm)	70	178
Max punch knockout stroke (mm)	12	40
Main Ram Stroke (mm)	110	260
Main Die Size (mm)	50x85L	100X190L
Punch die dims (mm)	40x90L	75X185L
Cut-off die dims (mm)	30x45L	60X90L
Main motor power (KW)	15	55
Output (pcs/min)	40-210	70-100
Die  pitch (mm)	60	120
Shank Length of blank (mm)	10-65	70-100
Approx. Weight (kgs)	8000	45000

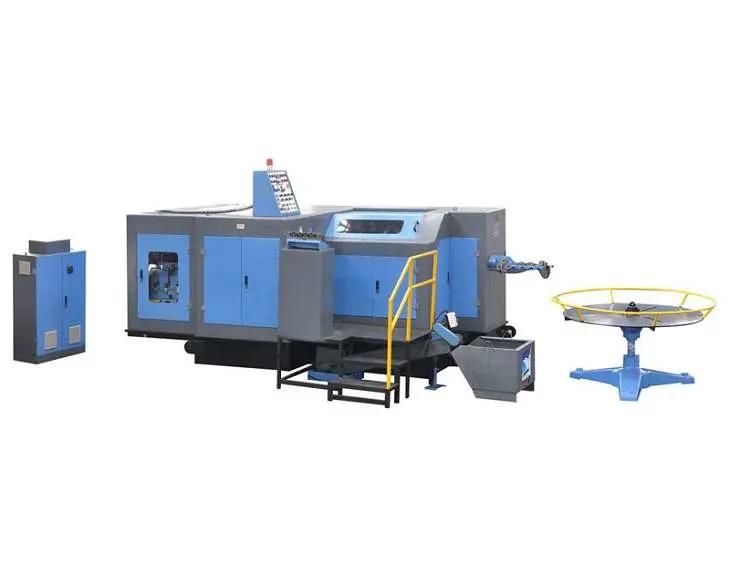

Model                                                SRH-84S
Number of forging Station                  4
Forging Force kgs                             60,000
Maximum Cut off Diameter mm         10
Maximum Cut off Length mm             115
Knockout stroke mm                           92
Main ram stroke                                 160
Max punch knockout stroke mm         18
Over diameter of cut off die mm           φ50x50L
Over diameter of punch die mm           φ45x125L
Over diameter of main die mm              φ60x130L
Main motor power kw                             22
Output pcs/min                                       120-180
Die pitch mm                                          70
Shank Length of blank mm                   15-90
Approx. Weight T                                  14
Quantity                                                1
Applicable bolt diameter  mm               5-8

We are the biggest dealer in China. We can get the best price from Manufacture .
We can get lower price than you purchase from manufacture directly and we can give you best after-sale service.
We have engaged in exporting more than 20 years.
80% fasteners machine in INDIA Import from us.
Such as Deepak , Empire ,Poojafore , LPS they all use our machines.
We engaged in exporting good quality products. We can give you the best price and best after-sale services.
If you have any questions, we can send engineer to your city solve problem for you.

For any questions,please feel free to contact me.
Look forward to cooperate with you.
