• Production Capacity：100000 Sets,Year

Basic Info.

Production Capacity 100000 Sets/Year

Product Description

Laser Cutting machine Instructions

The machine is equipped with a dedicated CNC system of CypCut fiber laser cutting machine software based on the Windows operating system. It integrates a lot of laser cutting control function, powerful function, the software provides rich laser cutting process parameters, flexible Layout, and tooling editing capabilities, the introduction of lead, bridge, common edge, spot compensation, smooth curve, split, merge, automatically distinguish between internal and external modules and other functions readily available to provide real-time power regulation with speed PWM, progressive perforation explosion-proof holes and other special process, easy to operate,do not need to generate G code on the computer, directly into the CAD file can be cut into the system and other advantages.

Technical Data

Cutting Speed and Cutting Quality

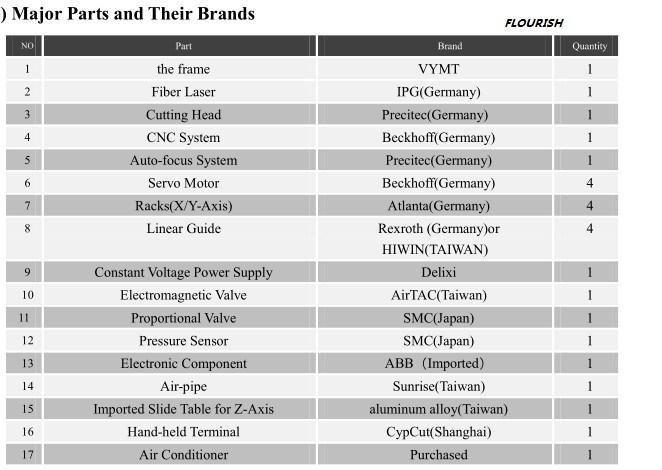

Main Parts

Daily Maintenance

(1) Check the laser air pressure.
(2) Check water pressure of the water chiller.
(3) Check cycled cooling water leakage.
(4) X, Y, Z axes zero check.
(5) Check and clean protective window.
(6) Check and clean nozzle.
(7) Clean waste trolley.
(8) Clean the cutting area.
(9) Drain of the air compressor
(10) Check drain of air filter.

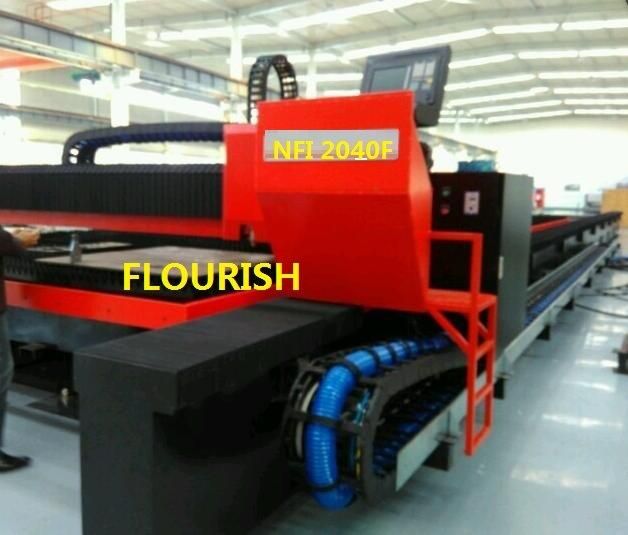

Machine Photo
