• Model NO.：CZH-30
• Trademark：BOBO
• Origin：China
• Production Capacity：1000 Sets Per 8 Hours Shift

Item

Data

Suitable fan guard size

8" ~ 23" (can be specially ordered)

Radial wire numbers

No limit

Suitable radial wire diameter

1.0~1.8mm

Outer ring wire diameter

3~4mm

Middle ring wire diameter

1.5~3mm

Production speed

Quicker than Taiwanese machines*

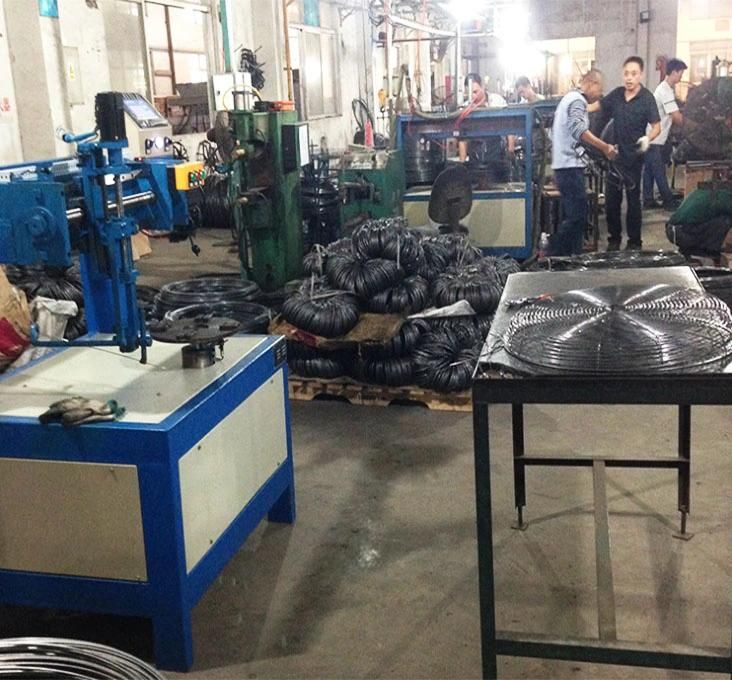

Production flow of electric fan guard productions:

Ring bending --- butt welding --- inner ring spot welding --- hydraulic press forming --- outer ring spot welding --- middle ring spot welding machine --- edge trimming --- handle forming --- handle spot welding

Main technical data of electric fan guard inner ring spot welding machine:

-- Machine code: XW-DN-16K

-- Suitable wire diameter: 1.0-1.8mm

-- Size of fan guard: 8"-20" (by changing flange moulds)

-- Rated welding power: 16kVA

-- Productivity: about 800-1000 pieces per 8 hours shift (16", 120 pieces radial wires)

-- Air consumption: 0.15M3/min

-- Welding current: 6A every welding point

-- Dimension: 1600 x 1000 x 1350mm

-- Weight: about 400kg

Main technical data of electric fan guard outer ring welding machine:

 -- Machine code: XW-WP-40K

 -- Suitable wire diameter of the outer ring: 3-4mm

 -- Rated welding power: 40kVA

 -- Size of guards: 8"-20"

 -- Productivity: 1000-1500 pieces (16", 120 radial wires)

 -- Air consumption: 0.4m3/min

 --Welding current: 10A per time

 -- Dimension: 1200 x 950 x 1550mm

 -- Weight: about 500kg

Main technical data of electric fan guard middle ring welding machine:

 -- Code: XW-ZP-40K

 -- Suitable wire diameter for middle ring: 1.5-3mm

 -- Rated welding power: 40KVA

 -- Size of guard: 8"-20"

 -- Productivity: 5000-8000 pieces (16", 120 pieces radial wires)

 -- Air consumption: 0.5M3/min

 -- Welding current: 10A per time

 -- Dimension: 1150 x 450 x 1600mm

 -- Weight: about 350kg

Main technical data of automatic ring making machine for electric fan guards:

 -- Machine code: DQ-08

 -- Hydraulic rolling and cutting, quick and accurate (length tolerance less than 1%).

 -- Suitable diameter: 1.0-8.0mm

 -- Suitable ring diameter: 60-800mm

 -- Main driving power: 2.2kW

 -- Linear wire feeding speed: about 30m/min

 -- Productivity: 6000-8000 pieces per 8 hours shift

 -- Dimension: 1500 x 800 x 1500mm

 -- Weight: about 500kg

Main technical data of ring butt welding machine for electric fan guards:

 -- Machine code: QD-PH25K

 -- Rated power: 25KVA

 -- Max. pressing force: 1100N

 -- Max. welding force: 450N

 -- Max. welding section area: 80mm2

 -- Welding speed: 5000-10000 pieces per 8 hours shift

 -- Dimension: about 850 x 550 x 1150mm

 -- Weight: about 300kg

Main technical data of electric fan guards edge trimming machine:

 -- Machine code: XB-2

 -- Driving motor power: 0.55kW

 -- Productivity: 6000-8000 pieces per 8 hours shift

 -- Weight: about 80kg

 -- Dimension: 600 x 400 x 800mm

Machine list for daily producing 1000 sets fan guards:

1) Automatic inner ring spot welding machine: 2 sets

2) Outer ring welding machine: 1 set

3) Middle ring welding machine: 1 set

4) Hydraulic press: 1set

5) Ring making machine: 1 set

6) Butt welding machine: 1 set

7) Edge trimming machine: 1 set
