• Model NO.：DK
• Driven Type：Electric
• Voltage：220V, 380V, Customized Definition
• Chamber Materials：SUS 304
• Service：24h, Remote Guidance
• Control System：Automatic, Manual, PLC
• Structure Type：Vertical Type
• Machine Type：PVD Machine
• Accessories：Pumps, Targets, Power Supply Available
• Warranty：at Least One Year
• Transport Package：Wood Case, Container
• Specification：1600*1500mm
• Trademark：Danko
• Origin：Ningbo, China
• HS Code：8479899990
• Production Capacity：1000sets,Year

Basic Info.

Model NO. DK Driven Type Electric Voltage 220V, 380V, Customized Definition Chamber Materials SUS 304 Service 24h, Remote Guidance Control System Automatic, Manual, PLC Structure Type Vertical Type Machine Type PVD Machine Accessories Pumps, Targets, Power Supply Available Warranty at Least One Year Transport Package Wood Case, Container Specification 1600*1500mm Trademark Danko Origin Ningbo, China HS Code 8479899990 Production Capacity 1000sets/Year

Product Description

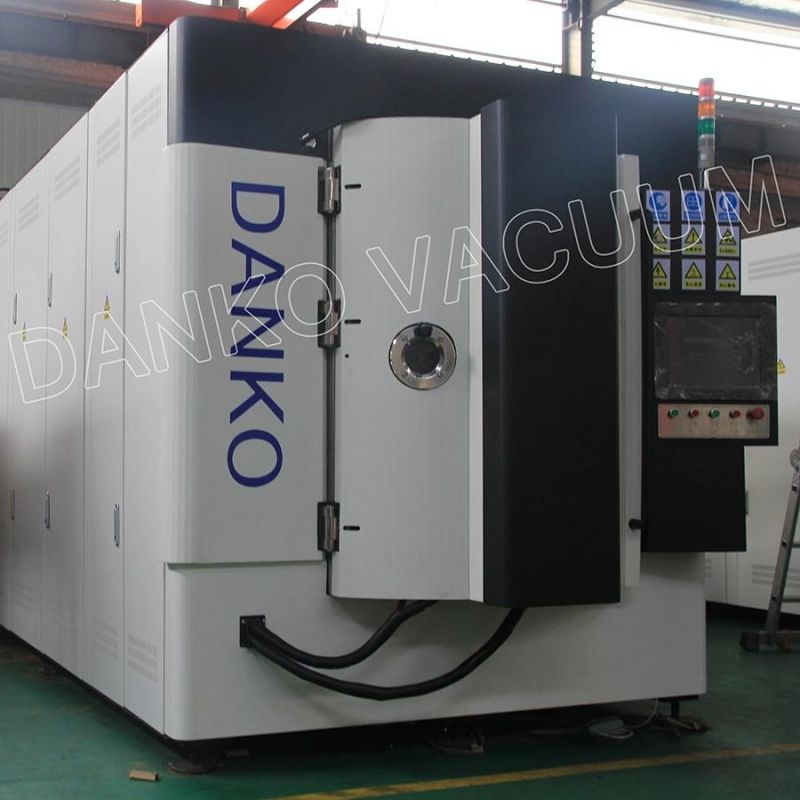

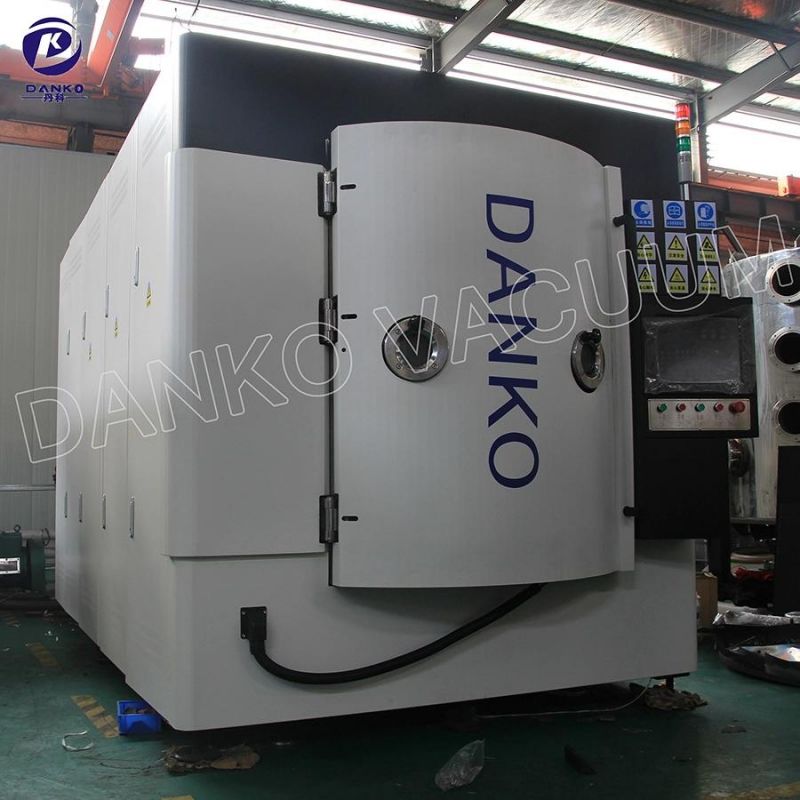

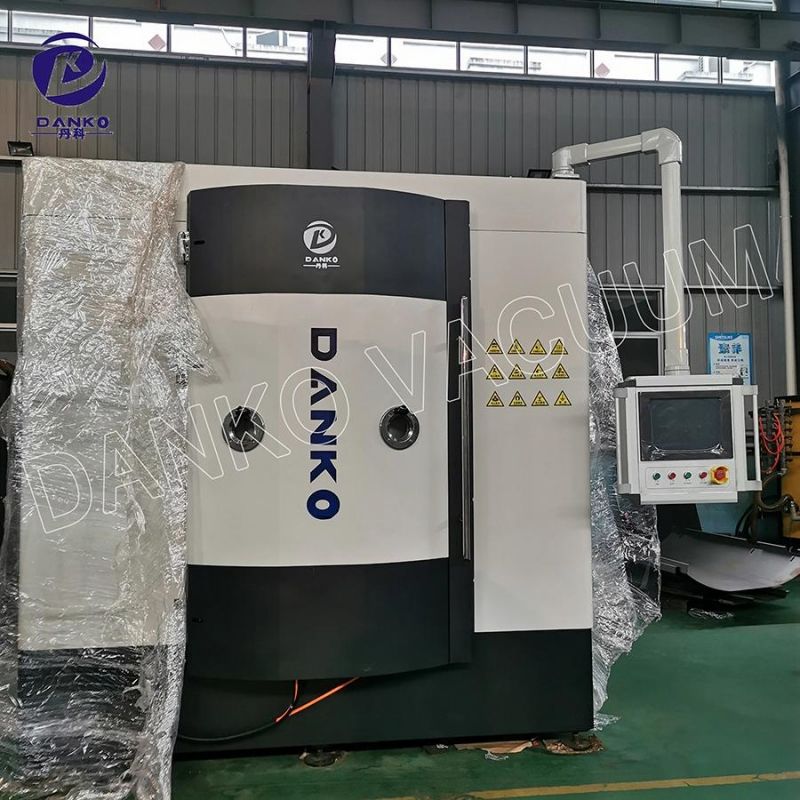

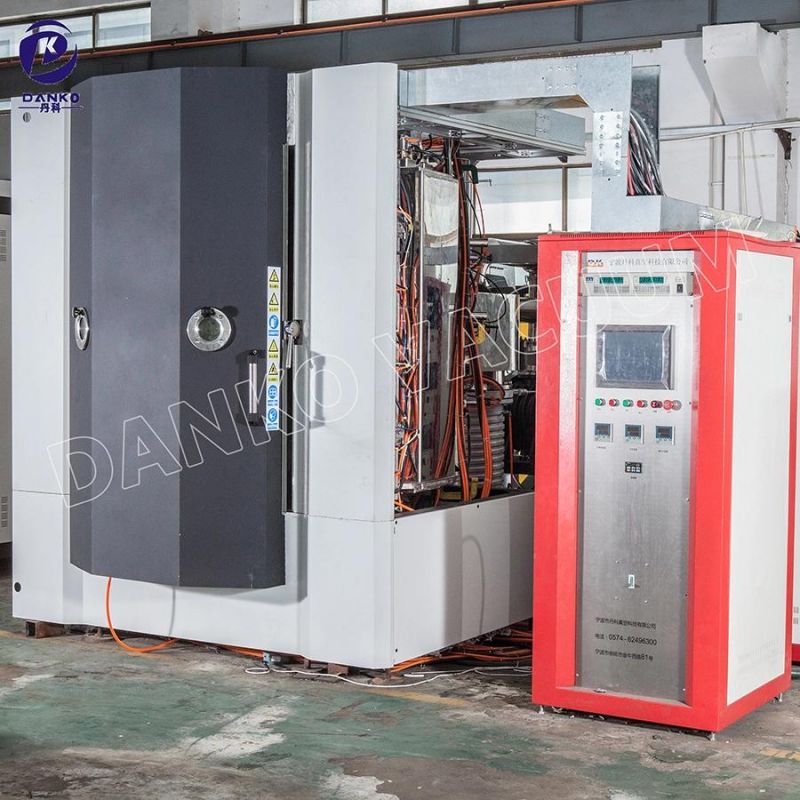

PVD Vacuum Coating Machine for High-End Products Such as Watches/Jewelry/Tableware

[PVD] Physical Vapor Deposition: Vacuum deposition methods which can be used to deposit thin films and coatings.


Arc Discharge
An electric arc or arc discharge is an electrical breakdown of a gas that produces an ongoing electrical discharge. The current through a normally nonconductive medium such as air produces a plasma; the plasma may produce visible light. An arc discharge is characterized by a lower voltage than a glow discharge, and it relies on thermionic emission of electrons from the electrodes supporting the arc.


Description
Substrate Material: Glass, Metal (carbon steel, stainless steel, brass), Ceramics, Plastic, Jewelry.
Recommend Machine: Multi Arc Ion Coating Machine
Structure Type: Vertical structure, #304 Stainless Steel
A. Coating Film: Multi-functional metal film, composite film, transparent conductive film, reflectance-increasing film, electromagnetic shielding film, decorative film
B. Film Color: multi colors, gun black, titanium golden color, rose golden color, stainless steel color, purple color and other more colors
C. Film type: TiN, CrN, ZrN, TiCN, TiCrN, TiNC, TiALN and DLC
D. Consumables in production: Titanium, Chromium, Zirconium







Process

Application

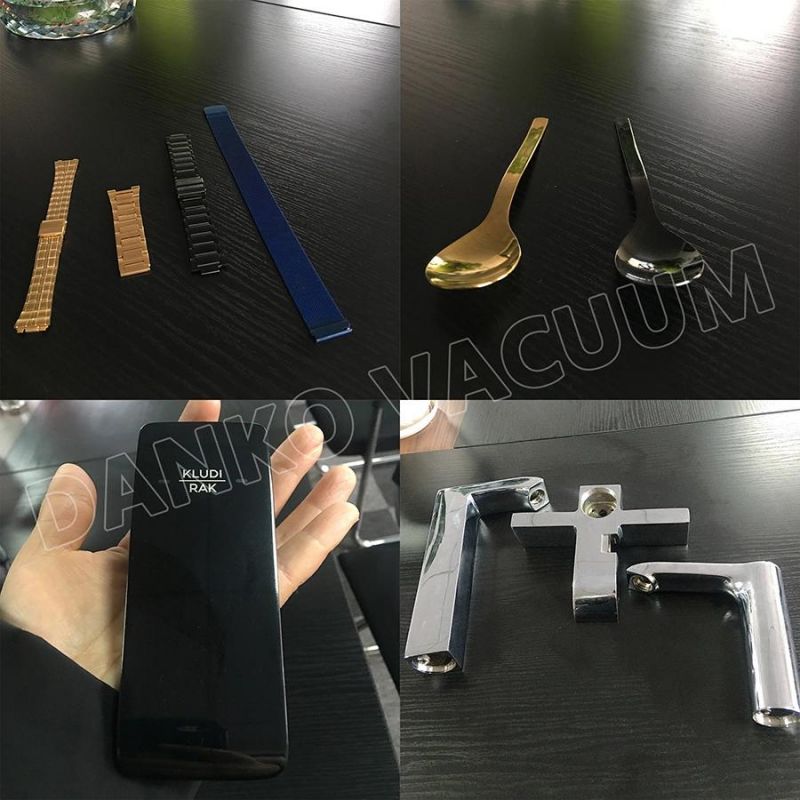

Decorative Film
A. Glassware, such as glass cup, glass lamps, glass artworks
B. Table wares, like metal forks and knives.
C. Golf wares, like golf head, golf pole and golf balls.
D. Sanitary Products/bathroom wares
E. Door handles & locks
F. Watches parts, like watch case and belt
G. Metal jewelry
H. Large size sheet, plate, pipe, tube and so on. Like large stainless steel plate and furnitures.




Advantages
A. Fast to film forming, with high deposition speed
B. Film with high Adhesive and high density
C. Without any gas or liquid wasted
D. Working stably with good vacuum performance
E. Customized processing services


Configurations

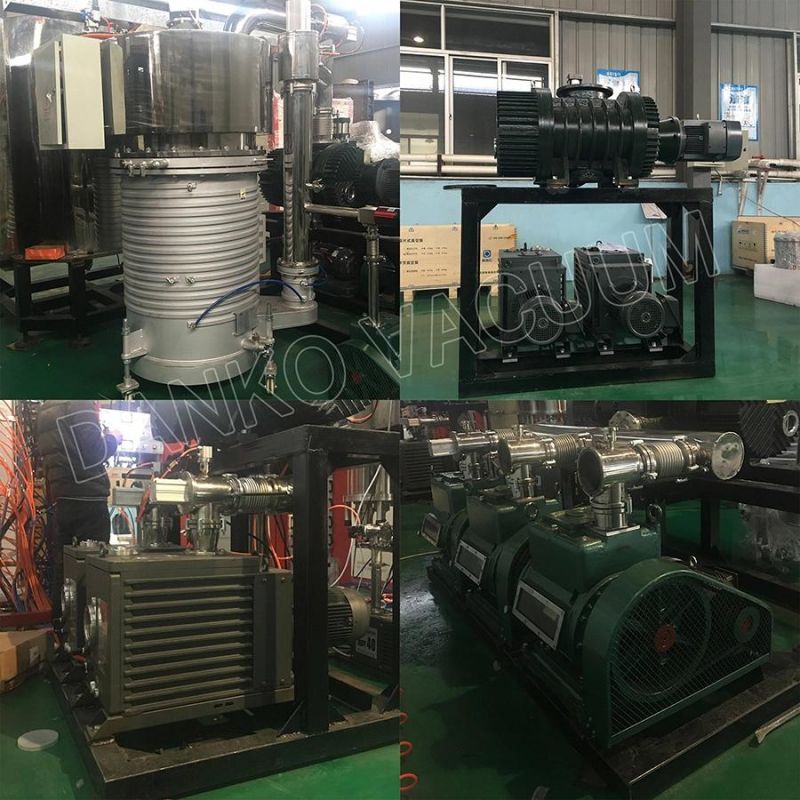

A. Pumps:
mechanical pump + roots pump + diffusion pump + holding pump (or optional: cryogenic pump, cryogenic pump system)
B. Gas System: 1~4 path
C. Limited Vacuum: 6*10^-4 pa (cleanroom, no-loading)
D. Arc Source : 4-18sets (according to different machine size)
E. Power Sources: DC power supply, Medium frequency power supply, medium frequency power supply, heater supply, activation power supply, pulsed bias voltage power supply
F. Targets: DC Magnetic Target, Medium Twin Target, Plane Target
H. Gas Time : 5*10^-4 pa, within 30mins
I. Controlled by Manual, Semi-automatic, Full automatic, PLC

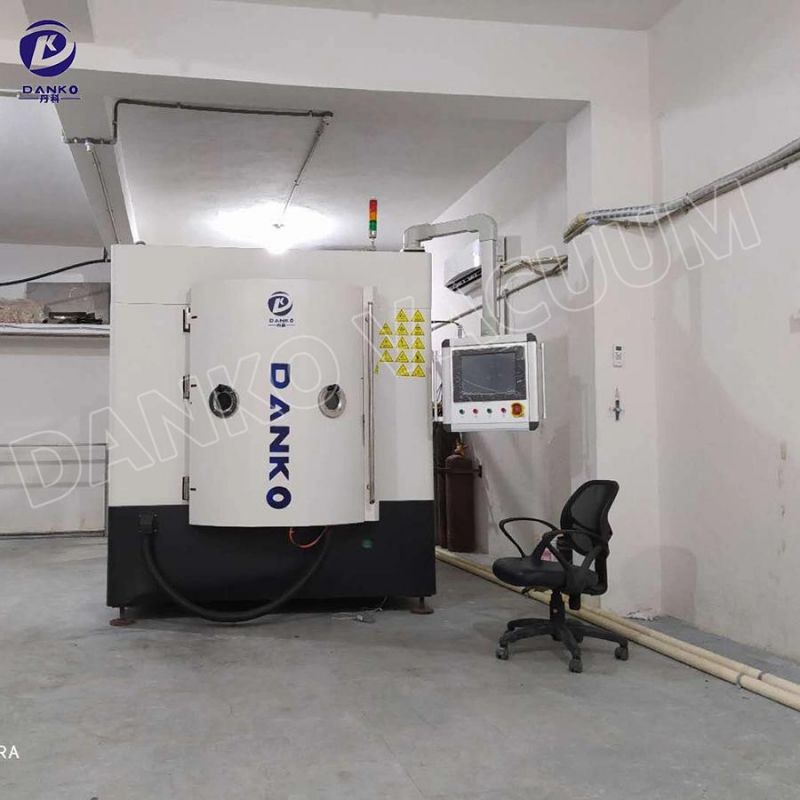

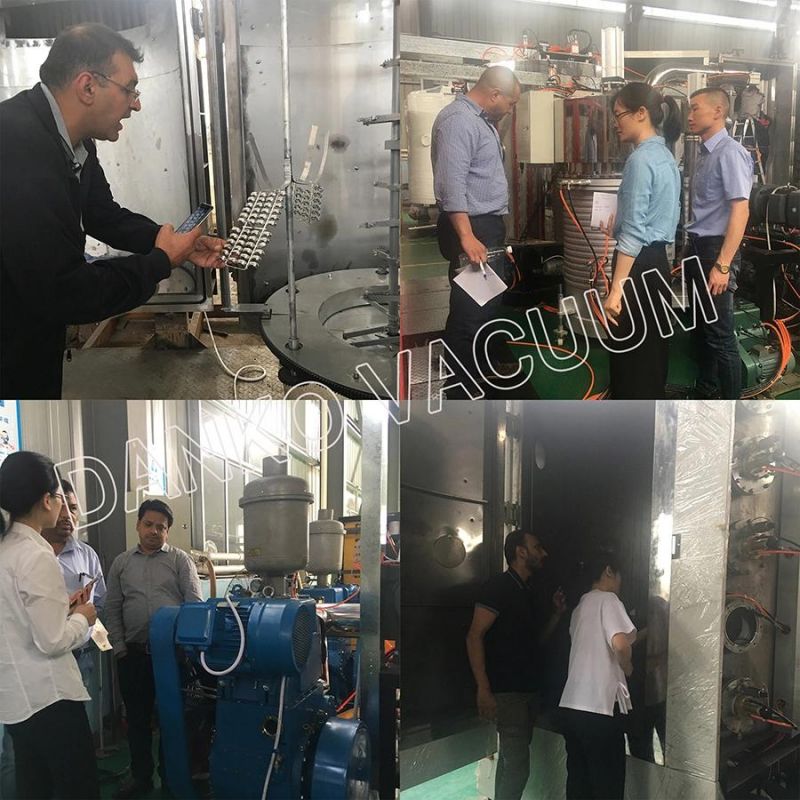

Customer visit



Shipment

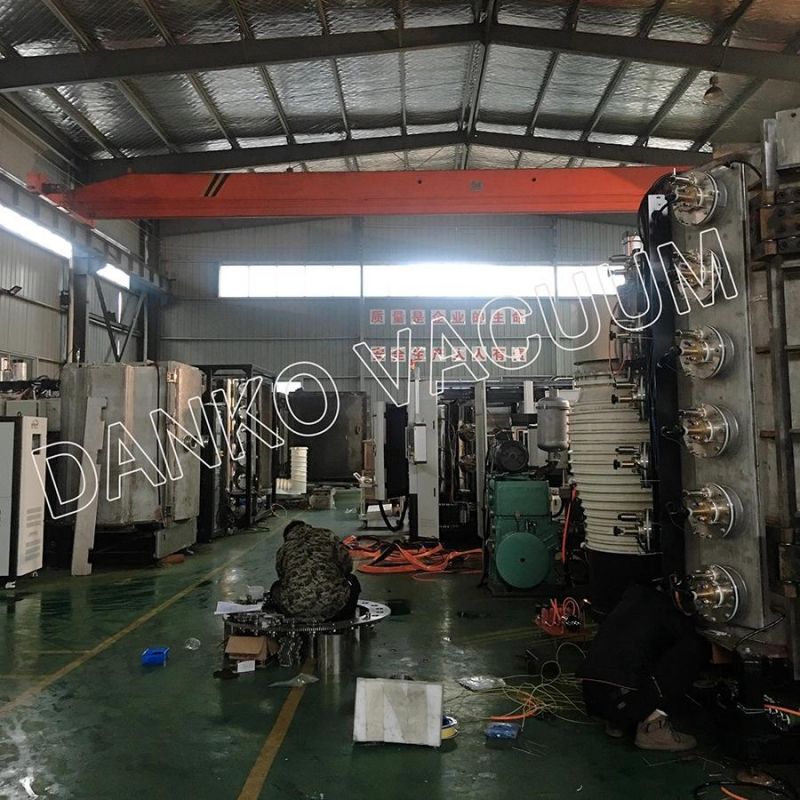

Workshop



For more details on configurations quotations, please contact us.
