• Model NO.：HT-2400
• Power：150kVA*13
• Size：7500*3800*1750mm
• Weight：6.5ton
• After Sales Service：Reply Within 24 Hours
• Current：AC
• Model：Hengtai
• Application：Construction Building Work Project
• Transport Package：According to Customer′s Request
• Specification：2400mm
• Trademark：Hengtai
• Origin：China
• HS Code：8463300000
• Production Capacity：10sets,Month for Reinforcing Mesh Welding Machine

Basic Info.

Model NO. HT-2400 Power 150kVA*13 Size 7500*3800*1750mm Weight 6.5ton After Sales Service Reply Within 24 Hours Current AC Model Hengtai Application Construction Building Work Project Transport Package According to Customer′s Request Specification 2400mm Trademark Hengtai Origin China HS Code 8463300000 Production Capacity 10sets/Month for Reinforcing Mesh Welding Machine

Product Description

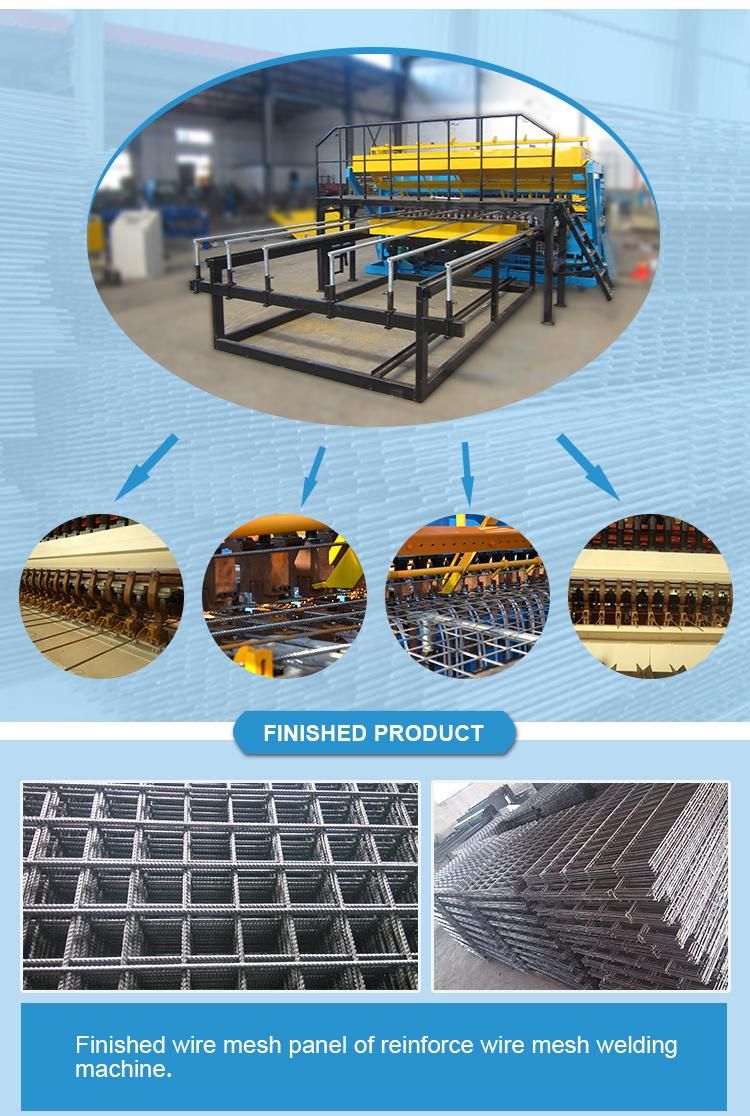

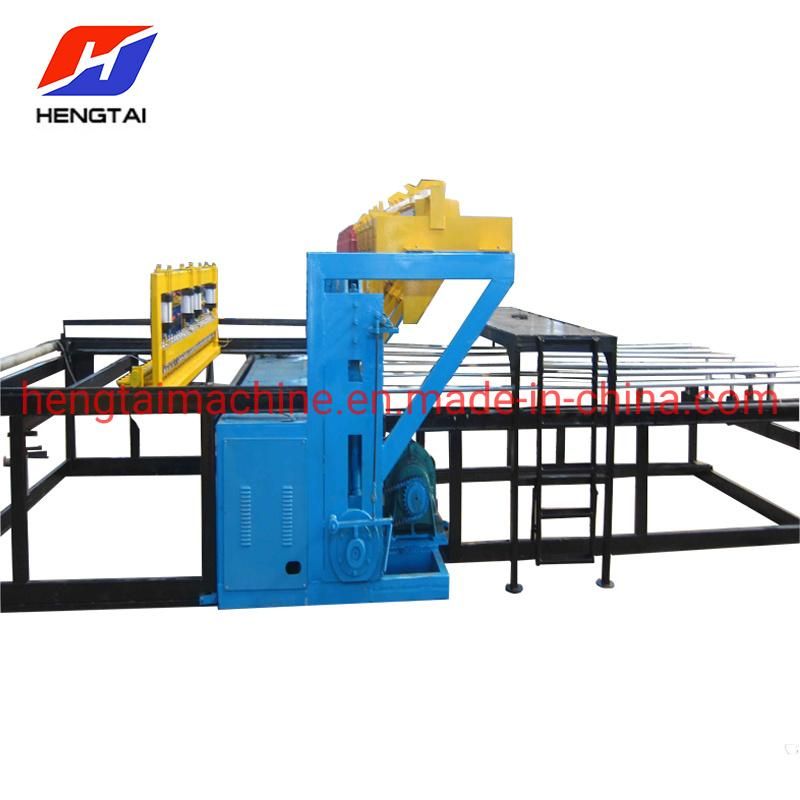

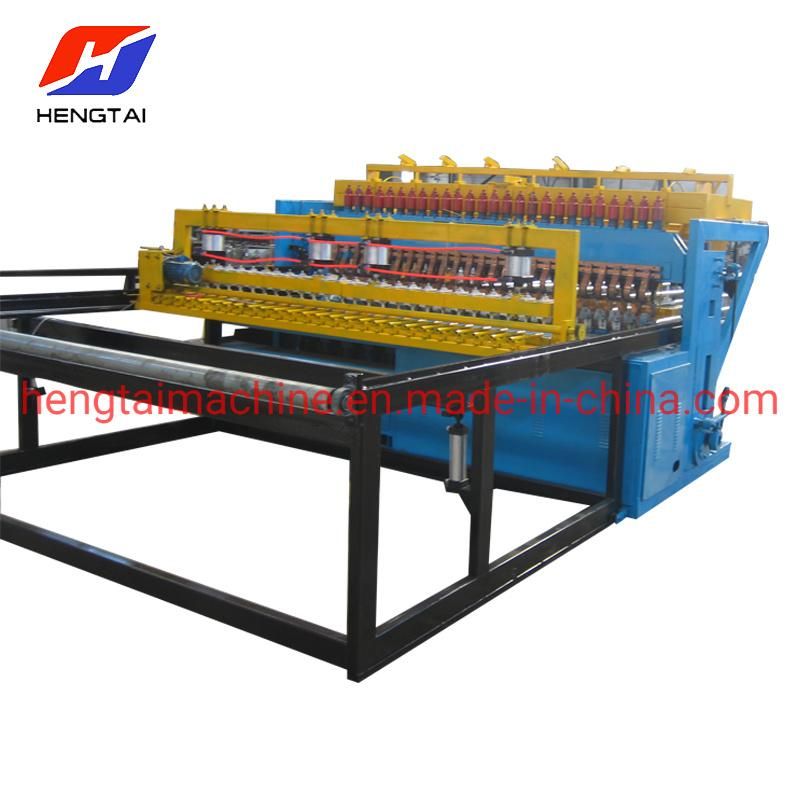

Construction Building Project Reinforcement Steel Wire Mesh Panel Welding Machine

1.Function Characteristics:

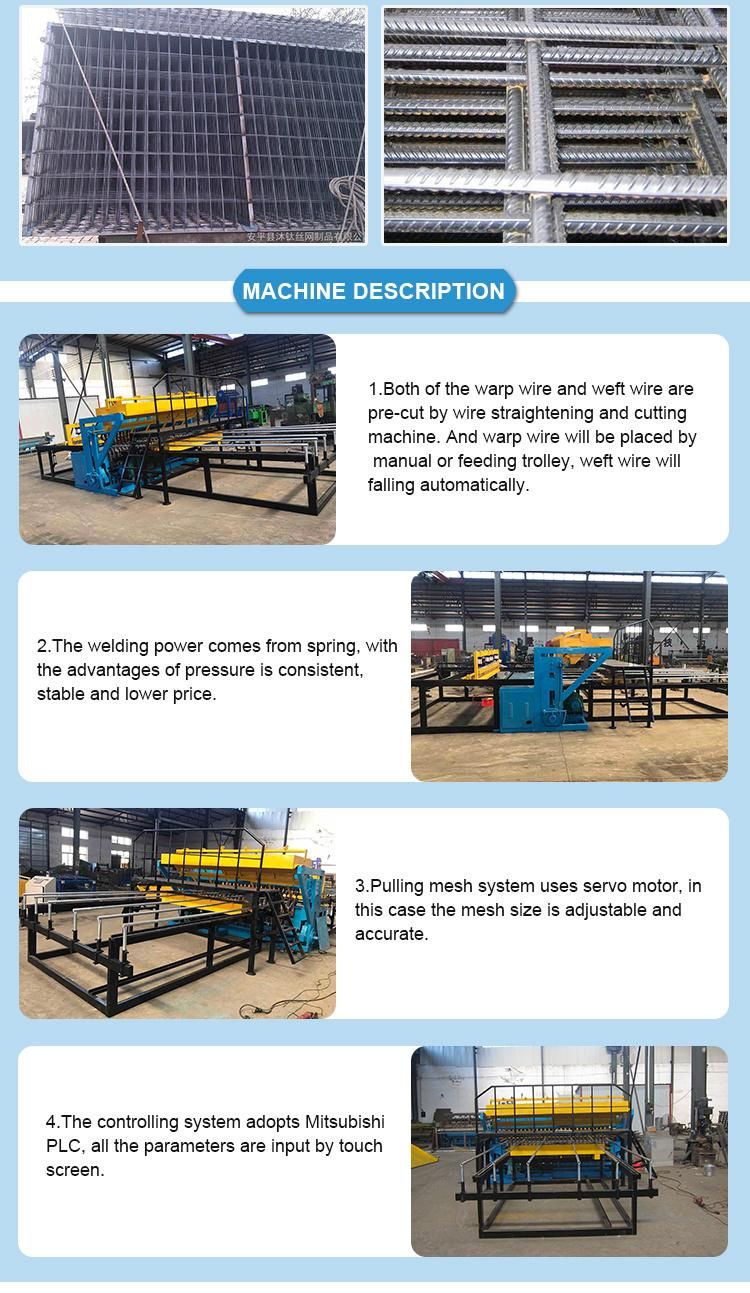

It adopts synchronous control skill. The welding time and separate welding are controlled by computer based on windows operation system, which makes the operation more intelligentized. The longitudinal wires are fed continually in coils, which can be straightened, cut, welded, and placed in order automatically, mesh drawing system is controlled by servo motor which improves the precision of mesh opening size, meanwhile the longitudinal and transversal spacing are adjustable.

The magor feature of this machine is that is realizes continual welding in coil wires. In addition, it simplifies the process that every tensile spring has to be changed when the welding wire diameter is different. You only need to switch the control button of are cylinder to change the pressure of welding point.

Application: Highway, railway, bridge, enclosure mesh, fencing construction and so on.

2.Parameter


name	reinforcing mesh welding machine
wire diameter	5-12mm
welding aperture	100-300mm
width of mesh	2400mm(we can customize it for you)
welding speed	30 times/min
voltage	380v or as local standard
transformer	150kva*12

3.Hengtai Wire Mesh Machine Factory:






4.Our service:

1. With 12 months free warranty, reply within 24 hours after sales service.

2. As per your special requirements which are also welcome to discuss.

5.Payment term:

1.40% T/T in advance, The balance against the copy of the B/L

2. L/C is also acceptable

3. As per your special requirements which are also welcome to discuss
