Hand Held Pneumatic Strapping Tools for Cardboard or Corrugated Stripping
Tangshan Jiasun Import and Export Co., Ltd.- Speed：2500rpm
- Min Stripping Edge：10 mm
- Air Pressure：0.65MPa
- Net Weight：3.25kg
- Gross Weight：10kg
- Dimensions：470*250*60mm
Base Info
- Model NO.：HF-03
- Brand：Jiasun

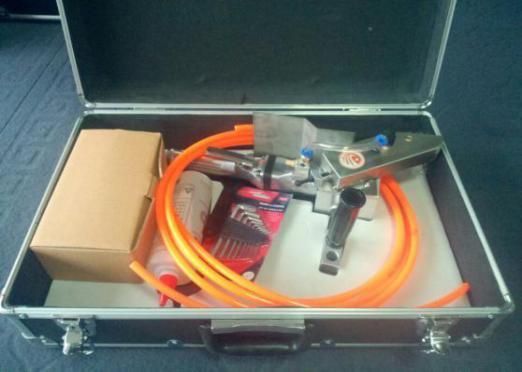

- Transport Package：Box
- Trademark：JIASUN
- Origin：Hebei China
- HS Code：8441809000
- Production Capacity：50 PCS,Month
Description
Gross weight 10KG(rigid box package) 470×250×60mm 7KG (carton package) 480×270×180mm Chain weight 0.4KG
Chain reference
Function
The machine is used for strip off waste edges of die-cut cardboard, thin/ordinary corrugated paper.
Main Features
a) Safe and durable:
The pneumatic motor is imported from Taiwan, long working life. Teeth Chain adopts high-strength chromium by heat treatment-- durable, long life span with easy and fast spare parts change. It produced according to the CE standard.
b) Easy Operate:
The structure is light, compact and user friendly- only short time training can operate for male or female operators.
c) High Efficiency and less waste:
The machine is high efficient equipment; the efficiency can be 5-10 times higher than the manual one and no damages to the products.
Mechanical structure:

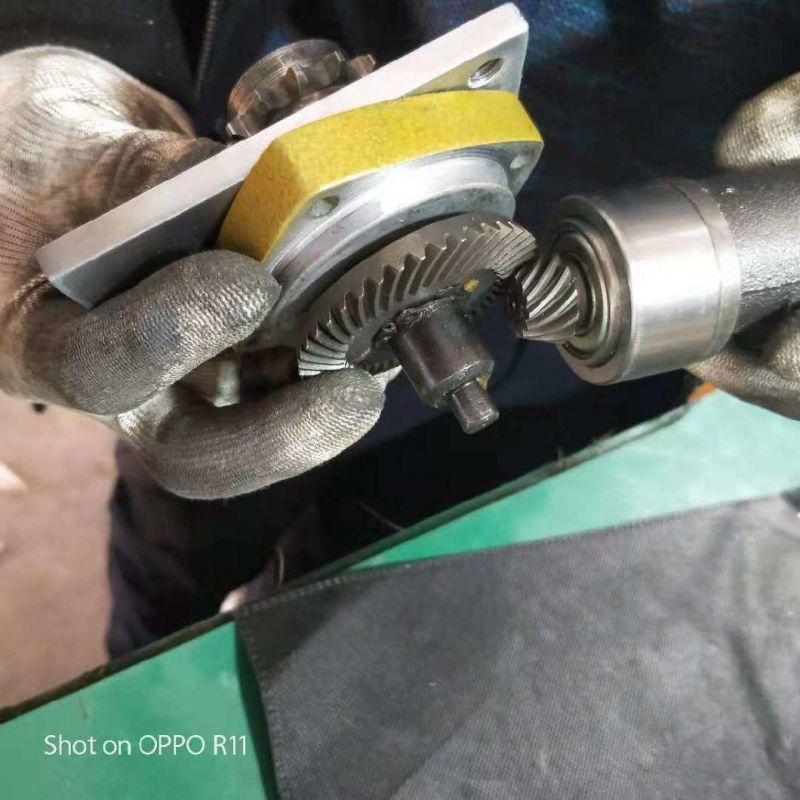

The link between the pneumatic motor and the drive shaft uses a bevel gear structure to change the direction of rotation and reduce the speed.

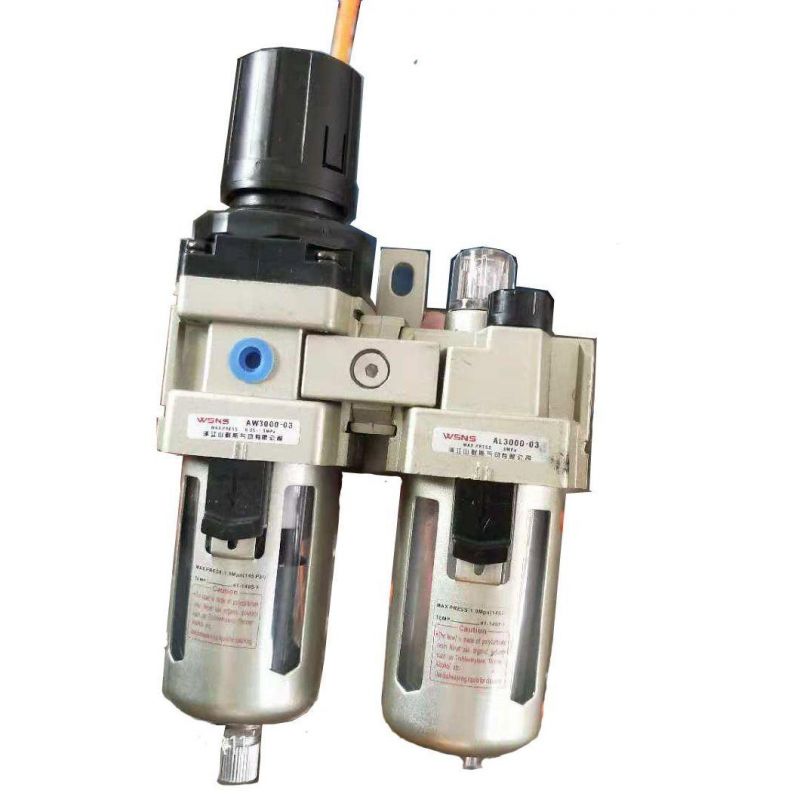

The oil-water separator is to remove the moisture from the air and add pneumatic tool oil to the air.
Pressure change can be monitored at any time through the barometer.
Accessories and Spare Parts of the Machine:

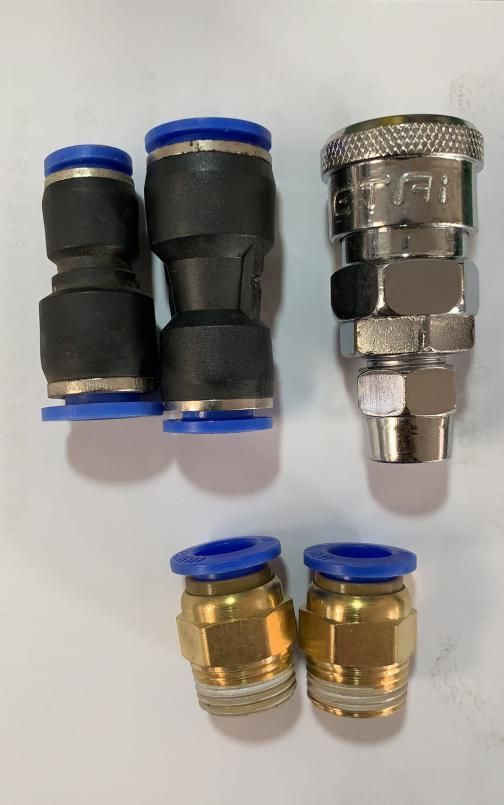

Spare parts: 5 meters plastic pipe, 1 oil-water separator, 5 pipe connectors.
Other Related Information.
1. The delivery time is 10 days after purchasing order and 100% down payment received. The
delivery time might be shorter if we have machine on hand.
2. The charge of installation, adjustment and air ticket is not included in the price.
3. The subsidy of an engineer is $50.00 per day if installation service is needed.
4. Payment: T/T.
5. Port of shipment: Tianjin Port, China.
6. Term of validity: One month
Chain reference
| Model | Min Stripping Edge | |
| Small tooth HF-03 | waste edge >8mm | Cardboard ,E corrugated sheet |
| Medium tooth HF-02 | waste edge >15mm | E,B,C,F with 3 lay corrugated sheet, above 300gsm cardboard |
| Big tooth HF-01 | waste edge >20mm | 3,5,7 play corrugated sheet |
| Double row narrow tooth | narrow slit >4mm | Cardboard |
Function
The machine is used for strip off waste edges of die-cut cardboard, thin/ordinary corrugated paper.
Main Features
a) Safe and durable:
The pneumatic motor is imported from Taiwan, long working life. Teeth Chain adopts high-strength chromium by heat treatment-- durable, long life span with easy and fast spare parts change. It produced according to the CE standard.
b) Easy Operate:
The structure is light, compact and user friendly- only short time training can operate for male or female operators.
c) High Efficiency and less waste:
The machine is high efficient equipment; the efficiency can be 5-10 times higher than the manual one and no damages to the products.
Mechanical structure:
The link between the pneumatic motor and the drive shaft uses a bevel gear structure to change the direction of rotation and reduce the speed.
The oil-water separator is to remove the moisture from the air and add pneumatic tool oil to the air.
Pressure change can be monitored at any time through the barometer.
Accessories and Spare Parts of the Machine:
Spare parts: 5 meters plastic pipe, 1 oil-water separator, 5 pipe connectors.
Other Related Information.
1. The delivery time is 10 days after purchasing order and 100% down payment received. The
delivery time might be shorter if we have machine on hand.
2. The charge of installation, adjustment and air ticket is not included in the price.
3. The subsidy of an engineer is $50.00 per day if installation service is needed.
4. Payment: T/T.
5. Port of shipment: Tianjin Port, China.
6. Term of validity: One month
