• Model NO.：as the drawing
• Application Range：Continuous Rolling Mill,Mpm,Fqm,Pqf
• Transport Package：Woodern Case
• Specification：max 20m, Diameter 100mm-500mm
• Trademark：FANGLE
• Origin：China
• Production Capacity：50000tons,Year

Basic Info.

Model NO. as the drawing Application Range Continuous Rolling Mill,Mpm,Fqm,Pqf Transport Package Woodern Case Specification max 20m, Diameter 100mm-500mm Trademark FANGLE Origin China Production Capacity 50000tons/Year

Product Description

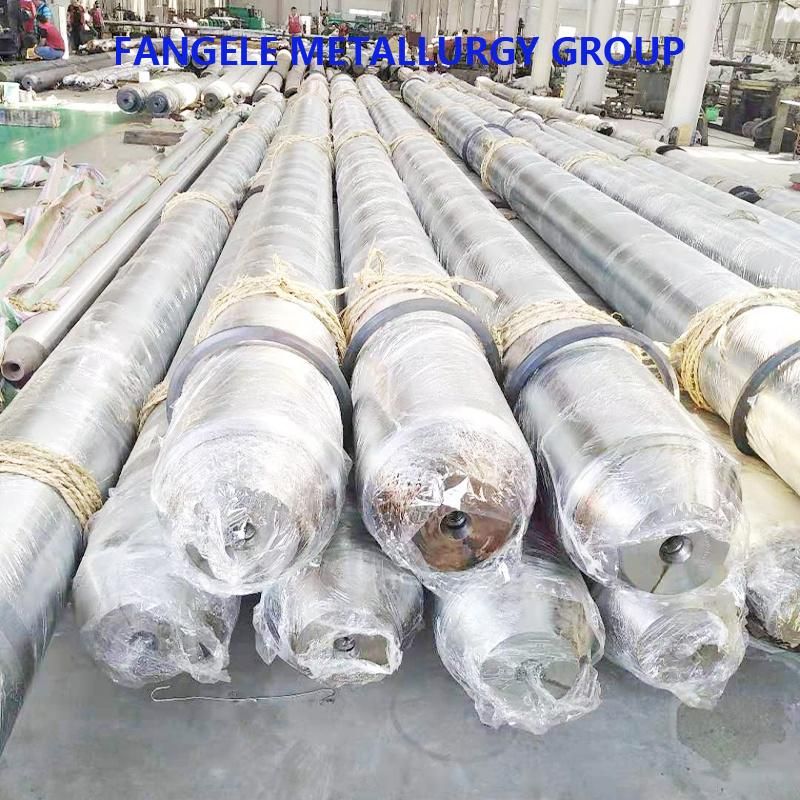

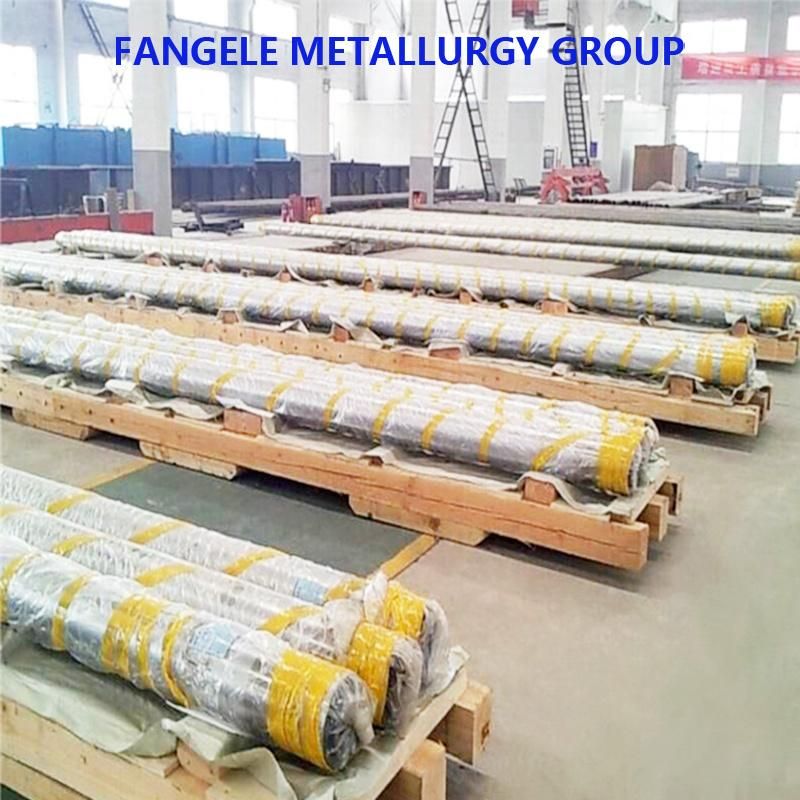

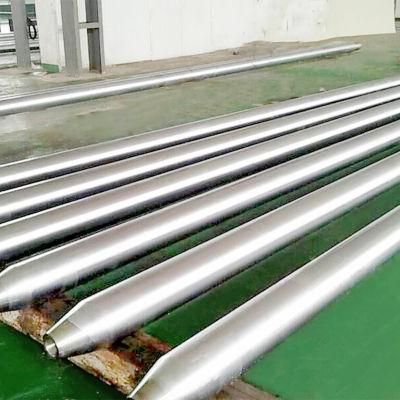

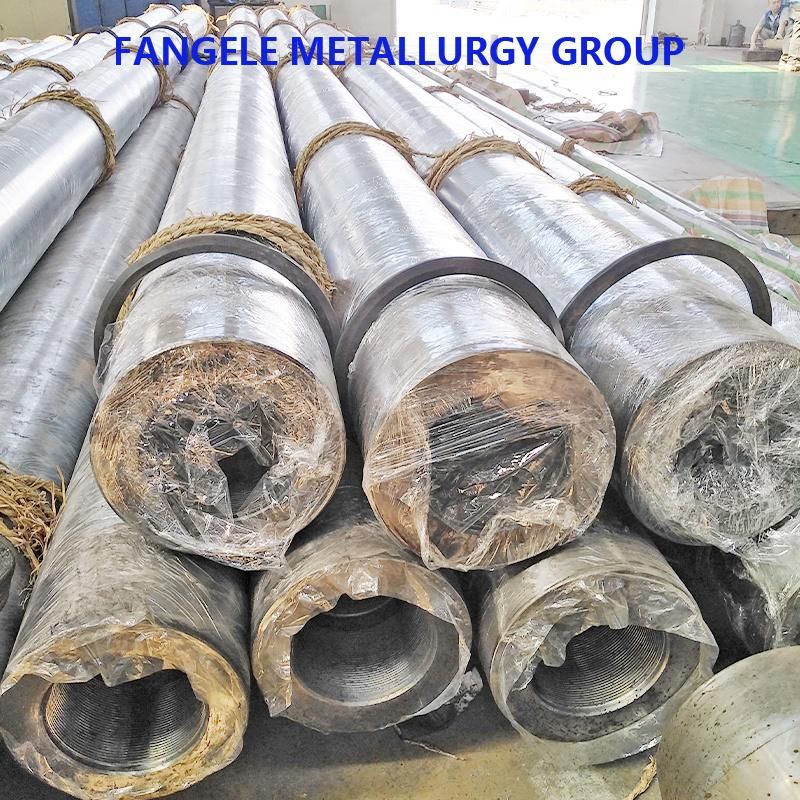

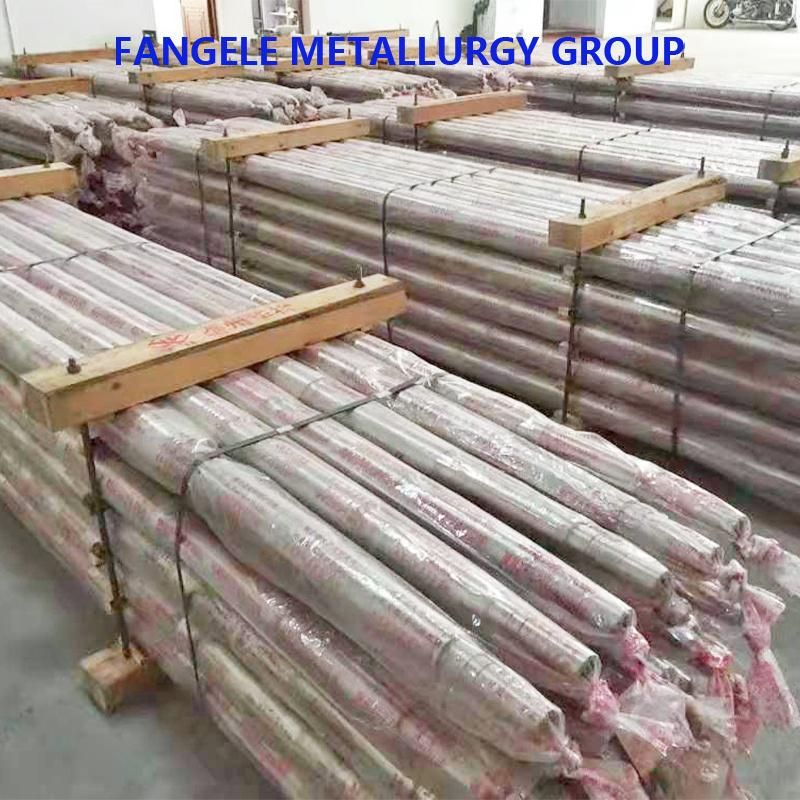

Chrome Plating Mandrel for Multi-Stand Plug Mill

Description
The Mandrel bar is the important tool for multi-stand pipe mill process,which is also called Mannesmann plug mill process or multi-stand plug mill.The mandrel bar is used to roll a pre-pierced steel billet to produce a tube blank (the preliminary seamless tube).
The multi-stand plug mill (MPM) with controlled (constrained) floating mandrel bar and the plug mill process in the size range from approx. 140 to 406 mm outside diameter.Mandrel with hardened and chromed surfaces ,basic wear resistance can be achieved, and by using ultraplate coating the mandrel life will be multiplied several times.

Production process:
1) forging
2) rough machining
3) magnetic test
4) heating treatment
5) ultrasonic test
6) finish machining
7) chromium plating
8) thread phosphating
9) package

Products Parameters

Materials	AISI H13, X35CrMo V51 ,4CrMoSi V1,28NiCrMoV10 etc.
Diameter	80-600mm
Length	max to 20,000mm
Hardness	Meet the customers' requirements
Surface Processing	Chrome plating
Threading	Available, phosphating
Chrome plating	As per requirement,thickness 0.045-0.065mm
Process	EBT + LF (VD) + ESR
Property tests	Magnetic testing,Ultrasonic testing etc.
Lead time	about 45 days
Delivery condition	Finished machining
Application	MPM, PQF and FQM mills,Assel Mills,Accu-roll mill, Push Bench, Pilger mill,continuous tube mill etc
Market	India,Saudi Arab,Russia,Slovenia,Thailand,Vietnam etc.
