• Model NO.：NAEC
• Spinning Deformation Condition：Hot Spinning
• Spinning Belt Wheel Type：Rolling V Type Belt Wheel
• Spinning Wheel Number：Double
• Finished Product：Pipe
• Finished Product Shape：Cylinder Shape
• Suitable for Pipe Length Range：0.5m to 12m
• Two Models Available：16" Type and 16"-36" Type
• Brand Name：Naec
• Control Mode：PLC
• Place of Origin：Nanjing
• Transport Package：Packed in Container
• Specification：SGS, ISO9001
• Trademark：NAEC
• Origin：China
• HS Code：85153190
• Production Capacity：200 Sets,Year

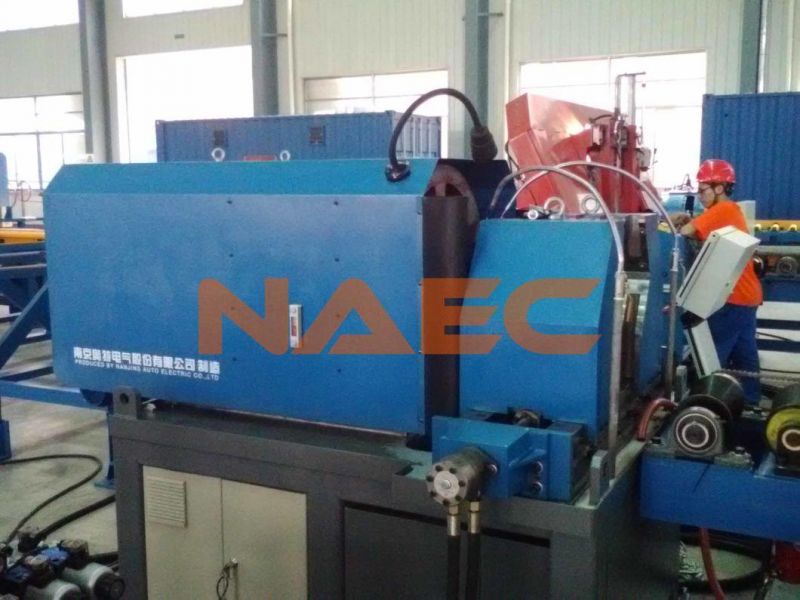

Pipe Cutting& Beveling All-in-one Machine

>Suitable for pipes not larger than 8",max.thickness:20mm

>Cutting efficiency:100times/8hrs

>PLC control with automatic measuring to guarantee the same processing cycle

>Widely used for small bore C.S/S.S production lines

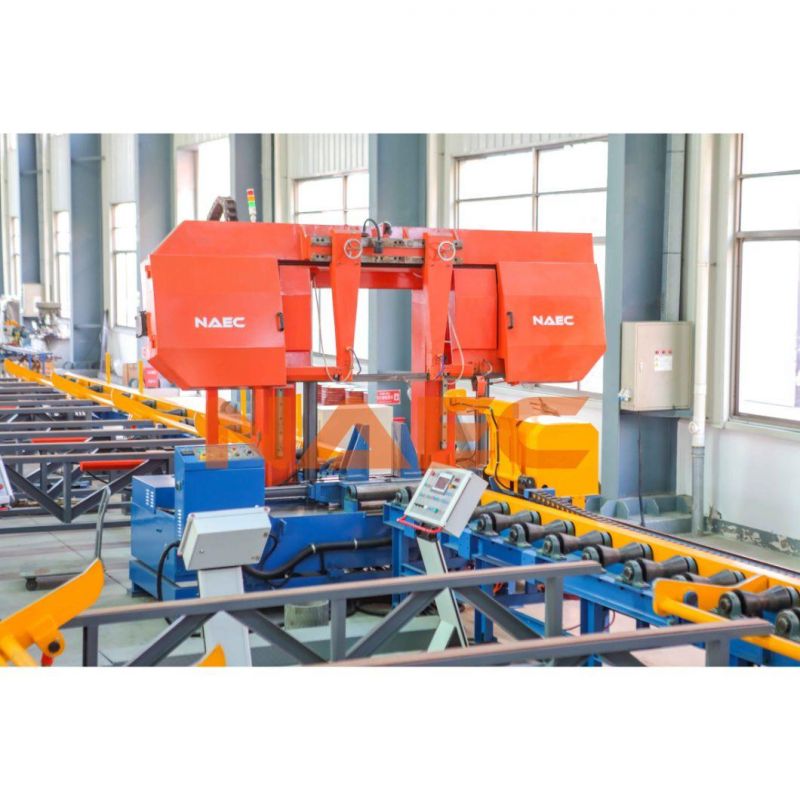

High Speed Band-saw Cutting Machine

>Three models available(16"type,24"type",48"type)

>PLC system control;self-measuring function with precision:±0.5mm

>Using hydraulic self-centering chuck

>It only takes 6 minutes to cut a 24" pipe of 25mm thickness

>Widely used for C.S/S.S production lines.

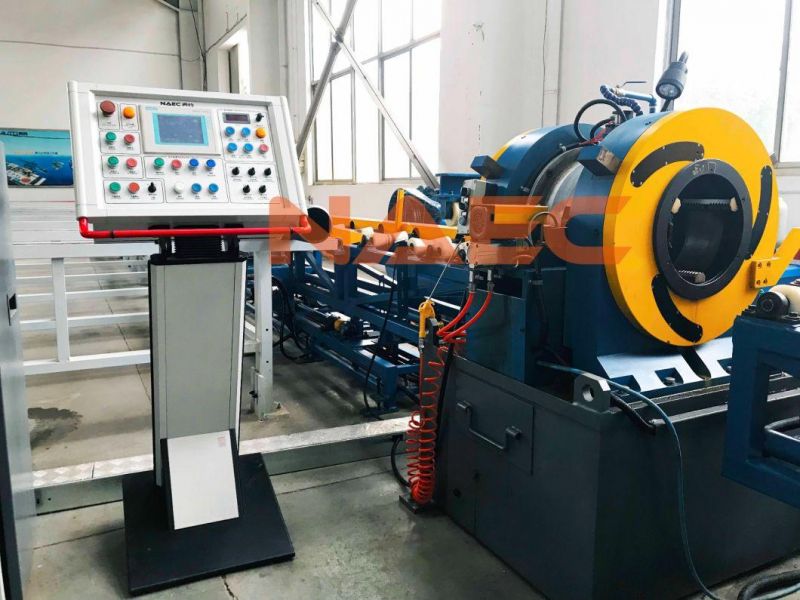

High Speed CNC Pipe End Beveling Machine

>Automatic self-centering chuck

>Single V,double V,U type bevel

>Can be matched with pipe end turning devic

>High speed beveling:for example,it only takes 2.5minutes to get a 37.5 degree bevel for a S.S pipe end(diameter :610mm,thickness:25mm)

>Several models available:16",24",32",48"

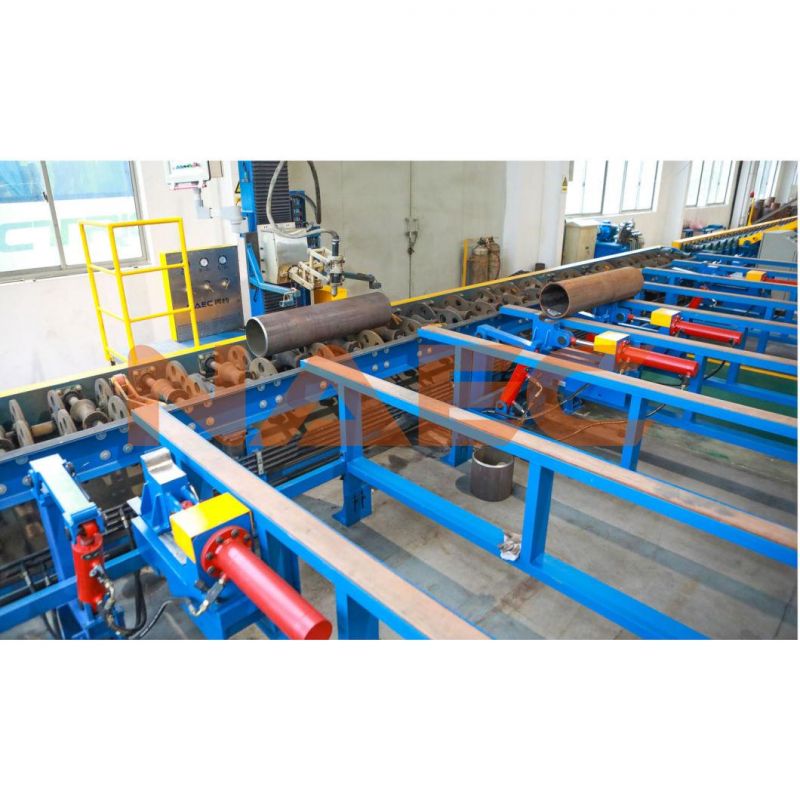

Two / Multi- Axis CNC Flame/Plasma Cutting Machine
>High efficient pipe cutting with automatic self-measuring function, pipe end beveling, intersection line profiling for both main and branch pipe.

>Five/multi-axis cutting machine can profile more complicated outlines with various bevel type

>Standard machine suitable for pipes nor larger than 24''

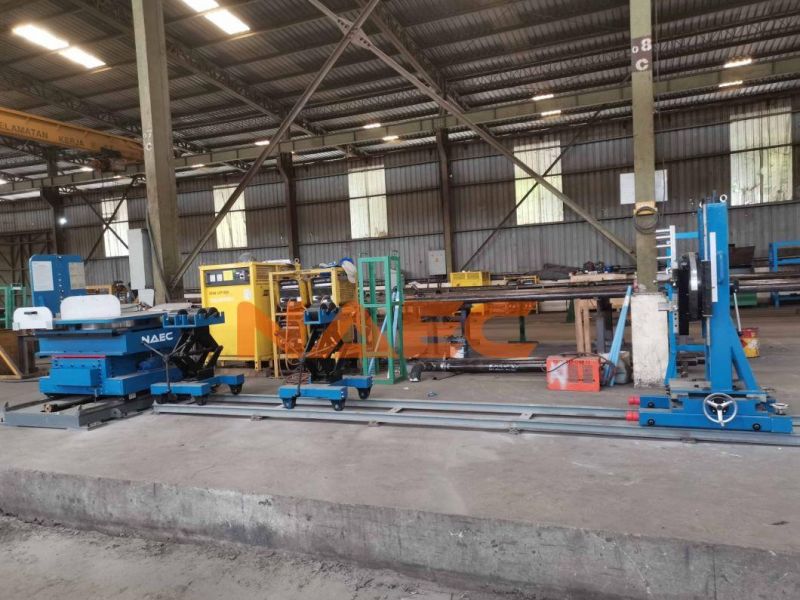

Multi-function Pipe Fitting-up Station

>Suitable for flange,elbow,tee,reducer to pipe and special T-joint fitting-up.

>Light-duty type(manual) and heavy-duty type(motorized) are available.

>Different types available, 8" type, 24" type, 32" type, 48" type, 60" type

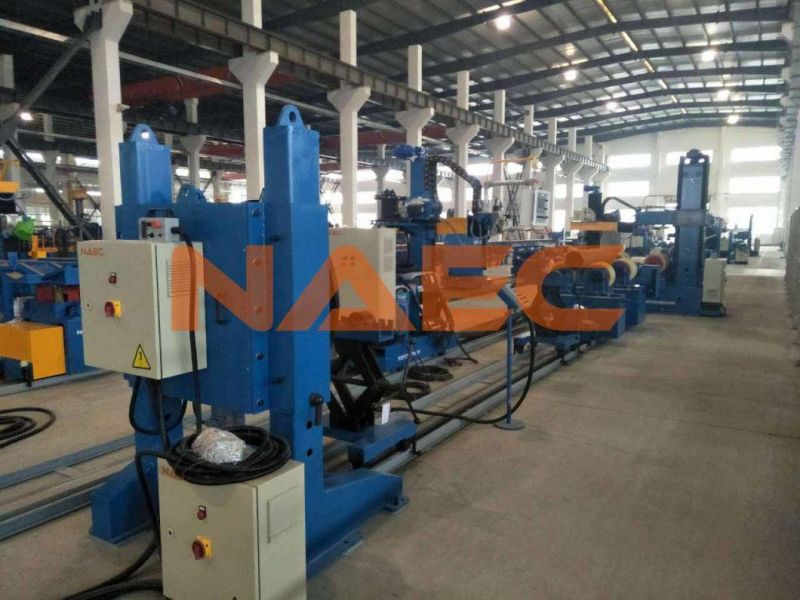

Automatic Pipe Welding Station

>With two welding heads

>TIG/MIG/SAW are optional

>PLC system control & WPS programmed

>Max. efficiency fo reach welding head can be 400D.I/8hrs even use TIG/MIG technology.

>Different types available, 8" type, 24" type, 32" type, 48" type, 60" type

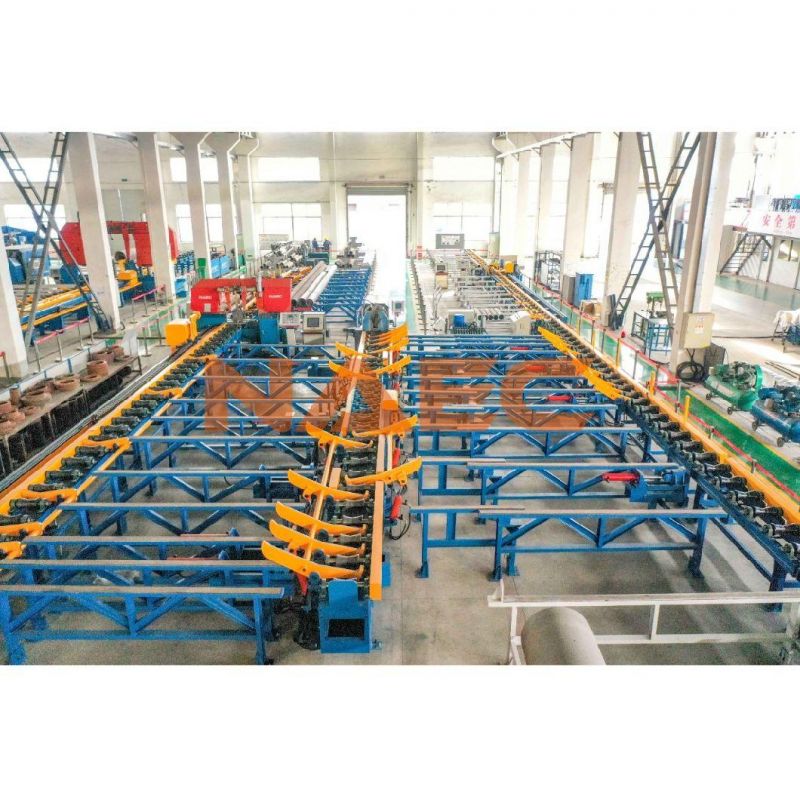

Conveyor Handling System

>used for pipe convenient transporation during in pipe spool fabrication.

>Its speed is adjustable between 2M to 20M/min.

For more information, please contact us, thank you!
