Metallic Processing Machinery

Low Cost Steel Plate CNC Plasma Cutting Machine

Dezhou Sean CNC Equipment Co., Ltd.
  • Customized:Customized
  • Layout:Coaxial
  • Cutting Material:Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
  • Automatic Grade:Automatic
  • Power Source:Electric
  • Cutting Mode:Plasma Cutting

Base Info

  • Model NO.:SuperFast 1530
  • Name:CNC Plasma Cutting Machine
  • Cutting Thickness:0.5-40mm
  • Cutting Speed:100-12000 mm,Min
  • Cutting Accuracy:±0.5mm
  • Drive:Stepper Motor
  • Nesting Software:Startcam
  • Control System:Fangling F2300b
  • Plasma Power Source:Huayuan,Seanior,Hypertherm
  • Application:Industrial Metal Cutting
  • Transport Package:Wooden Box Package
  • Specification:1500*3000mm
  • Trademark:Seanior
  • Origin:China (Mainland)
  • Production Capacity:400 Sets,Year

Description

Basic Info.

Model NO. SuperFast 1530 Name CNC Plasma Cutting Machine Cutting Thickness 0.5-40mm Cutting Speed 100-12000 mm/Min Cutting Accuracy ±0.5mm Drive Stepper Motor Nesting Software Startcam Control System Fangling F2300b Plasma Power Source Huayuan/Seanior/Hypertherm Application Industrial Metal Cutting Transport Package Wooden Box Package Specification 1500*3000mm Trademark Seanior Origin China (Mainland) Production Capacity 400 Sets/Year

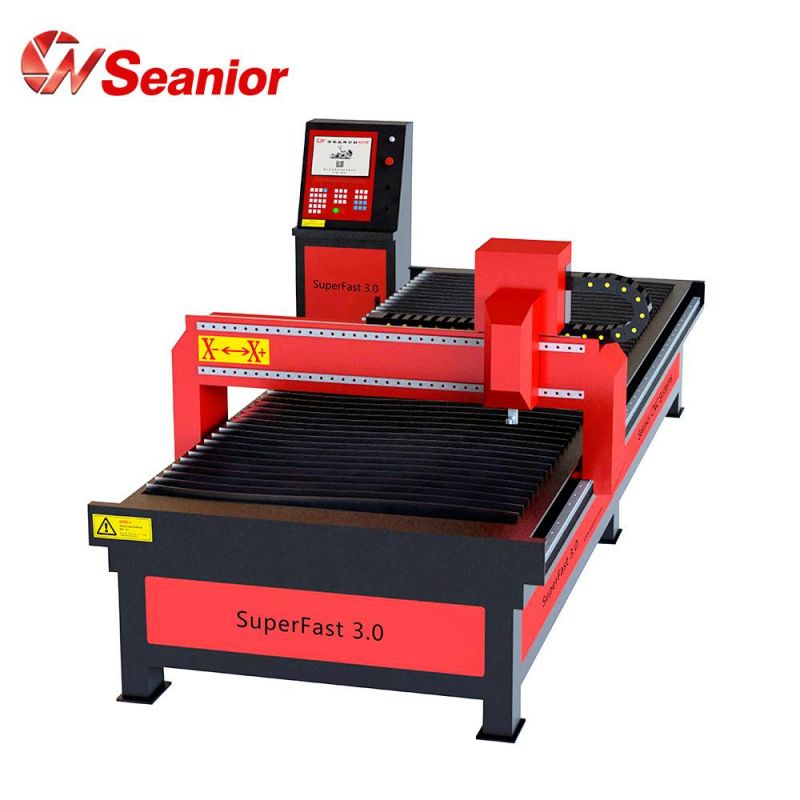

Product Description

Product Presentation:
Low Cost Steel Plate CNC Plasma Cutting Machine
(CNC Plasma Cutting Machine    SuperFast 1530)
Low cost plasma and cutting machine | Fast, Accurate, Long work hours
Low Cost Steel Plate CNC Plasma Cutting Machine

* High quality, low cost, maximum productivity
* Easy to use
* Precision cut quality

* Fast, reliable and long work hours

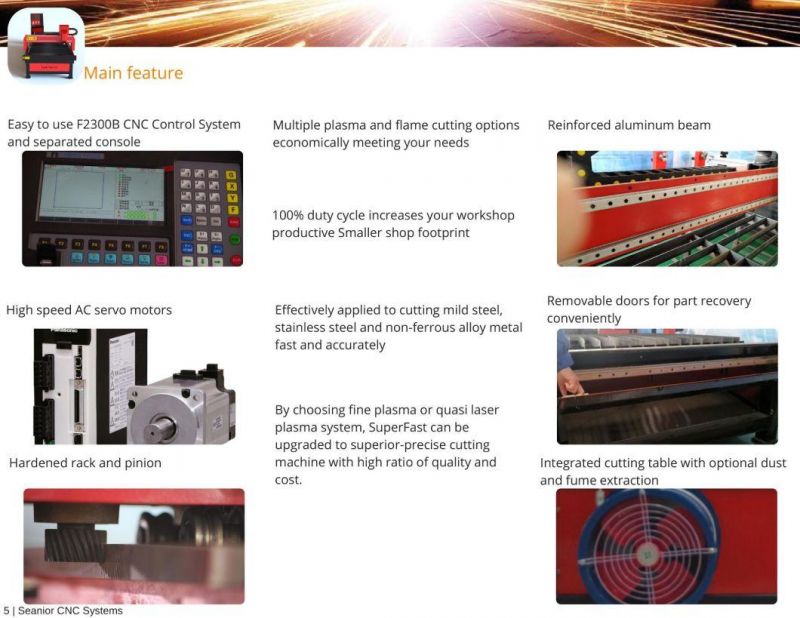

Product Feature:
Low Cost Steel Plate CNC Plasma Cutting Machine
(CNC Plasma Cutting Machine    SuperFast 1530)
Low cost plasma cutting machine | Fast, Accurate, Long work hours


Product Advantages:

Compact construction, SuperFast is your best choice to cut sheet metal at low cost while achieving accurate cutting quality at the same time.

Integrated machine body, sophisticated moving parts and intelligent torch lifter device minimizing non-productive time and guarantee you long period use.

Fast, Accurate, Superior edge quality, SuperFast cutting table provides superior performance and entry-level price.


Low Cost Steel Plate CNC Plasma Cutting Machine


Product Parameters:

Technical itemTechnical parameters
effective cutting width1500mm
effective cutting length3000mm
material thickness0.5-40mm
torch lifter vertical traveling distance≤120mm
cutting precision±0.5mm
cutting speed100-12000mm/min
linear repeating accuracy±0.2 mm
plasma power63A (90/125/160/200A for option)
plasma sourceHuayuan or Hypertherm
duty cycle24h
temperature of the working environment-20~55ºC
material to cutmild steel, stainless steel, alloy, aluminum, copper, titanium and other non-ferrous metal

Machine configuration:

cutting methodplasma cutting
movement rail trackdouble axle linear rail track
movement motor/motion controllerfull digital servo motor/high-precision stepping motor
distance-adjusting systemplasma arc voltage automatic height adjustment
control systemindustrial anti-dust numerical control
general nesting softwarePronest,Starcam,Fastcam
anti-collision system360°anti-collision protection method
elevating bodyball screw / electronic push rod
plasma cutterUSA brand or China HUAYUAN LKG series or Customized
dust and fume extractorfan machine
connecting power sourceplasma power supply AC380V/50HZ,
machine body power supply AC220V/50HZ

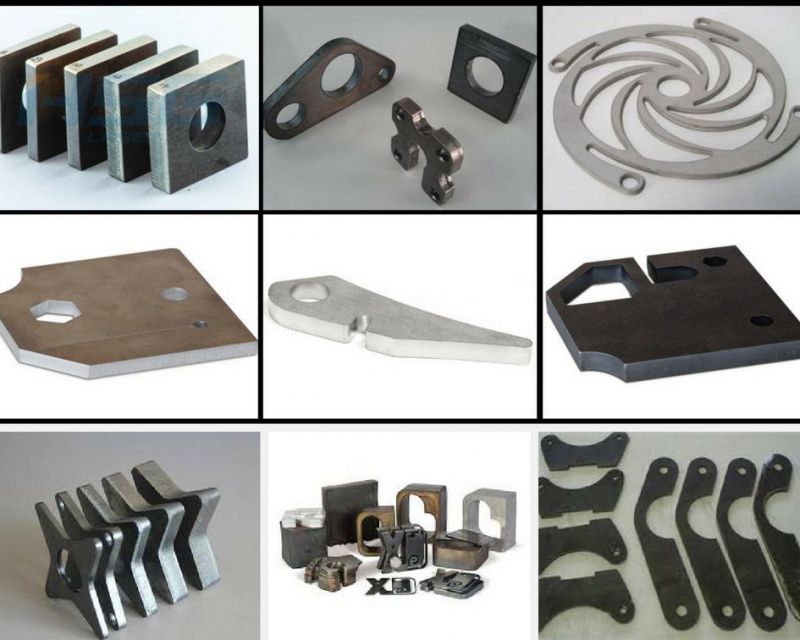

Cutting Sample:

Low Cost Steel Plate CNC Plasma Cutting Machine

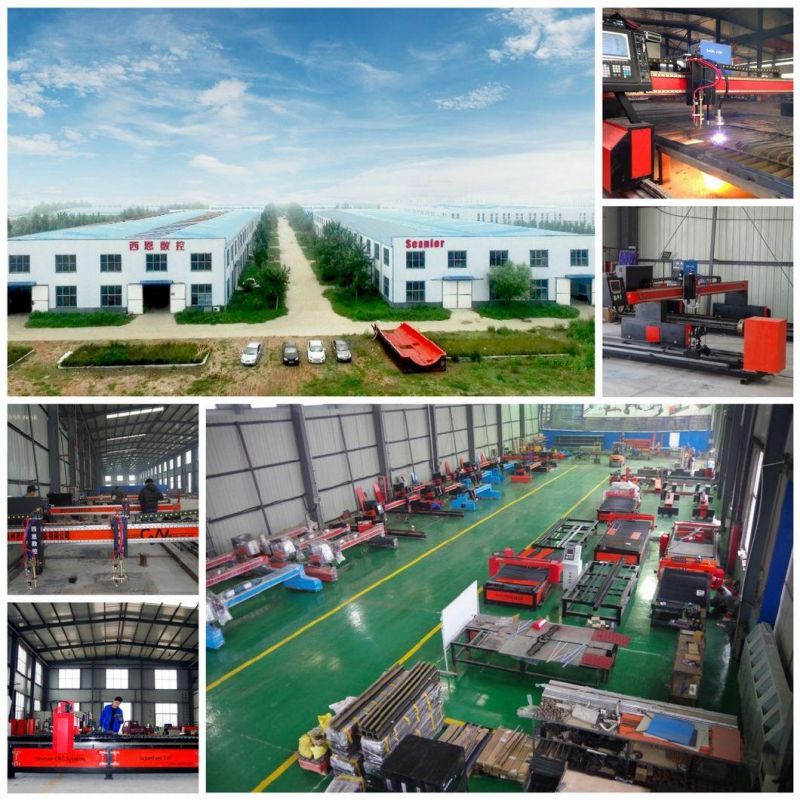

Seanior CNC Systems:

 Seanior CNC Systems manufactures and sells cutting machines, provide services for the metal-working industry, offering complete solutions and focus on customer-driven innovation.
Low Cost Steel Plate CNC Plasma Cutting Machine

Why you Choose Seanior CNC Systems?

Our technical team is your excellent cutting performance guarantee and our perfect service plan solve all your problems.


1. 12 months warranty for the whole machine.

2. Technical support by phone, email 24/7.

3. English version manual and operation tutorial video.

4. Engineer available to service machinery overseas.

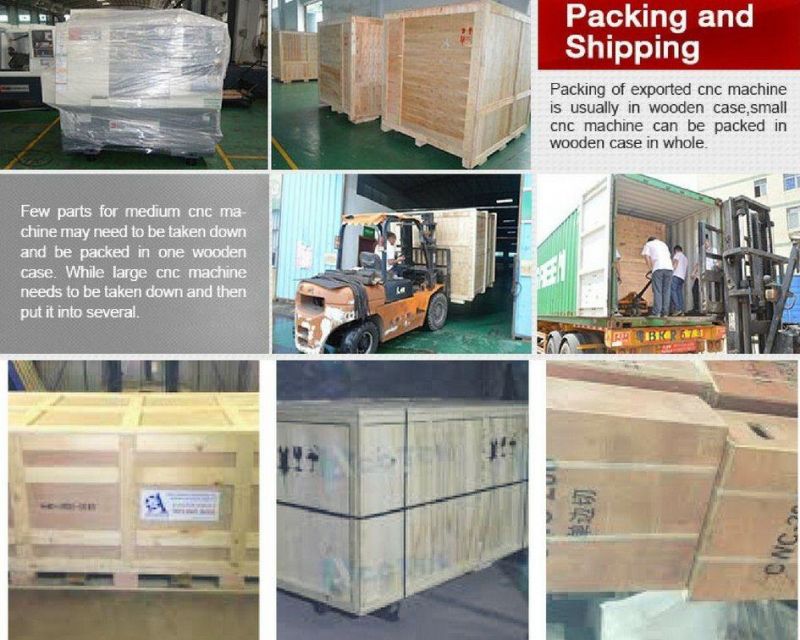

Packing & Delivery:

Packing Details: wooden case, standard export packing

                      1.Outside package:Standard marine export plywood cases for table.

                      2.Inner package:Stretch film and plastic film for humidity.

                      3.We can package according to your requests.


Low Cost Steel Plate CNC Plasma Cutting Machine
