• Model NO.：GBG
• Expanding Medium：Emulsified Liquid
• Forming Speed：5-10 Seconds Per Convolution
• Wall Thickness：0.3-0.8mm
• Pitch Distance：9-30mm
• Transport Package：Standard Sea Package for Flexible Metallic Hose Ma
• Specification：SGS, ISO
• Trademark：HLT
• Origin：Jiangsu, Wuxi
• HS Code：844790900
• Production Capacity：15 Sets Per Year

Basic Info.

Model NO. GBG Expanding Medium Emulsified Liquid Forming Speed 5-10 Seconds Per Convolution Wall Thickness 0.3-0.8mm Pitch Distance 9-30mm Transport Package Standard Sea Package for Flexible Metallic Hose Ma Specification SGS, ISO Trademark HLT Origin Jiangsu, Wuxi HS Code 844790900 Production Capacity 15 Sets Per Year

Product Description

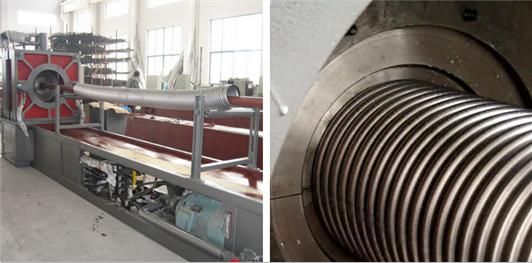

flexible metallic hose making machine1. Product description of flexible metallic hose making machine
*Diameter: DN50-300mm
*No. of layers: single or double layers
*Type of the bellows: annular bellows
*Applications: for auto exhaust bellows, flexible metal hoses, and expansion joints
*Control: PLC control
*Length: ≤7500mm
*Expanding medium: emulsified liquid
*Forming speed:5-10seconds per convolution
2. Technical data of flexible metallic hose making machine

DN	Actual ID	Wall thickness	Width of strips	Height of convolution	Pitch distance(mm)
DN50	Φ50	0.30	158	9	9
DN65	Φ65	0.30	205	12	12
DN80	Φ79.85	0.40	252	15	15
DN100	Φ99.80	0.50	315	17	18
DN125	Φ124.88	0.60	394	21	19
DN150	Φ150	0.60	473	23	20
DN200	Φ199.84	0.80	630	25	22
DN250	Φ249.84	0.80	787	30	25
DN300	Φ299.84	0.80	944	35	30

3. Main features

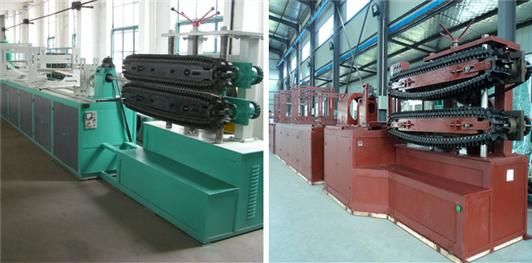

DN32-125mm Hydraulic forming machine          DN50-300 Hydraulic forming machine
Size range:DN32-DN150                                                       Size range:DN50-DN300
Wall thickness:0.3-0.6mm                                                    Wall thickness:0.3-0.8mm
Width of strip:100-471mm                                                   Width of strip:158-944mm
Height of convolution:7-15mm                                            Height of convolution:9-35mm
Pitch distance:5-15mm                                                          Pitch distance:9-30mm


DN16-25 Hydraulic forming machine                   DN50-300mm Tube mill machine
Size range:DN12-DN150                                                      Size range:DN50-DN300
Wall thickness:0.15-0.35mm                                              Wall thickness:0.3-0.8mm
Control: Inverter control                                                     Control: Inverter control
Welding speed: 250m/hour                                                Welding speed: 250m/hour
Tube length: No limited                                                       Tube length: No limited

Production detail
4. Related products

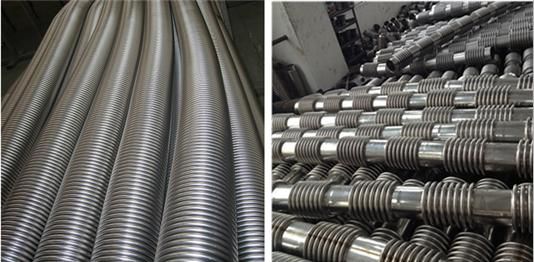

                                                  Flexible metal hose/bellow

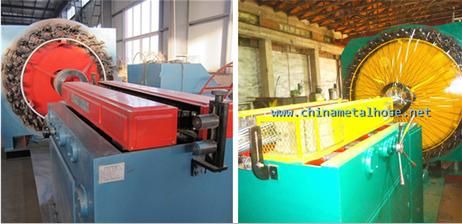

5. Related machineWire braiding machine
6. FAQ for flexible metallic hose making machine
Q: Why choose us for metal hose forming machine?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience
Q: What size can you make?
A: All the sizes from DN8 up to DN400 can be made on different machines
Q: How many different types of machine can you make?
A: Hydraulic metal hose forming machine
  a:DN16-65mm   b:DN25-DN100mm   c:DN32-150mm  d:DN50-300mm  e:DN80-400mm
B: Mechanical hose making machine
  DN8-50mm
C:PU/ Elastomer Metal Hose Making Machine
 a:DN12-100   b: DN50-150   c:DN12-65
Q:Can the hose forming machine be used for bellow making?
Yes, all above hose forming machine can be used for bellow making as well

We need to know following information to quote you correct machineries:
1.Size range you want to make
2.The application of the hose you need, for instance, natural gas hose, water hose, air conditional hose, etc..
3.Wall thickness
