Metallic Processing Machinery

Corrugated Steel Pipe Making Machine

Henan Yugong Machinery Co., Ltd.
  • Power of Main Motor:4kw
  • Power of Cutting:2.2kw
  • Power of Water Pump:40W
  • Capacity:23L
  • Internal Diameter:50-135mm
  • Steel Trip:Thickness 0.25-0.3mm

Base Info

  • Bellows Pitch:26.5-28.5mm
  • Speed:2-10m,Min
  • Dimension:1100*800*1360mm
  • Weight:450kg
  • Transport Package:Wooden Case
  • Specification:corrugated pipe making machine
  • Trademark:YUGONG
  • Origin:China
  • HS Code:8479109000
  • Production Capacity:1000 Set,Month

Description

Basic Info.

Bellows Pitch 26.5-28.5mm Speed 2-10m/Min Dimension 1100*800*1360mm Weight 450kg Transport Package Wooden Case Specification corrugated pipe making machine Trademark YUGONG Origin China HS Code 8479109000 Production Capacity 1000 Set/Month

Product Description

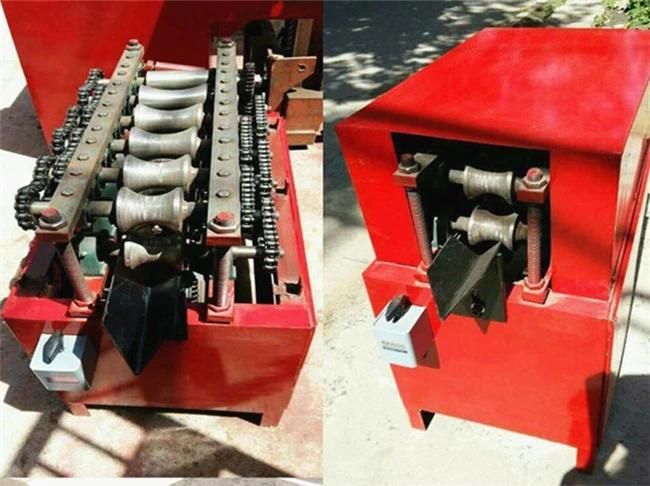

Description of Corrugated pipe machine

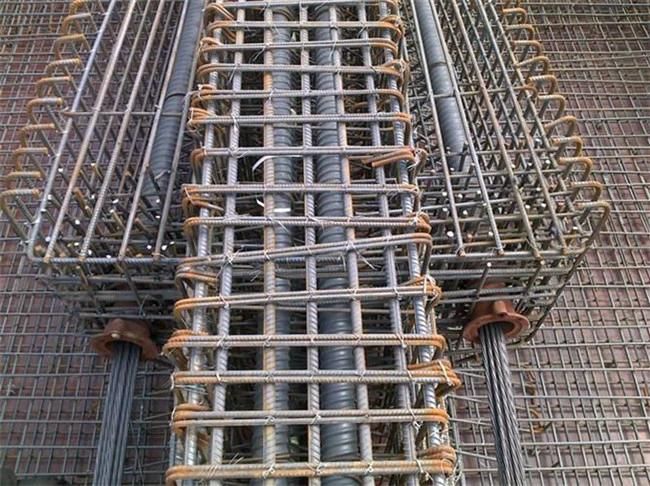

CS-135 prestressing corrugated pipe machine is a equipment to produce metal bellows which are used for the pre-arranged holes in prestressing concrete.It makes galvanized or cold rolled steel strip (black belt) into double waveform,then undercut and swage into orrugated pipe.It is widely used in highway bridges, railway bridges, construction of water conservancy, electricity and other national major projects.
Process:

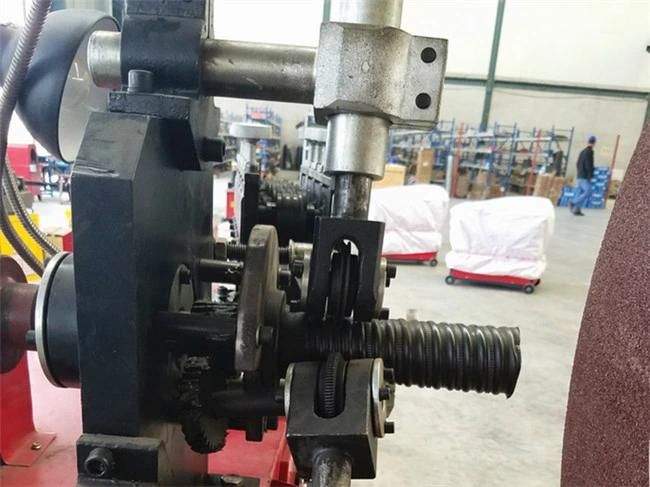

Raw material (steel trip)---purge tank---Conduction frame---contoured roll---Winding head---undercut---pipe formation---cutting
Prestressed corrugated pipe is mainly divided into metal corrugated pipe and plastic corrugated pipe.
Thickness of the steel trip:0.25mm
Internal Diameter φ 50mm  φ60mm  φ70mm  φ80mm  φ90mm
Corrugated Steel Pipe Making Machine
Corrugated Steel Pipe Making Machine
Corrugated Steel Pipe Making Machine

Feature of Corrugated pipe machine
  1. The pitch is 26.5 ~ 28.5mm, the material is saved, and the rate is high.
  2. Fast speed, stepless speed regulation motor.
  3. asy to operate and maintain.
  4. Power saving,0.7kwh/100m for Ф70 pipe.
  5. Durable and long life.No overhaul within two hundred thousand meters.
Technical parameter of  Corrugated pipe machine
ModelCS-135
MotorYCT180-4A
Power of main motor4kw
Power of cutting2.2kw
Power of water pump40w
Capacity 23L
Internal Diameter 50-135mm,140-305mm
Steel tripThickness 0.25-0.3mm,width 36mm
Bellows pitch26.5-28.5mm
Speed2-10m/min
Dimension1100*800*1360mm
Weight450kg
Our services
1.Any inquiries will be replied within 12 hours.
2.Professional manufacturer, Welcome to visit our factory at any time.
3.High quality, fashion designs, reasonable & competitive price and fast lead time.
4. Protection of your sales area, ideas of design and all your private information.
5.Shipping:We have strong cooperation with DHL, TNT, UPS, FedEx, EMS, China air post.You also can choose your own shipping forwarder.


Company Information
Henan Yugong Machinery Co., Ltd. is a large machinery manufacturing enterprise which focuses on research and development, production and sales of mining, tunnel construction, road and bridge construction equipments and so on.
We believes that good quality can give us survival, thus we only provide you top products. All the products with high quality meet international standards and are highly estimated by all clients at home and abroad.
All the staff in our company are professionally trained, so we can recommend you the most appropriate equipment. Every machine will be strictly examined before delivery.

packaging &shipping

1. Packaging: 1)Wrapped by proctective film;
                         2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping:    By logistics; by automobile; by train; by shipping; by air etc.
