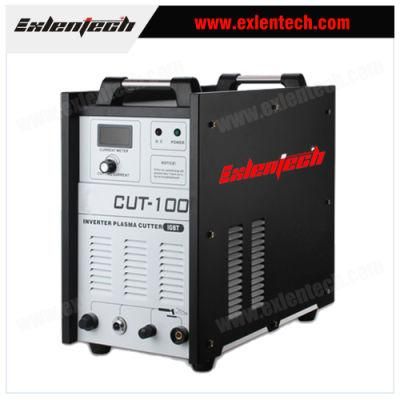

DC Inverter Air Plasma Cutting Machine Cut--100
Shenzhen Exlentech Welding Equipments Co., Ltd.- Customized:Customized
- Layout:Hand Operate
- Cutting Material:Carbon Steel, Iron, Metal Alloy
- Automatic Grade:Manual
- Power Source:Electric
- Cutting Mode:Plasma Cutting
Base Info
- Model NO.:cut--100
- Name:Plasma Cutting Machine
- IGBT:2PCS 75A Module IGBT
- Diodes:3PCS 200A Module Diodes
- Weight:30kg
- Transport Package:Carton
- Specification:562x303x467mm
- Trademark:As required
- Origin:Shenzhen China
- HS Code:84569010
- Production Capacity:3000PCS,Month
Description
Basic Info.
Model NO. cut--100 Name Plasma Cutting Machine IGBT 2PCS 75A Module IGBT Diodes 3PCS 200A Module Diodes Weight 30kg Transport Package Carton Specification 562x303x467mm Trademark As required Origin Shenzhen China HS Code 84569010 Production Capacity 3000PCS/MonthProduct Description
Plasma cutting machine product Characteristics:*Adjustable cutting current,satisfy different requirement of material,thickness,cutting speed.esthetic cutting area.
*Plasma cutting machine can be used to cut carbon steel,stainless steel,galvanized steel,copper,aluminum etc.
*Buildin default phase protection,over and low voltage protection,over heat protection,and low pressure of compressed air protection etc,make the machine work reliably.
*Plasma cutting machine easy to operate, flat,smooth cutting area.
Model | CUT-100 |
Input power Voltage Frequency(V,Hz): | AC380(three phase)±15%,50/60 |
Rated input power capacity(KVA): | 15 |
No-load voltage(V): | 268 |
Output current range.(A): | 20-100 |
Rated output voltage(V): | 120 |
Duty cycle (%)(25ºC): | 60 |
No-load loss(w): | 60 |
Arc-starting: | touch |
Efficiency(%): | 85 |
Power factor (COSφ): | 0.93 |
Insulation class: | F |
Weight(KG): | 38 |
Overall dimension(mm): | 562×303×467 |
Case protection degree: | IP21S |
Air compressor displacement(S): | 0.36 |
Max cutting thickness(mm): | 40 |
