• Model NO.：HF-40KW
• Working Voltage：220V,380V,415V,440V,480V
• Input Current：40A
• Working Duty：100%
• Material Workpiece：All Metal
• Heating Temperature：1200c
• Working Diamater：10-30mm

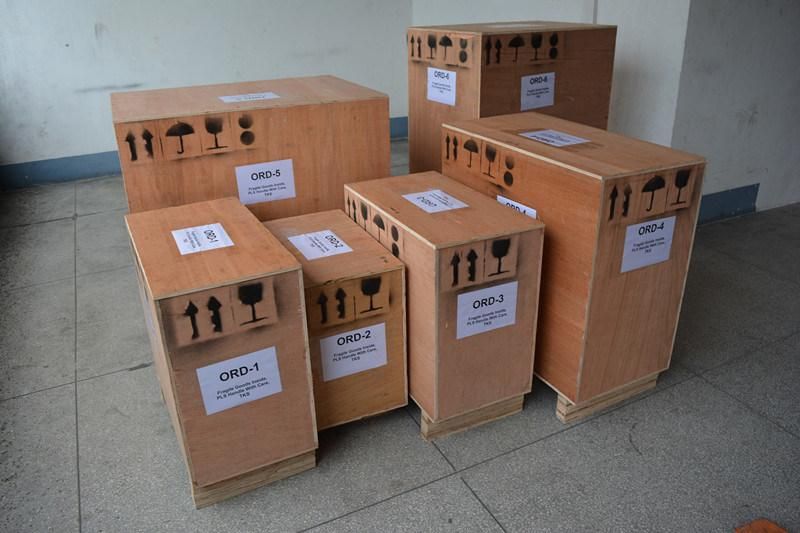

• Transport Package：Wooden Box
• Specification：CE, SGS, ISO
• Trademark：ORD
• Origin：China
• HS Code：8514400090
• Production Capacity：10, 000sets

Basic Info.

Model NO. HF-40KW Working Voltage 220V,380V,415V,440V,480V Input Current 40A Working Duty 100% Material Workpiece All Metal Heating Temperature 1200c Working Diamater 10-30mm Transport Package Wooden Box Specification CE, SGS, ISO Trademark ORD Origin China HS Code 8514400090 Production Capacity 10, 000sets

Product Description

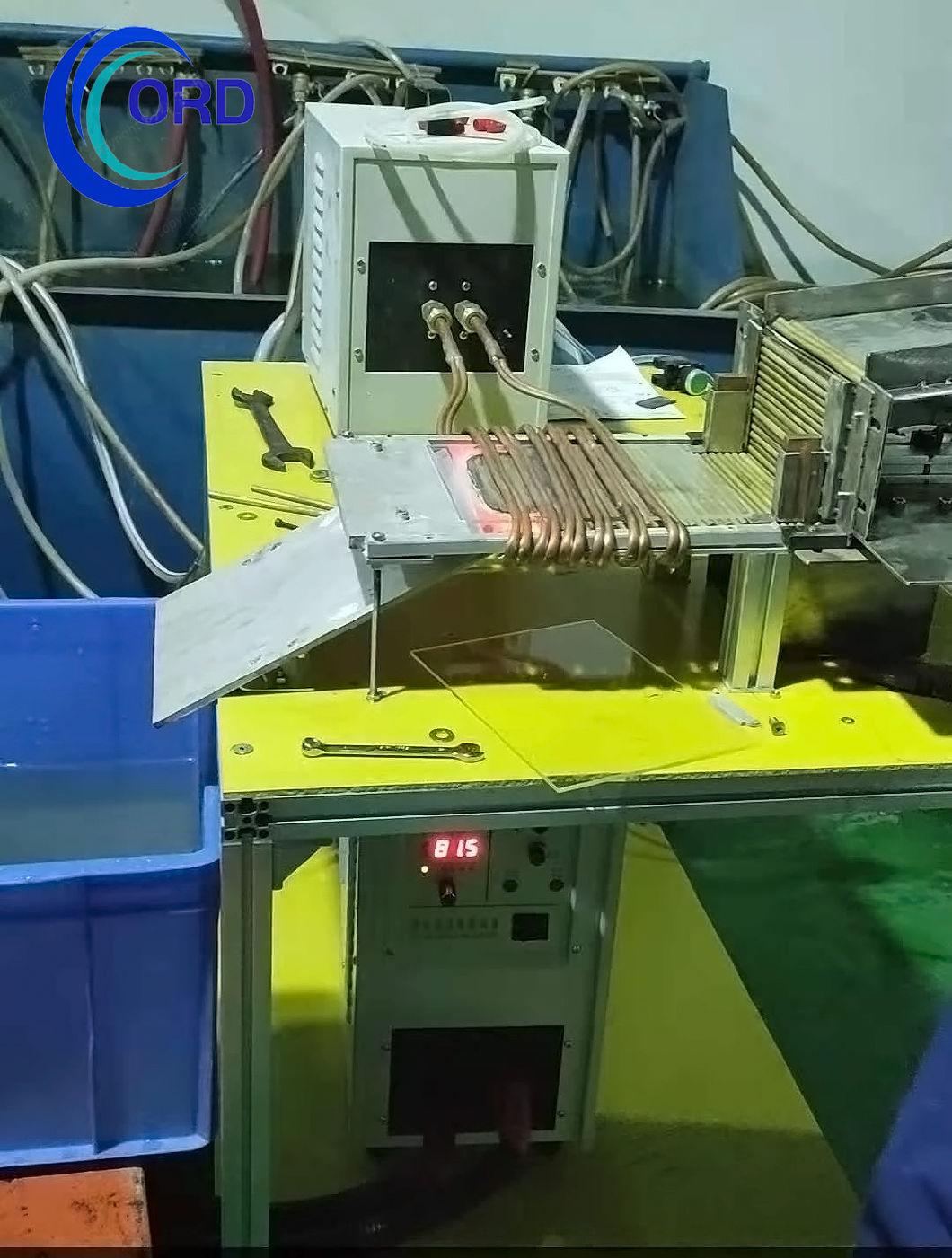

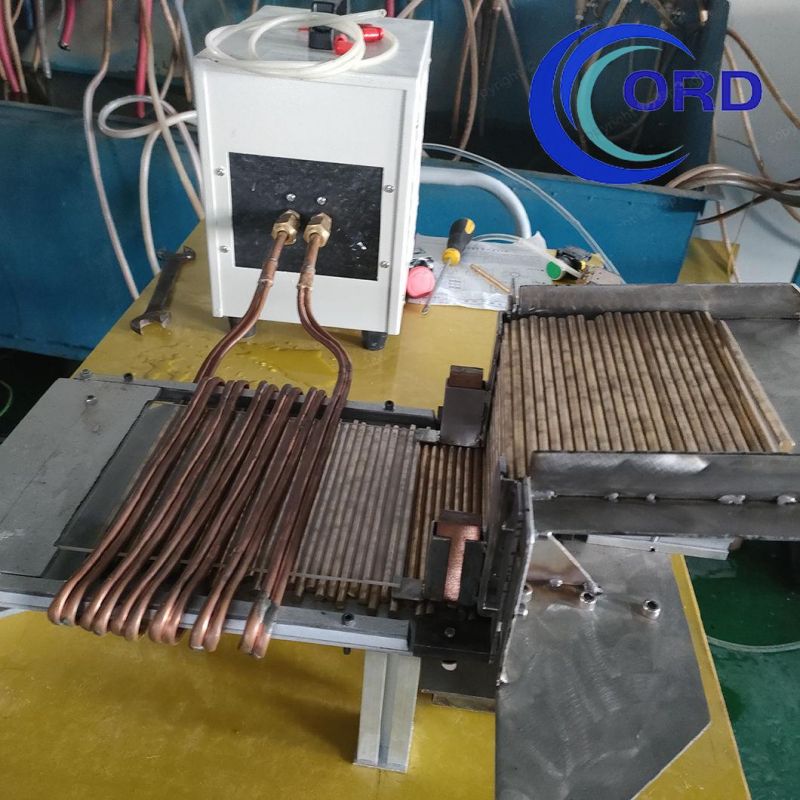

China factory direct supply IGBT High frequency induction hot forging heating machine for hammering the steel bar, rod and copper bar (HF-40KW)




Advantage:

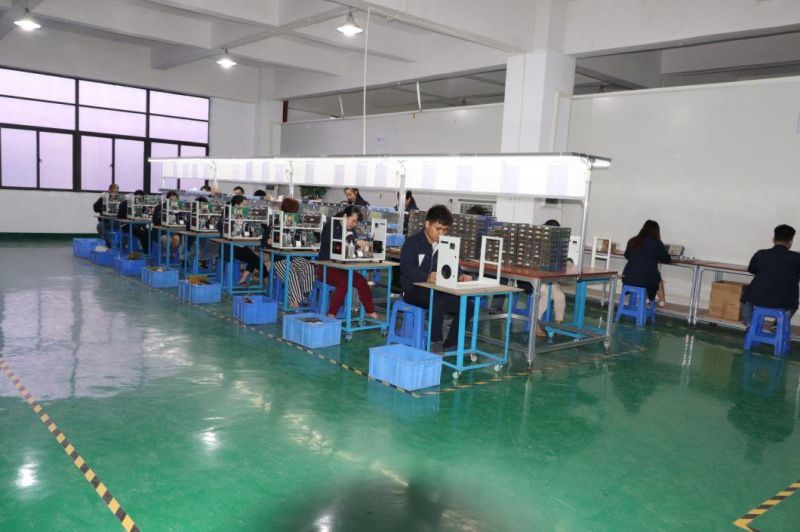

1 More than 21years experience,stable and goods performance
2 CE certificated
3 Copperated with Chow TAI FOOK , Matsushita,Foxconn, Media, Gree a6nd ZHIGAO Air conditioner.

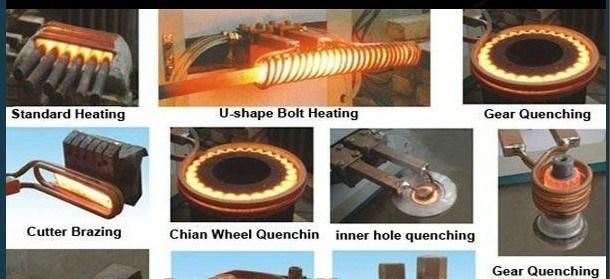

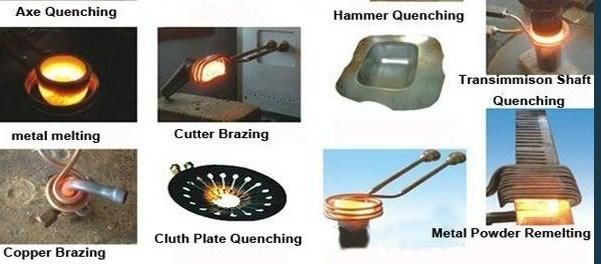

4 Suitable  for a large range, heating, quenching, forging, melting, solding and so on.

Main characteristics:
1 Siemens IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2 100% Duty cycle, continuous working is allowed at maximum power output.
3Display of heating power and heating current and oscillating frequency;
4 Simple to install, Installation can be done by unprofessional person very easily;
5 Light weight
6 Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;
7 Constant current or constant power status can be selected accordingly to achieve higher heating efficiency;

Type	HF-40AB
Work Power	3*380v/415v/440v/480v  50-60hz
The range of operating voltage	340-430V AC
Output power	40KW
Input current	40A
Fluctuating frequency	30-80khz
Timing (Heat time,Retain time,Cool time)	1-99S
The flow rate of cooling water	0.15 Mpa 10L/Min
Water temperature protection point	40centidegree
Duty cycle	100% (40degree room temperature)
Weight	Mainparts:42Kg    Transformer:32kg
Size	Main Parts: Main Parts:640*280*550mm Transformer: 510*260*410mm

Warranty time: 18months from the date of delivering, 12 months from the date of receiving

Delivery time: 1-2 Work days if have goods in stock, generally speaking have such goods in our stocks
