• Model NO.：ET-6090
• Warranty：12 Months
• Customized：Customized
• Condition：New
• Precision：0.1mm
• Control System：DSP Control System
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Square Linear Rail：Tbi
• Working Area：600*900*300mm
• Drive Motor：Syntec Servo System
• X/Y/Z Structure：Xy Axis Rack,Z Axis Screw
• Working Power：220V
• Electrical Parts：France Schneider
• Moter：Step Moter
• Guiding System：Square Guide Rail
• Driving System：Stepper Driver and Motor
• Spindle Power：3kw Water Cooling Spindle
• 3kw Water Cooling Spindle：600kg
• Transport Package：Wooden Case
• Specification：600*900*1100mm
• Trademark：ET
• Origin：China, Shandong, Weifang
• HS Code：8461500090
• Production Capacity：10000

Basic Info.

Model NO. ET-6090 Warranty 12 Months Customized Customized Condition New Precision 0.1mm Control System DSP Control System After-Sales Service Provided Engineers Available to Service Machinery Overseas Square Linear Rail Tbi Working Area 600*900*300mm Drive Motor Syntec Servo System X/Y/Z Structure Xy Axis Rack,Z Axis Screw Working Power 220V Electrical Parts France Schneider Moter Step Moter Guiding System Square Guide Rail Driving System Stepper Driver and Motor Spindle Power 3kw Water Cooling Spindle 3kw Water Cooling Spindle 600kg Transport Package Wooden Case Specification 600*900*1100mm Trademark ET Origin China, Shandong, Weifang HS Code 8461500090 Production Capacity 10000

Product Description

Automatic cnc engraving router woodworking machines

Metal cnc router machine are computer-controlled machines used for cutting a wide variety of materials. The path of the machine is directed by computer numerical control to give you the precision and accuracy you need from every cut. Whether you have an industrial application, a home or starter business, or even a hobby that requires specific cuts, CNC routers are the perfect solution to give you the best possible finished product.

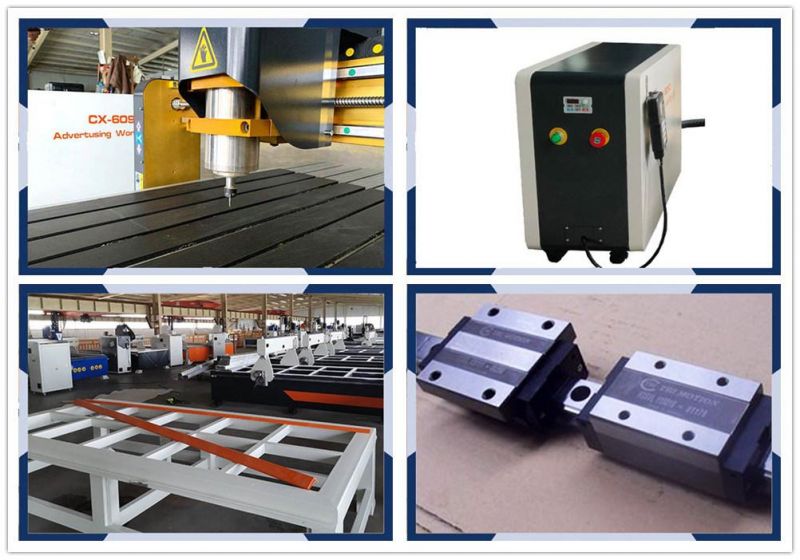

1.Eterne use 2.2KW water cooling spindle with 24000RPM, large Torque
2.Imported DSP control system, connected with computer, easy to operate.
3.The whole machine body is welded by seamless steel structure, tempering and aging treatment, with strong rigidity and no deformation.
4.Taiwan TBI linear square guide, double row of four row ball slide block, heavy load bearing, smooth operation, high precision, long life,double screw with high precision and precision cutting.

Model	ET-CX1325
Lathe bed	Self designed industrial design bed
Guide	Vertical rail
Effective machining stroke of X axis	1300mm
Effective machining stroke of Y axis	2500mm
Z axis stroke	220mm
Bed structure	Thick wall square pipe welding
Platform size	2400*3400mm
Maximum operating speed	50m/min
Maximum carving speed	30m/min(based on material and carving depth)
Repeated positioning accuracy	±0.05mm
Carving instruction	G code
Working voltage	380V/50HZ
Spindle speed	0-24000rpm/min
Plate fixing method	Vacuum adsorption double deck
Transmission mode	X / Y-axis high precision helical gear transmission, z-axis lead screw
Guide	Taiwan 25 straight track
Operation mode	Gemicom high precision servo
Frequency converter	Zhongchen frequency converter
Reducer	Taiwan high precision reducer
Driving system	Gemicom servo
Control system	Shanlong industrial control system
Principal axis	HQD6.0KW*2,4.5KW*2(optional)
Tool magazine capacity	4
Maximum tool holding handle diameter	12.7mm
Automatic location	Standard automatic positioning function
Vacuum pump	Water type 7.5kw
Accessory accessories	Tool wrench, etc
Pusher device	Automatic pushing + secondary dedusting

Shandong Eterne Machinery Co.,Ltd. is a manufacturer based on woodworking machinery and equipment with high-tech products as direction. Our main products are edge banding machine, woodworking engraving ATC CNC router machine, metal engraving machine, drill row and so on.

The head company"Wanfa Machinery" has more than 30 years of mechanical production experience, it covers 16,000 square meters, has a complete testing and experimental equipment, the application of leading software design and development products, has an excellent research and development environment. The research and development capabilities of new products have always been in the leading position.

The products have always maintained the market position of high technical grade, good quality performance and reasonable cost performance. ET machienry had been exported to many countries of the world such as America, Russia, Indonesia, Uzbekistan, Algeria, Mongolia etc more than 20 countries.

terne people make full use of technology and brand advantages, established a developed sales network throughout China, at the same time we established a good after-sales service network, can provide customers with quality technical advice and installation and maintenance services.

Q1: Are you a manufacturer or trading company?
      A: We are a manufacturer since 2003. We are dedicated to woodworking machinery manufacturing.

Q2: Where is the nearest airport and port from your factory?
      A: The nearest airport and port is Qingdao/Jinan international airport.

Q3: How can I get an accurate price?
 Kindly send us the picture of furniture you want to produceand and the working size.
 Or detailed machine functions you need, electricity voltage, Hz.

Q4: How is your after sales service?
Our sales are online for 24-hours. We can also supply overseas install service. Also we have more than 10 countries warehouse and department.

Q5: How long is the delivery time?
 Generally 7 ~ 15 days.

Q6: Can I get a machine according to my own requirements?
Sure.We accept OEM and ODM

Q7: If my machine is broken. Can you repair it for me?
 Yes. Our machine is with top quality, if any problem, We have free traning and conduction online. If there is big trouble within warranty time, we will send you new parts and repair.

Q8: How is the quality of your machine?
Our machine adopts heavy lathe bed, and each part is processed by CNC machining center, which greatly improves the accuracy of machine operation.

Q9: What's your MOQ and delivery?
 1 set by LCL. 3~9 sets by container
