• Model NO.：SJ644
• Production Capacity：1000pieces Year

Basic Info.

Model NO. SJ644 Production Capacity 1000pieces Year

Product Description

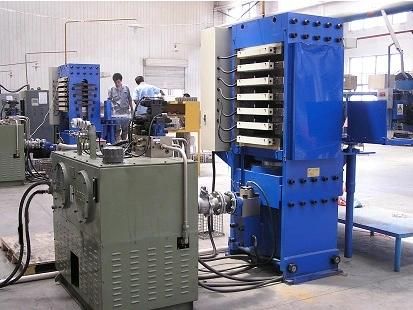

SJ644 6-PLAYER AUTOMATIC HEAT PRESSING MACHINE





1. Usage
   Used for heat pressing and forming disc brake pads.
2. Features
  Non-leakage hydraulic system, DNC controlled with PLC, six-layer mould, High efficiency of hydraulic system     with low working oil temperature and more small size.
3. Main performance parameters
  Pressing moment---4, 000KN
  Rated pressure---25.5 MPa
  Size of mould---600× 600 mm ´ 6 layers
  Heating power---6.0× 7=42 KW
  Motor power---7.5KW; 380V;
  Heating Temperature---≤ 250± 5 C
  Control type---P. L. C
  Speed of main cylinderforward--- 90 mm/s, in working 6 mm/s, back120 mm/s
  Speed working lift---Up70 mm/s, down 90 mm/s
  Dimension---2, 360× 3, 280× 1, 800mm
  Weight---About 9000 kg
